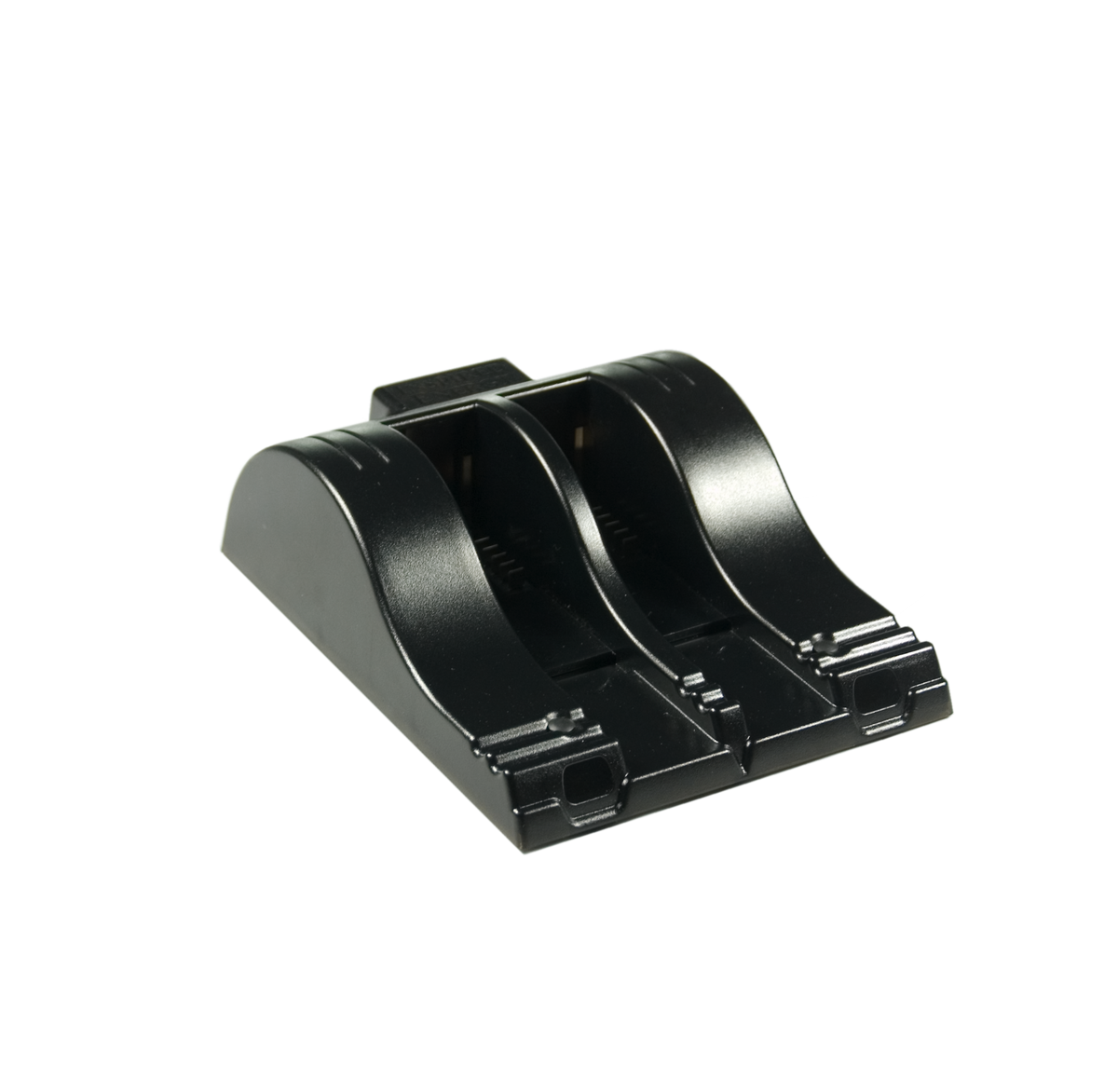

Inspired Energy CH7171 Battery Charger
Part number: CH7171
$341.71
Need selection help, a volume quote or a confirmed delivery date?

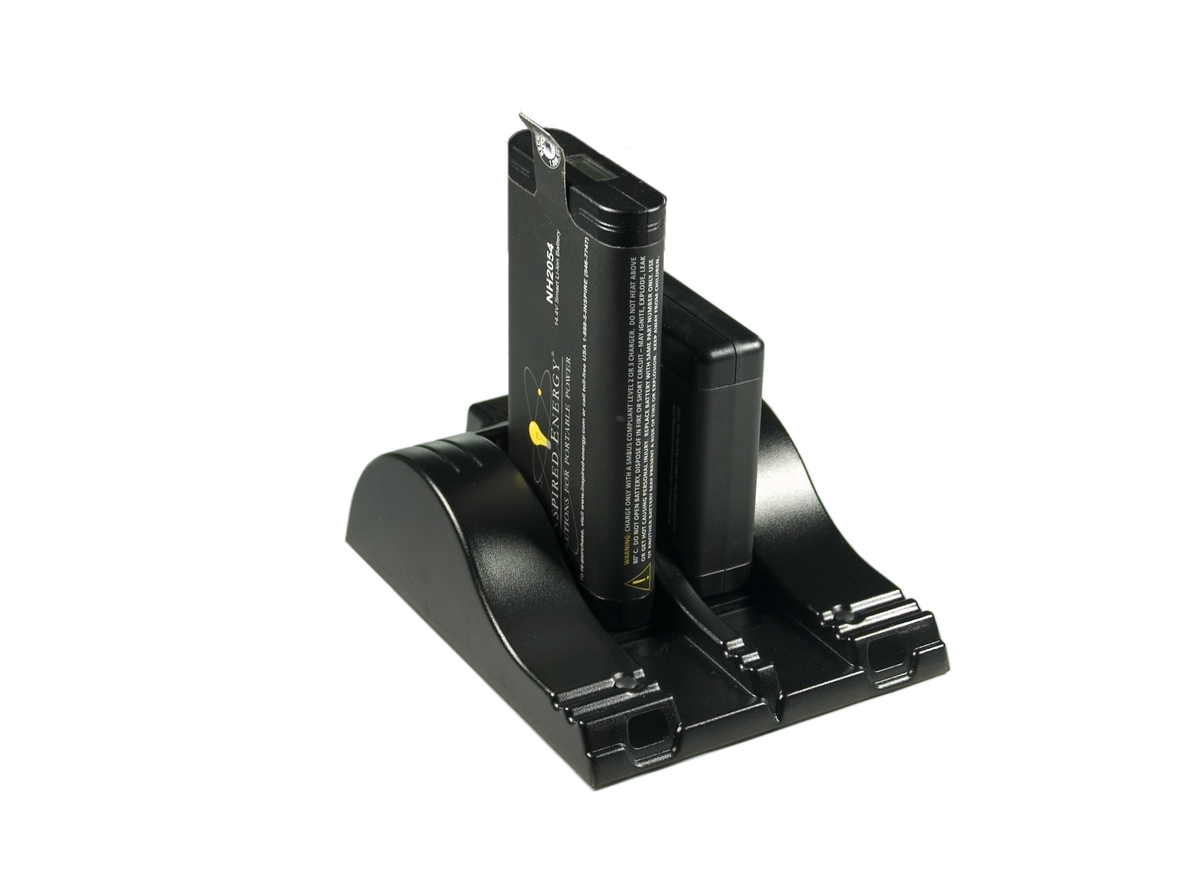

Browse the Inspired Energy finderThe Inspired Energy CH7171 is an SMBus charger for supported N- and R-series packs, with 10–26V DC vehicle input and a universal mains supply.
Specifications
| Dimensions L × W × H (mm) | 180 x 122 x 58 mm |
|---|---|
| Mating Connector | 5-Pin Standard Connector |
| AC Cable | US, EU, UK |
Compatible batteries
Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.
- NB4033HD50
- NB4037HD50
- NB4037QE50
- NC3040HD29
- NC3040QE29
- NC3040QE30
- NC4040HD50
- NC4040QE50
- ND2017A34
- ND2017QE34
- ND2034ED34
- ND2034HD34
- ND2037HD34
- ND2037QE34
- ND2053ED34
- ND2054HD34
- ND2054QE34
- ND2057HD34
- ND2057QE34
- ND3034HD29
- ND3034QE29
- ND3037HD29
- ND3054HD29
- ND3054HD30 — enquire
- ND3054QE30
- NE4068HD50
- NF2030HD34
- NF2030QE34
- NF2040HD34
- NF2040QE34
- NF2047HD34
- NF3040HD29
- NH2054HD34
- NH2057HD34
- NH2057QE34
- NH3054HD34
- NH3054QE34
- NH3057HD34
- NH3057QE34
- Ni2020HD29
- Ni2040ED29
- Ni2040HD29 — enquire
- Ni2040QE29
- Ni3020HD29
- NL2020ED22 — enquire
- NL2054HD22 — enquire
- NL2054HD34
- NL2054QE34
- RH2024HD34
- RH2024QE34
- RH2044HD34
- RH2044QE34
- RH2054HD34
- Ri2050HD29
Data sheets and manufacturer documents
Help selecting and ordering
Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
