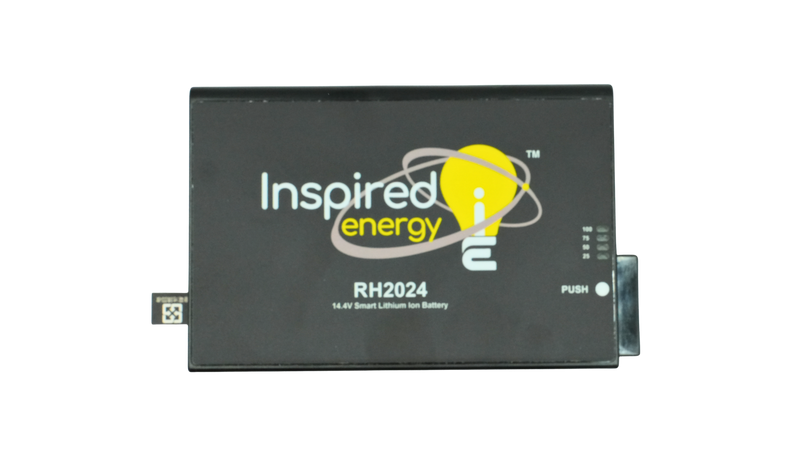

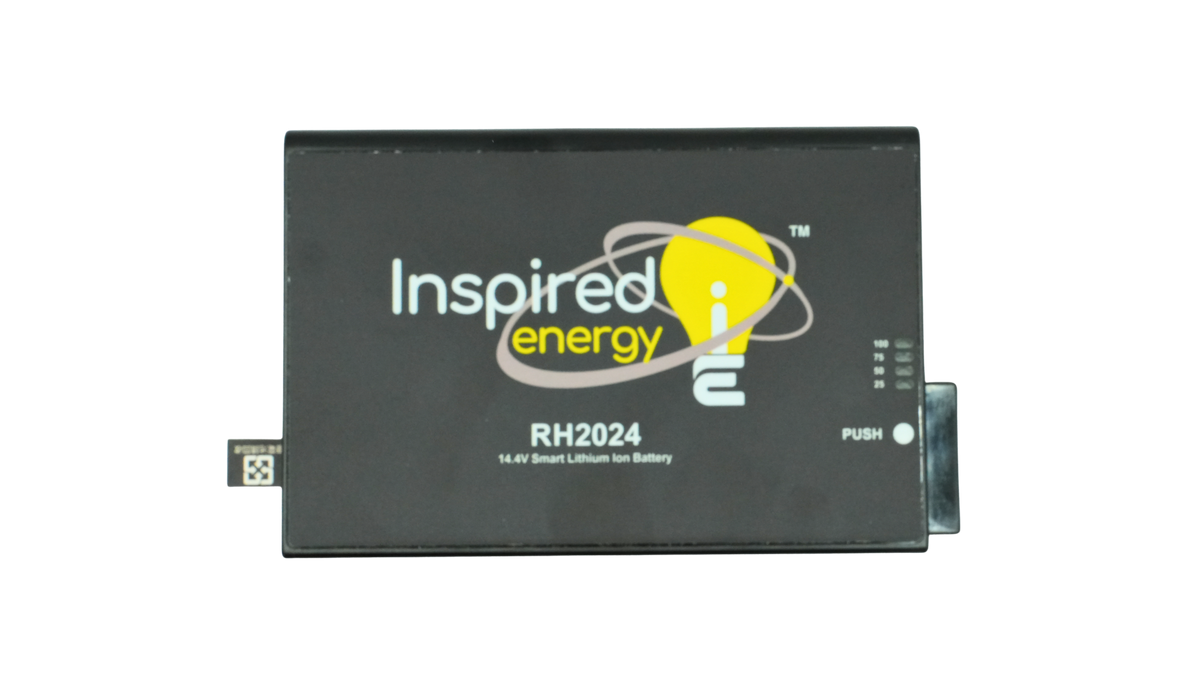

Inspired Energy RH2024QE34 Battery — 14.4V, 6.8Ah

Inspired Energy

Inspired Energy RH2024QE34 Battery — 14.4V, 6.8Ah

Part number: RH2024QE34

$185.04

Need selection help, a volume quote or a confirmed delivery date?

Browse the Inspired Energy finder

The Inspired Energy RH2024QE34 is a 14.4 V rechargeable lithium-ion battery pack rated 6.8 Ah, with 98 Wh of stored energy. Match its AMP 5787422-1 or 5787446-1 connection and physical dimensions to your device before ordering.

Specifications

Voltage 14.4 V
Capacity 6.8 Ah
Current 8 A
Power 80 W
Energy (Wh) 98
Dimensions L × W × H (mm) 167.7 x 107.7 x 21.7 mm
Chemistry / Cell Array 8 Li-ion 18650 cells / 4S2P array
Mating Connector AMP 5787422-1 or 5787446-1
Fuel Gauge Display Push button 4-bar LED
Additional manufacturer replacement references

The manufacturer’s obsolete-model table lists NL2024A22, NL2024HD22, NL2024XR22 as references for this replacement. Confirm the full device configuration before substituting.

Request product information

Compatible chargers

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Compatible accessories and related components

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Data sheets and manufacturer documents
Help selecting and ordering

Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
