Inspired Energy CH1000CAL Storage & Calibration Unit
Part number: CH1000CAL
$159.84
Need selection help, a volume quote or a confirmed delivery date?

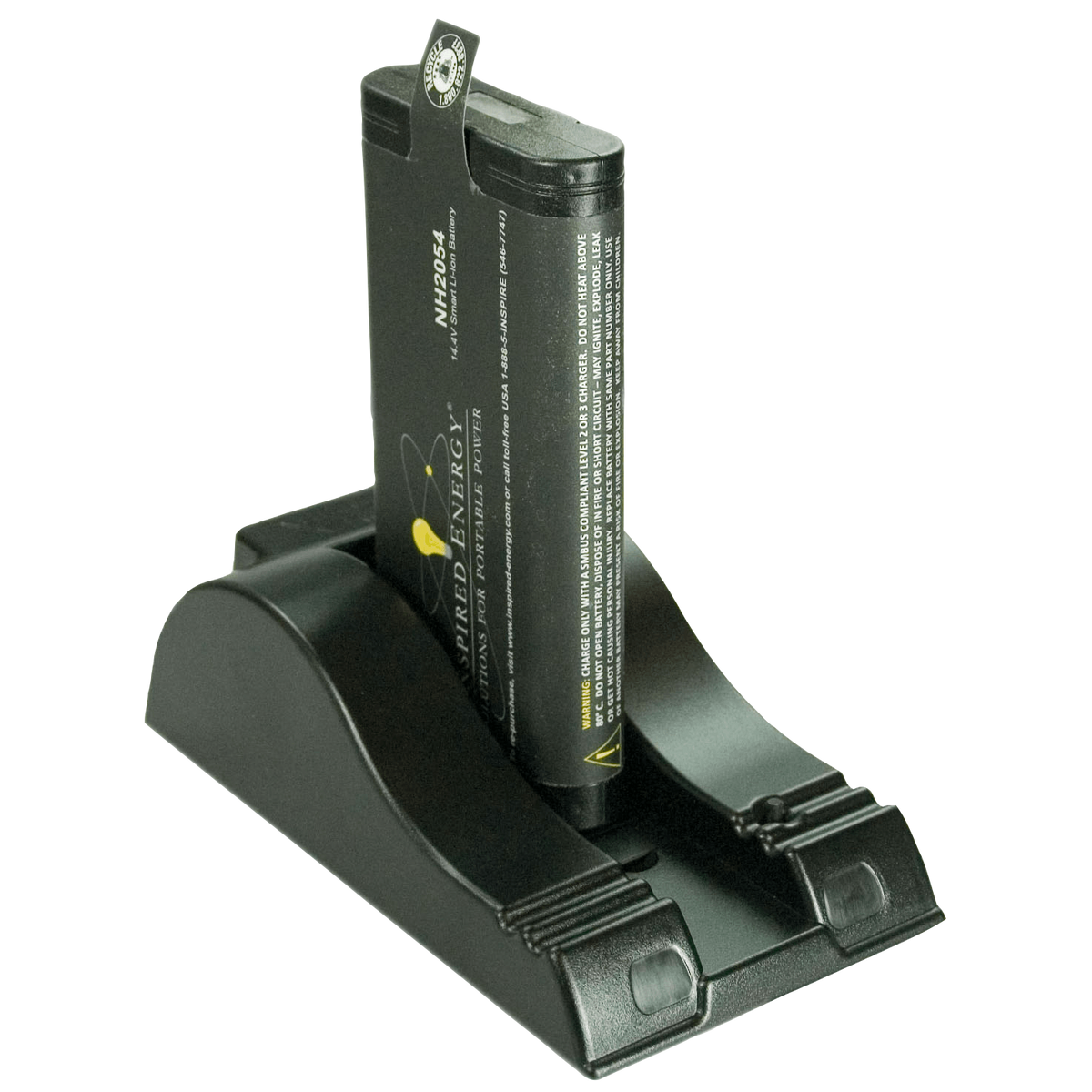

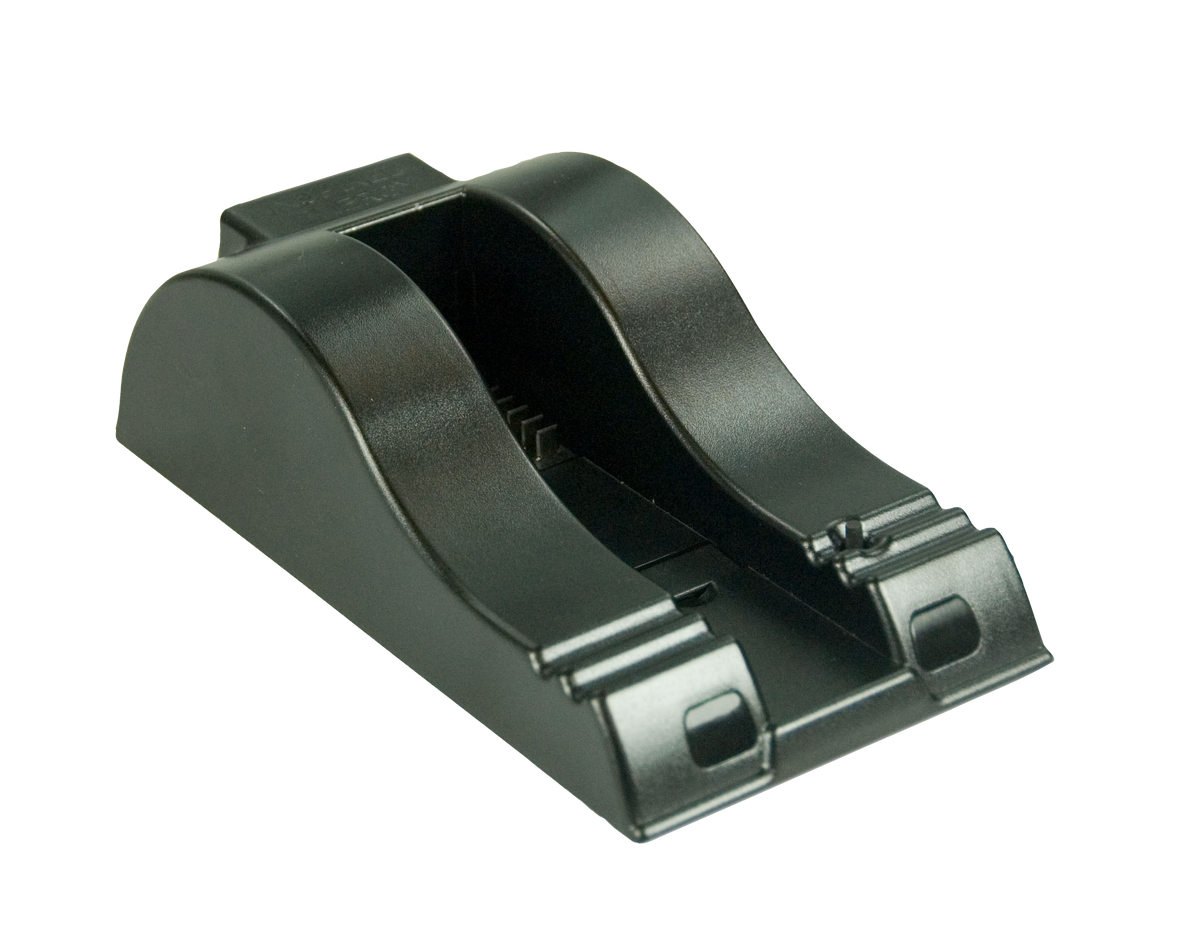

Browse the Inspired Energy finderThe Inspired Energy CH1000CAL is a desktop SMBus unit for setting supported N- and R-series batteries to 25% state of charge for storage or shipment preparation. A full recalibration cycle is also supported. This version is not intended for routine full charging; choose the corresponding standard charger for that purpose.
Specifications
| Dimensions L × W × H (in) | 7" X 3.5" X 2.25" |
|---|---|
| Dimensions L × W × H (mm) | 180mm X 92mm X 58mm |
| Mating Connector | 5-Pin Standard Connector |
| AC Cable | North America, Europe or United Kingdom; confirm mains cord configuration |
Compatible batteries
Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.
- NB4033HD50
- NB4037HD50
- NB4037QE50
- NC3040HD29
- NC3040QE29
- NC3040QE30
- NC4040HD50
- NC4040QE50
- ND2017A34
- ND2017QE34
- ND2034HD34
- ND2037HD34
- ND2037QE34
- ND2053ED34
- ND2054HD34
- ND2054QE34
- ND2057HD34
- ND2057QE34
- ND3034HD29
- ND3034QE29
- ND3054HD29
- ND3054HD30 — enquire
- ND3054QE30
- ND4054HD50
- ND4054QE50
- ND4057HD50
- NE4068HD50
- NE4068QE50
- NF2030HD34
- NF2030QE34
- NF2040HD34
- NF2040QE34
- NF2047HD34
- NF3040HD29
- NF3040QE34
- NH2054HD34
- NH2057HD34
- NH2057QE34
- NH3054HD34
- NH3054QE34
- NH3057HD34
- NH3057QE34
- Ni2020HD29
- Ni2040ED29
- Ni2040HD29 — enquire
- Ni2040QE29
- Ni3020HD29
- NL2020ED22 — enquire
- NL2054HD22 — enquire
- NL2054HD34
- NL2054QE34
- RH2024HD34
- RH2024QE34
- RH2044HD34
- RH2044QE34
- RH2054HD34
- Ri2050HD29
For routine full charging, review CH1000.
Data sheets and manufacturer documents
Help selecting and ordering
Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
