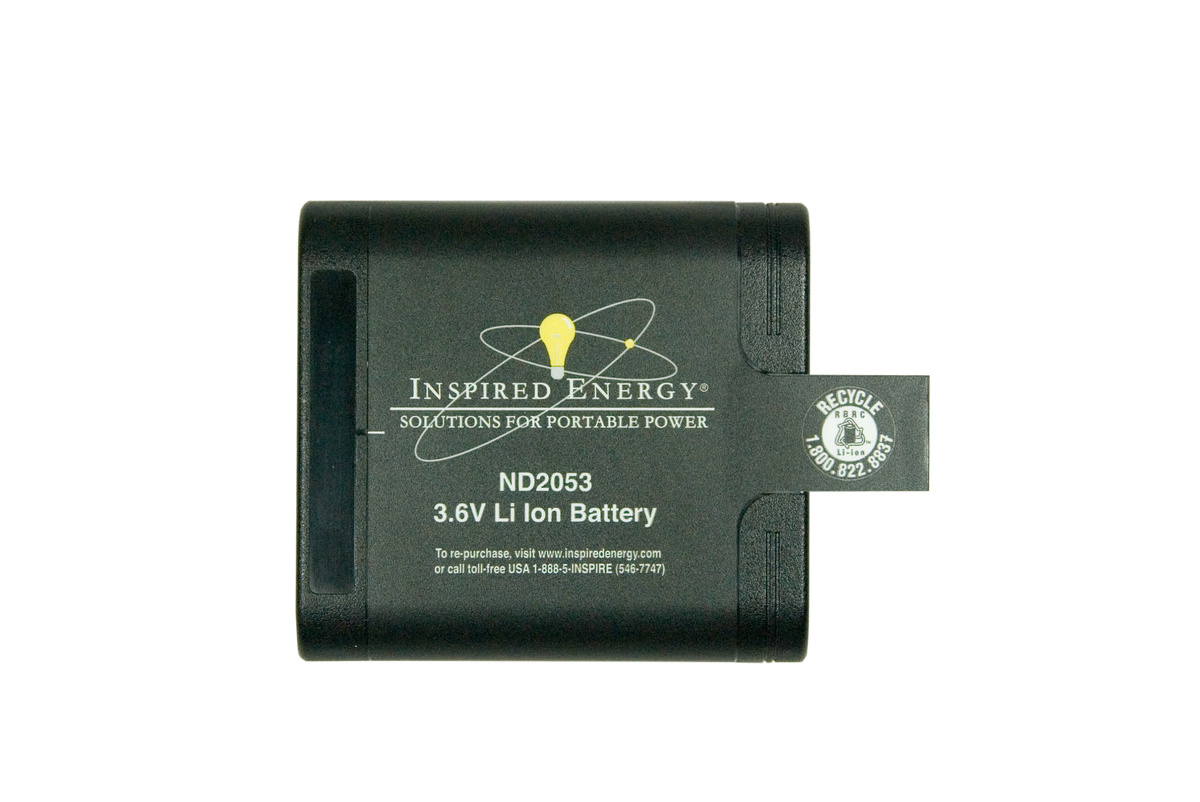

Inspired Energy ND2053ED34 Battery — 3.6V, 13.6Ah

Inspired Energy

Inspired Energy ND2053ED34 Battery — 3.6V, 13.6Ah

Part number: ND2053ED34

$127.85

Need selection help, a volume quote or a confirmed delivery date?

Browse the Inspired Energy finder

The Inspired Energy ND2053ED34 is a 3.6 V rechargeable lithium-ion battery pack rated 13.6 Ah, with 49 Wh of stored energy. Match its AMP P/N 5787422-1 or 5787446-1 connection and physical dimensions to your device before ordering.

Specifications

Dimensions L × W × H (in) 3.4" X 3.1" X 0.91"
Dimensions L × W × H (mm) 86.4mm X 78.7mm X 23.02mm
Energy (Wh) 49
Shape Square
Chemistry / Cell Array 4 Li-ion 18650 cells / 1S4P array
Equivalent Lithium Content ≤4g
Mating Connector AMP P/N 5787422-1 or 5787446-1
Cavity Size 23.5mm x 80mm cross section
Fuel Gauge Display Always on 5-Bar LCD
Voltage 3.6 V
Capacity 13.6 Ah
Current 10.0 A
Power 25 W
Additional manufacturer replacement references

The manufacturer’s obsolete-model table lists ND2053HD24 as references for this replacement. Confirm the full device configuration before substituting.

Request product information

Compatible chargers

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Compatible accessories and related components

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Data sheets and manufacturer documents
Help selecting and ordering

Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
