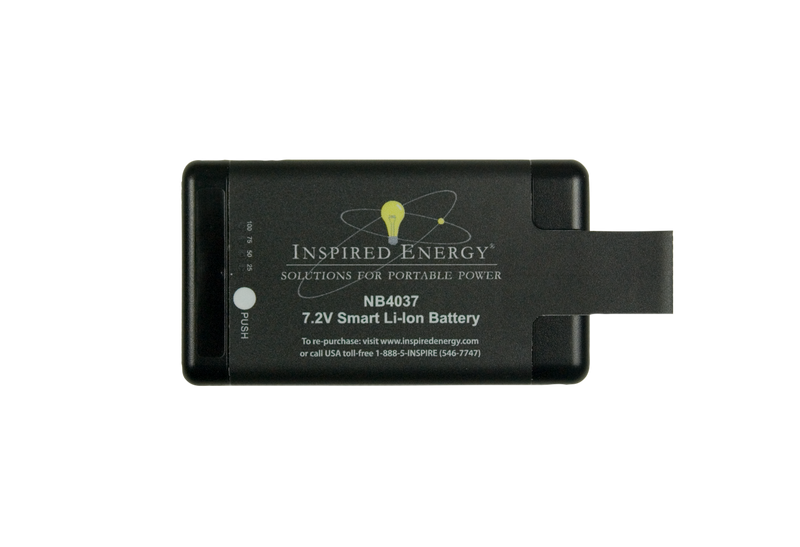

Inspired Energy NB4037HD50 Battery — 7.2V, 5.0Ah

Inspired Energy

Inspired Energy NB4037HD50 Battery — 7.2V, 5.0Ah

Part number: NB4037HD50

$130.51

Need selection help, a volume quote or a confirmed delivery date?

Browse the Inspired Energy finder

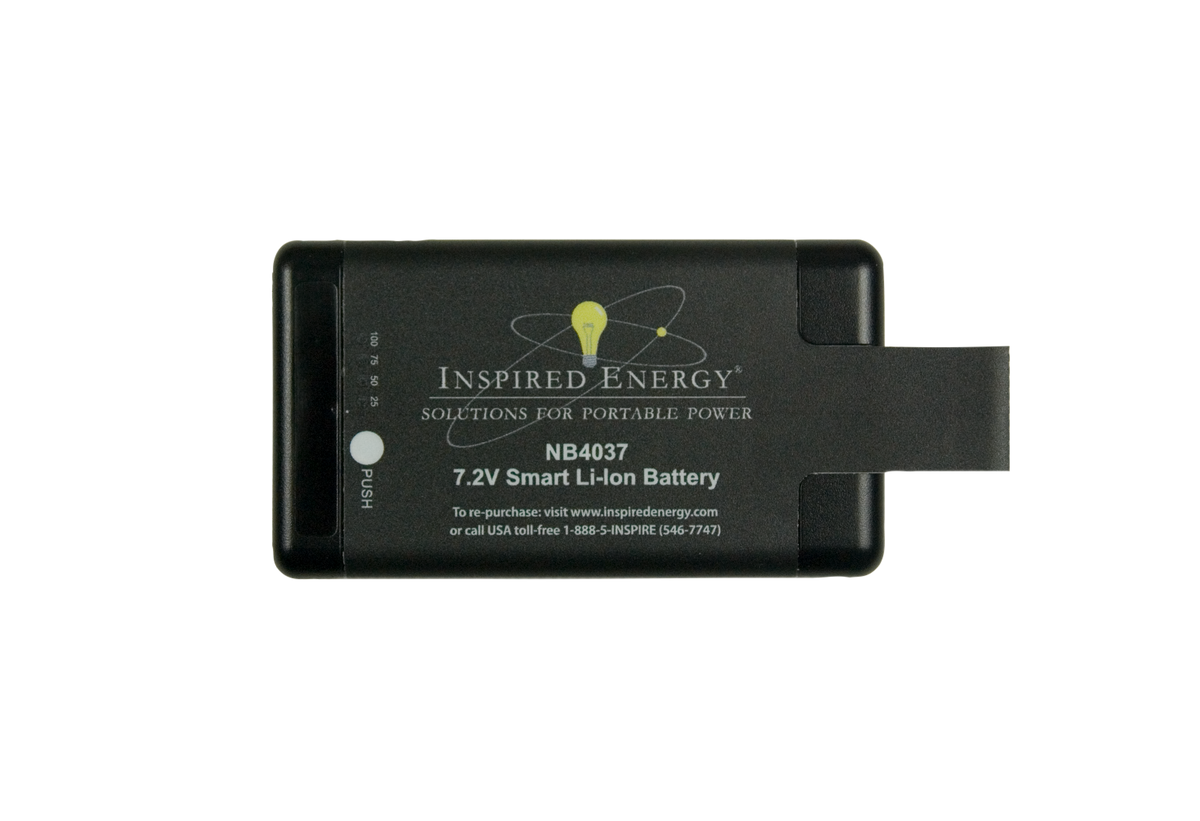

The Inspired Energy NB4037HD50 is a 7.2 V rechargeable lithium-ion battery pack rated 5.0 Ah, with 36 Wh of stored energy. Match its AMP P/N 5787422-1 or 5787446-1 connection and physical dimensions to your device before ordering.

Specifications

Dimensions L × W × H (in) 3.74" X 2.1" X 1.08"
Dimensions L × W × H (mm) 94.89mm X 53.17mm X 27.26mm
Energy (Wh) 36
Shape Rectangular
Chemistry / Cell Array 2 Li-ion 21700 cells / 2S1P array
Equivalent Lithium Content ≤2g
Mating Connector AMP P/N 5787422-1 or 5787446-1
Cavity Size 27.8mm x 54.7mm cross section
Fuel Gauge Display Always on 5-Bar LCD
IP Rating IP65
Voltage 7.2 V
Capacity 5.0 Ah
Current 8.0 A
Power 40 W

Compatible chargers

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Compatible accessories and related components

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Data sheets and manufacturer documents
Help selecting and ordering

Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
