Inspired Energy NF2040HD34 Battery — 10.8V, 6.8Ah
Inspired Energy NF2040HD34 Battery — 10.8V, 6.8Ah

Inspired Energy

Inspired Energy NF2040HD34 Battery — 10.8V, 6.8Ah

Part number: NF2040HD34

$153.88

Need selection help, a volume quote or a confirmed delivery date?

Browse the Inspired Energy finder

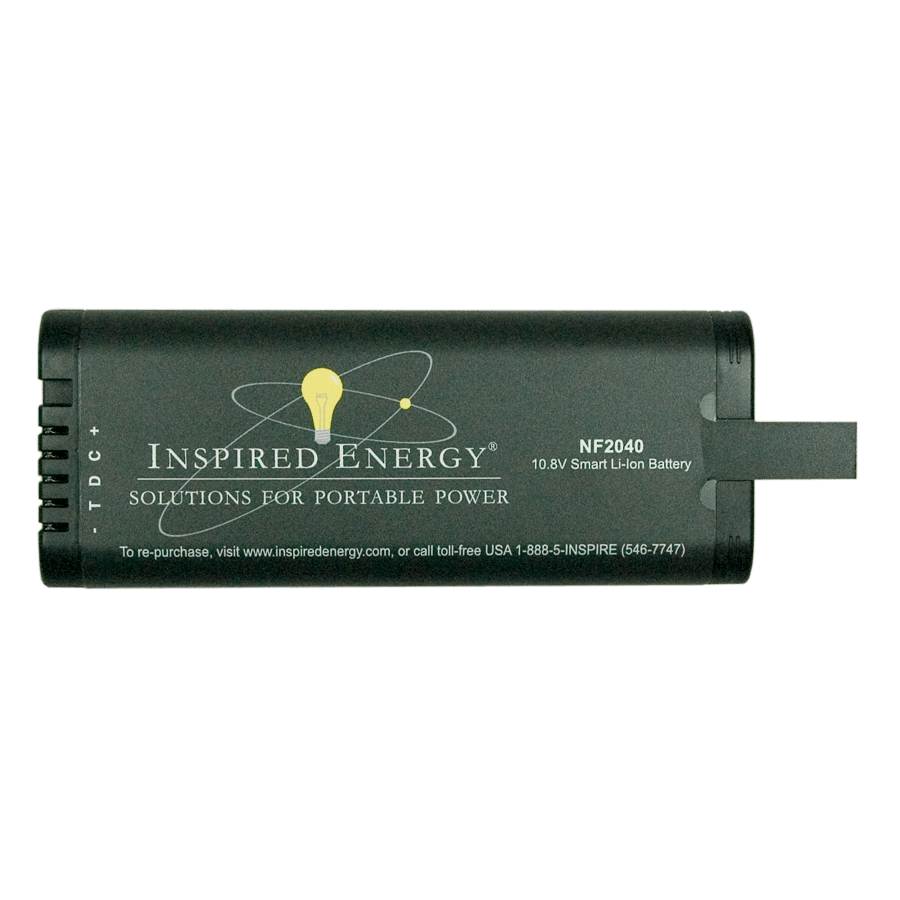

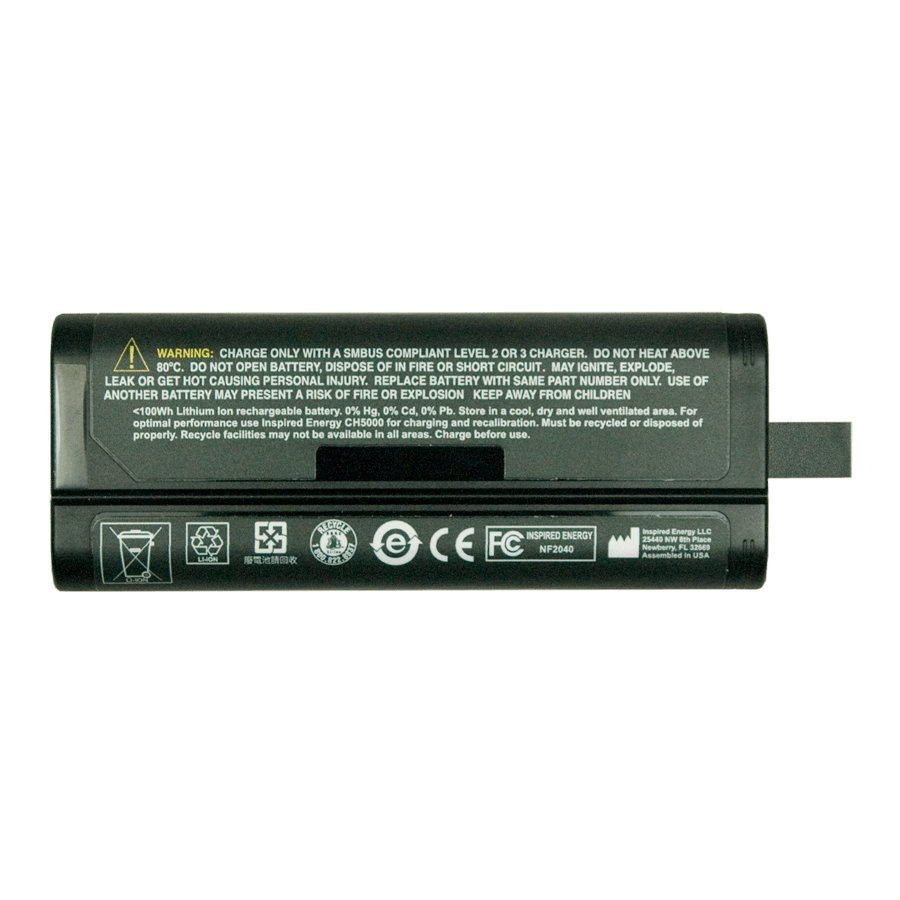

The Inspired Energy NF2040HD34 is a 10.8 V rechargeable lithium-ion battery pack rated 6.8 Ah, with 73 Wh of stored energy. Match its AMP P/N 5787422-1 or 5787446-1 connection and physical dimensions to your device before ordering.

Specifications

Dimensions L × W × H (in) 5.9" X 2.4" X 0.9"
Dimensions L × W × H (mm) 151.1mm X 59.02mm X 22.4mm
Energy (Wh) 73
Shape Rectangular
Chemistry / Cell Array 6 Li-ion 18650 cells / 3S2P array
Equivalent Lithium Content 6g
Mating Connector AMP P/N 5787422-1 or 5787446-1
Cavity Size 23.5mm x 60mm cross section
Fuel Gauge Display Always on 5-Bar LCD
Voltage 10.8 V
Capacity 6.8 Ah
Current 8.0 A
Power 60 W
NF2040HD24 , NF2040HD31 Price Qty 1-11 $153.88

Manufacturer cross references

Listed replacement references: NF2040HD24 , NF2040HD31. Confirm connector, dimensions, firmware and device requirements before substituting a pack.

Compatible chargers

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Compatible accessories and related components

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Data sheets and manufacturer documents
Help selecting and ordering

Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
