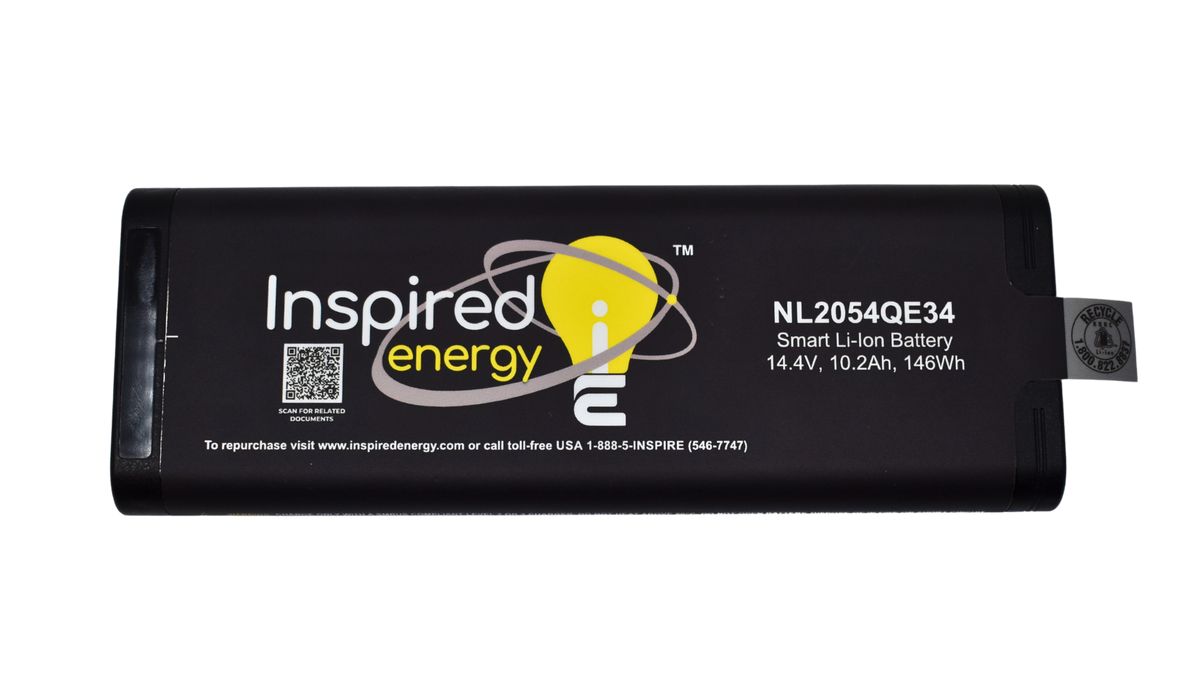

Inspired Energy NL2054QE34 Battery — 14.4V, 10.2Ah

Inspired Energy

Inspired Energy NL2054QE34 Battery — 14.4V, 10.2Ah

Part number: NL2054QE34

$239.39

Need selection help, a volume quote or a confirmed delivery date?

Browse the Inspired Energy finder

The Inspired Energy NL2054QE34 is a 14.4 V rechargeable lithium-ion battery pack rated 10.2 Ah, with 147 Wh of stored energy. Match its AMP P/N 5787422-1 or 5787446-1 connection and physical dimensions to your device before ordering.

Specifications

Dimensions L × W × H (in) 8.5" X 3.1" X 0.9"
Dimensions L × W × H (mm) 215.9mm X 78.7mm X 22.86mm
Energy (Wh) 147
Shape Rectangular
Chemistry / Cell Array 12 Li-ion 18650 cells / 4S3P array
Equivalent Lithium Content ≤12g
Mating Connector AMP P/N 5787422-1 or 5787446-1
Fuel Gauge Display Always on 5-Bar LCD
Voltage 14.4 V
Capacity 10.2 Ah
Current 8.0 A
Power 80 W
NL2054HD22 , NL2054HD34 Price Qty 1-11 $239.39

Manufacturer cross references

Listed replacement references: NL2054HD22 , NL2054HD34. Confirm connector, dimensions, firmware and device requirements before substituting a pack.

Compatible chargers

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Compatible accessories and related components

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Data sheets and manufacturer documents
Help selecting and ordering

Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
