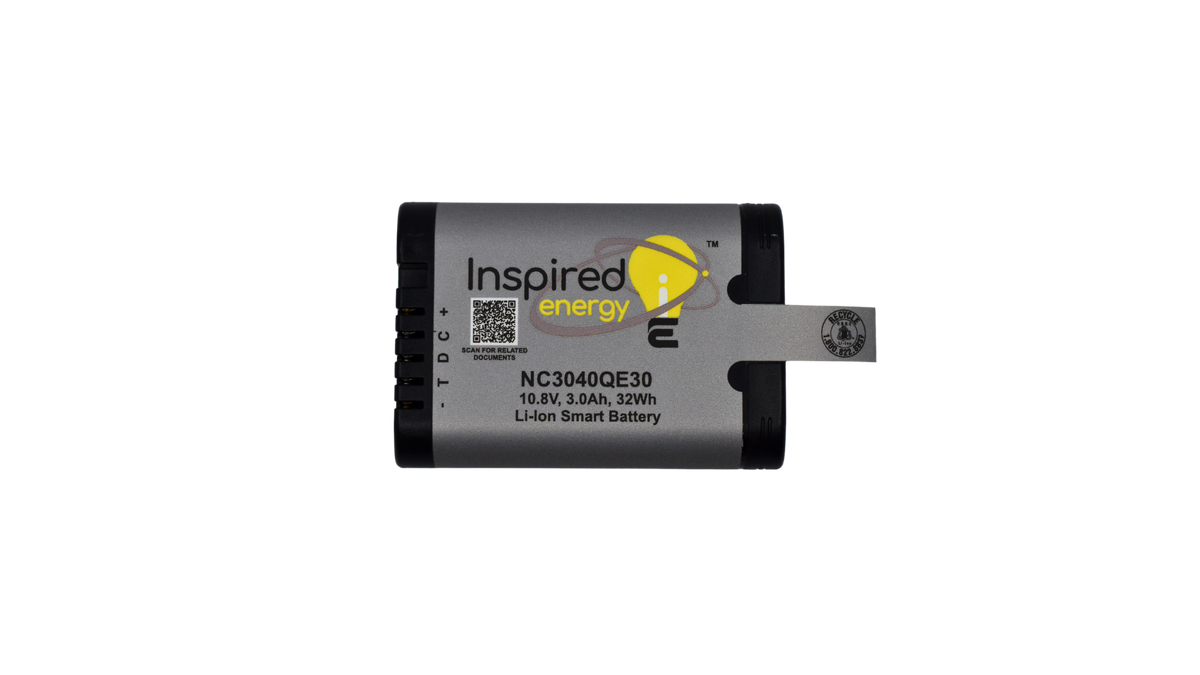

Inspired Energy NC3040QE30 Battery — 10.8V, 3.0Ah

Inspired Energy

Inspired Energy NC3040QE30 Battery — 10.8V, 3.0Ah

Part number: NC3040QE30

$132.64

Need selection help, a volume quote or a confirmed delivery date?

Browse the Inspired Energy finder

The Inspired Energy NC3040QE30 is a 10.8 V rechargeable lithium-ion battery pack rated 3.0 Ah, with 32 Wh of stored energy. Match its 5-Pin Standard Connector connection and physical dimensions to your device before ordering.

Specifications

Dimensions L × W × H (in) 3.4" X 2.4" X .09"
Dimensions L × W × H (mm) 85mm X 59mm X 22mm
Energy (Wh) 32
Shape Rectangular
Chemistry / Cell Array 3 Li-ion 18650 cells / 3S1P array
Mating Connector 5-Pin Standard Connector
Fuel Gauge Display Always on 5-Bar LCD
Voltage 10.8 V
Capacity 3.0 Ah
Current 8.0 A
Power 60 W
NC3040HD29 , NC3040QE29 Price Qty 1-11 $132.64

Manufacturer cross references

Listed replacement references: NC3040HD29 , NC3040QE29. Confirm connector, dimensions, firmware and device requirements before substituting a pack.

Compatible chargers

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Compatible accessories and related components

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Data sheets and manufacturer documents
Help selecting and ordering

Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
