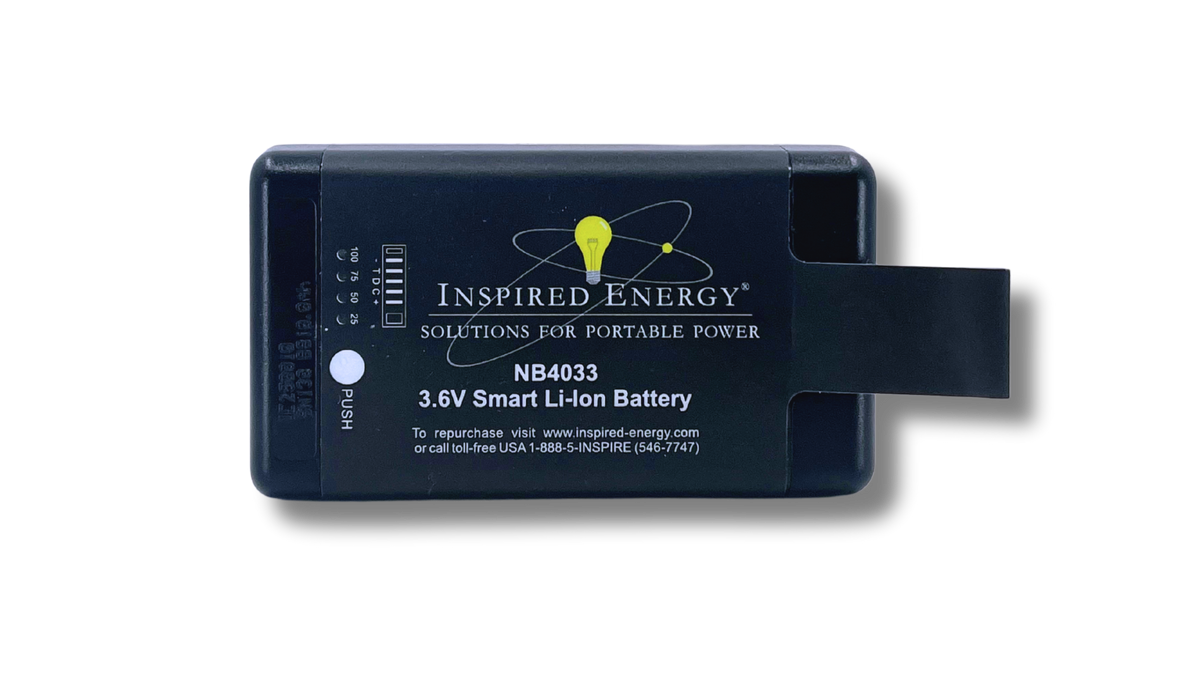

Inspired Energy NB4033HD50 Battery — 3.6V, 10.0Ah

Inspired Energy

Inspired Energy NB4033HD50 Battery — 3.6V, 10.0Ah

Part number: NB4033HD50

$130.51

Need selection help, a volume quote or a confirmed delivery date?

Browse the Inspired Energy finder

The Inspired Energy NB4033HD50 is a 3.6 V rechargeable lithium-ion battery pack rated 10.0 Ah, with 36 Wh of stored energy. Match its AMP P/N 5787422-1 or 5787446-1 connection and physical dimensions to your device before ordering.

Specifications

Dimensions L × W × H (in) 3.74 X 2.10 X 1.08
Dimensions L × W × H (mm) 94.996 X 53.34 X 27.432
Energy (Wh) 36
Shape Rectangular
Chemistry / Cell Array 2 Li-ion 21700 cells / 1S2P array
Mating Connector AMP P/N 5787422-1 or 5787446-1
Voltage 3.6 V
Capacity 10.0 Ah
Current 10.0 A
Power 25 W

Compatible chargers

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Compatible accessories and related components

Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.

Data sheets and manufacturer documents
Help selecting and ordering

Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
