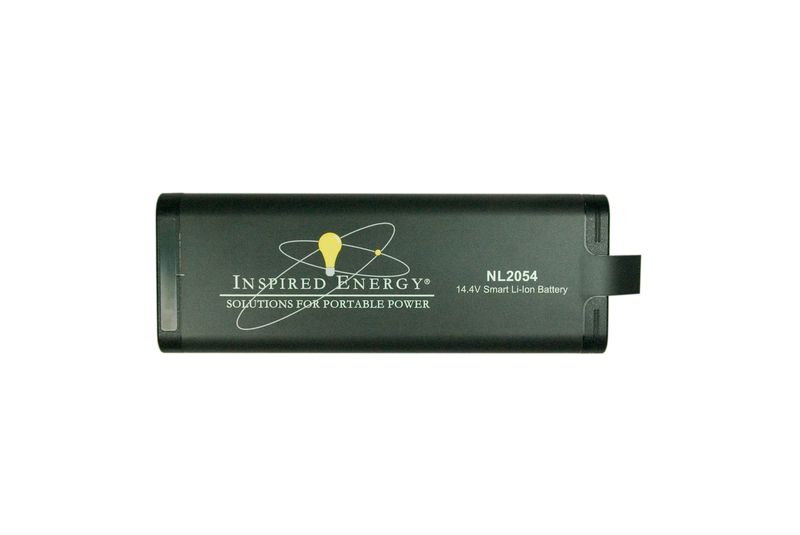

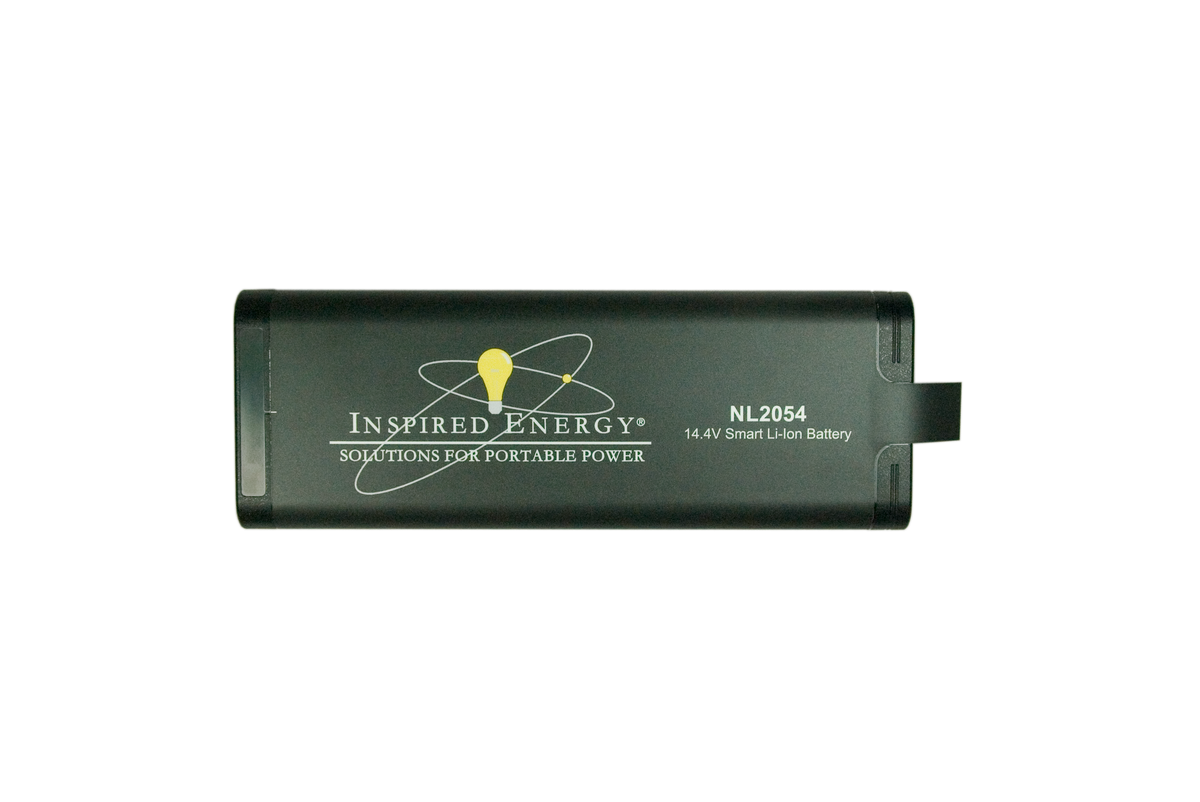

Inspired Energy NL2054HD22 Legacy Battery — Replacement Guide
Part number: NL2054HD22
Request a configuration quote
We’ll confirm the model, availability and price for your application.
Request a quote Browse the Inspired Energy finderThe Inspired Energy NL2054HD22 is a 14.4 V rechargeable lithium-ion battery pack rated 6.6 Ah, with 95 Wh of stored energy. Match its AMP P/N 5787422-1 or 5787446-1 connection and physical dimensions to your device before ordering.
Legacy model: The manufacturer lists NL2054HD22 as obsolete. Review RH2054HD34 as the listed replacement. Confirm device compatibility before changing models.
Configuration quote: Contact us to confirm availability, configuration and pricing for this item.
Specifications
| Dimensions L × W × H (in) | 8.5" X 3.1" X 0.9" |
|---|---|
| Dimensions L × W × H (mm) | 215.9mm X 78.7mm X 22.86mm |
| Energy (Wh) | 95 |
| Shape | Rectangular |
| Chemistry / Cell Array | 12 Li-ion 18650 cells / 4S3P array |
| Equivalent Lithium Content | ≤8g |
| Mating Connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity Size | 23.5mm x 80mm cross section |
| Fuel Gauge Display | Always on 5-Bar LCD |
| Belt Pack Number | MP20X or BPXX or BC2BVX |
| Voltage | 14.4 V |
| Capacity | 6.6 Ah |
| Current | 8.0 A |
| Power | 80 W |
Compatible chargers
Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.
- CH1000
- CH1000CAL
- CH1010
- CH1111
- CH1111CAL
- CH4000
- CH4040
- CH4444
- CH5000
- CH5050
- CH5555
- CH6555
- CH7000
- CH7070
- CH7100
- CH7171
- CR12 — enquire
Compatible accessories and related components
Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.
- 610005
- 610007
- 610018
- 629028 — enquire
- 629030 — enquire
- 936186 — enquire
- 936192
- ATA004N — enquire
- BL237A — enquire
- EB397A — enquire
- Embedded Charger Boards — enquire
Data sheets and manufacturer documents
Help selecting and ordering
Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
