Inspired Energy NL2020ED22 Legacy Battery — Replacement Guide
Part number: NL2020ED22
Request a configuration quote
We’ll confirm the model, availability and price for your application.

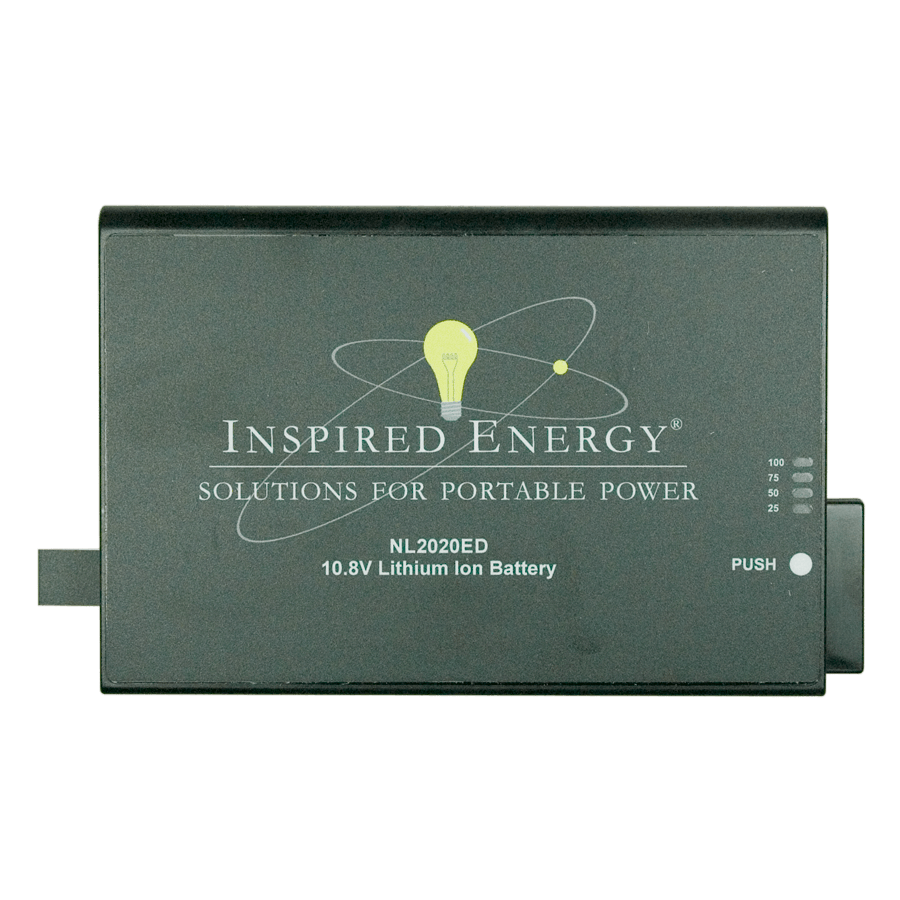

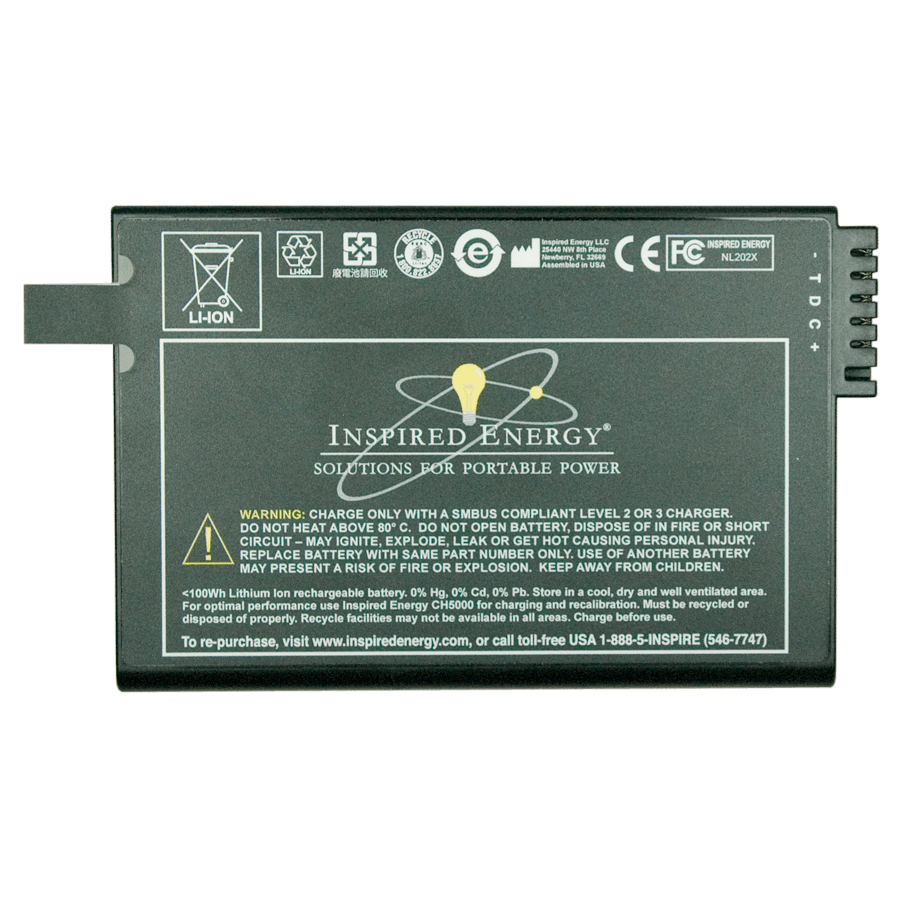

Request a quote Browse the Inspired Energy finderThe Inspired Energy NL2020ED22 is a 10.8 V rechargeable lithium-ion battery pack rated 8.8 Ah, with 95 Wh of stored energy. Match its AMP P/N 5787422-1 or 5787446-1 connection and physical dimensions to your device before ordering.
Legacy model: The manufacturer lists NL2020ED22 as obsolete. Review Ri3020HD29 as the listed replacement. Confirm device compatibility before changing models.
Configuration quote: Contact us to confirm availability, configuration and pricing for this item.
Specifications
| Dimensions L × W × H (in) | 6.6" X 4.3" X 0.9" |
|---|---|
| Dimensions L × W × H (mm) | 167.7mm X 109.22mm X 22.86mm |
| Energy (Wh) | 95 |
| Shape | Rectangular |
| Chemistry / Cell Array | 12 Li-ion 18650 cells / 3S4P array |
| Equivalent Lithium Content | ≤8g |

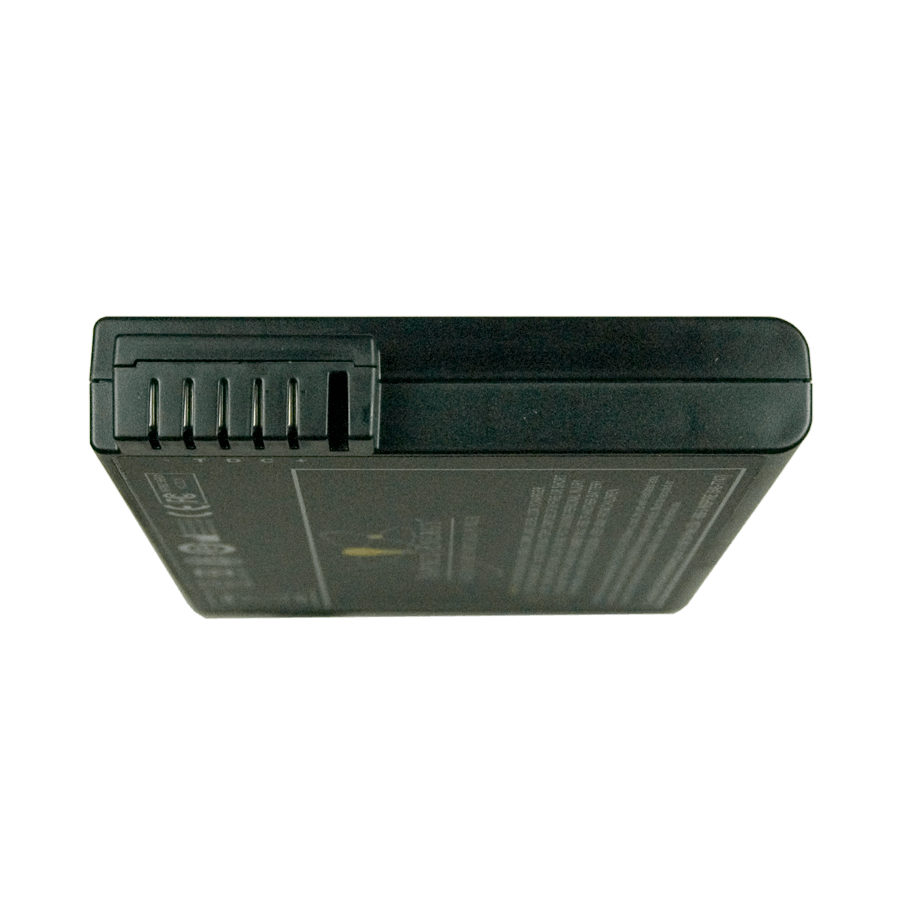

| Mating Connector | AMP P/N 5787422-1 or 5787446-1 |
| Cavity Size | 22.5mm x 109mm cross section |
| Fuel Gauge Display | Push button 4-bar LED |
| Belt Pack Number | BC2DXX or BP2D1X01 |
| Voltage | 10.8 V |
| Capacity | 8.8 Ah |
| Current | 10.0 A |
| Power | 75 W |
Compatible chargers
Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.
- CH1000
- CH1000CAL
- CH1010
- CH1111
- CH1111CAL
- CH4000
- CH4040
- CH4444
- CH5000
- CH5050
- CH5555
- CH6555
- CH7000
- CH7070
- CH7100
- CH7171
- CR12 — enquire
Compatible accessories and related components
Manufacturer-listed connections are shown below. Check each item’s specification and selection notes for the required configuration.
- 610005
- 610007
- 610018
- 629010 — enquire
- 629011 — enquire
- 629035 — enquire
- 629041 — enquire
- 936143 — enquire
- 936187 — enquire
- ATA004N — enquire
- BC2BV00A — enquire
- BC2BV00U — enquire
- BC2BV01E — enquire
- BC2D0501A — enquire
- BC2D1301A / E / U — enquire
- BC2D1302E — enquire
- BC2D1501A / E / U — enquire
- BC2D1503A — enquire
- BC2D1901A / E / U — enquire
- BC2D1902A — enquire
- BC2D1903A — enquire
- BC2D2401A — enquire
- BC2D2401E — enquire
- BL237A — enquire
- BP2BV01 — enquire
- BP2BV04 — enquire
- BP2BV05 — enquire
- BP2D1301 — enquire
- BP2D1501 — enquire
- BP5BV01 — enquire
- BP5BV03 — enquire
- EB397A — enquire
- Embedded Charger Boards — enquire
Data sheets and manufacturer documents
Help selecting and ordering
Send us your existing part number, equipment model, required quantity and delivery date. For batteries, include voltage, connector and enclosure dimensions. For chargers and power accessories, include the battery model, input supply and required output or mains-cord arrangement. Product-family similarity alone does not confirm interchangeability.
