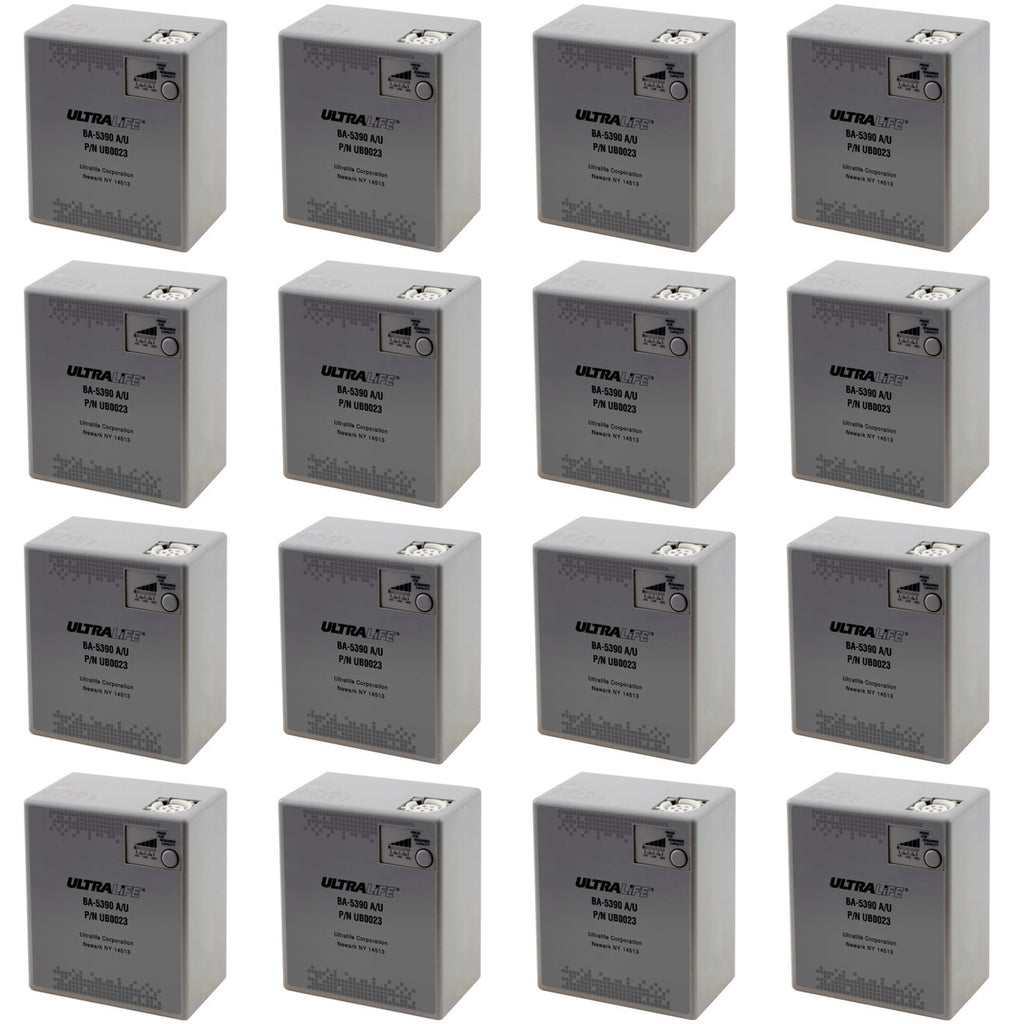

Ultralife BA-5390 A/U - P/N UB0023 Battery
Replacement for Ultralife BA-5390 A/U, UB0023, NSN Nato 6135-01-517-6060, 6135-01-036-3495
Voltage: 15 Volt
Capacity: 11.1 Amp Hour
Chemistry: LiMnO2 - Lithium (Non-Rechargeable)
Dimensions: L 111.8mm (4.40") x W 62.2mm (2.45") x H 127.0mm (5.00")
Weight: 1330g
Factory Packing: 16 Per Case
Applications • Alternative for BA-5590/U Li-SO2 (NSN: 6135-01-036-3495) battery • AN/PRC-117G, AN/PRC-117F, AN/PRC119, AN/PSC-5D • Javelin Medium Anti-Tank CLU • More than 50 other military applications
Optional Cables • CA0006: 24V, 2 conductor cable • CA0007: 12V, 2 conductor cable • CA0008: 24/12V, 4 conductor cable
Features • State of Charge Indication to fully utilize battery capacity. 5 distinct ranges from 90% to 10% • Dual modes: 15V or 30V • High energy density • No voltage delay • Wide operating temperature range • Lightweight • Up to 10-year shelf life • Long operating life: 50 - 100% more runtime than BA-5590/U • Safe: non-pressurized system, hermetic Ni-plated steel cans • CDD indication displays when battery is ready for disposal
