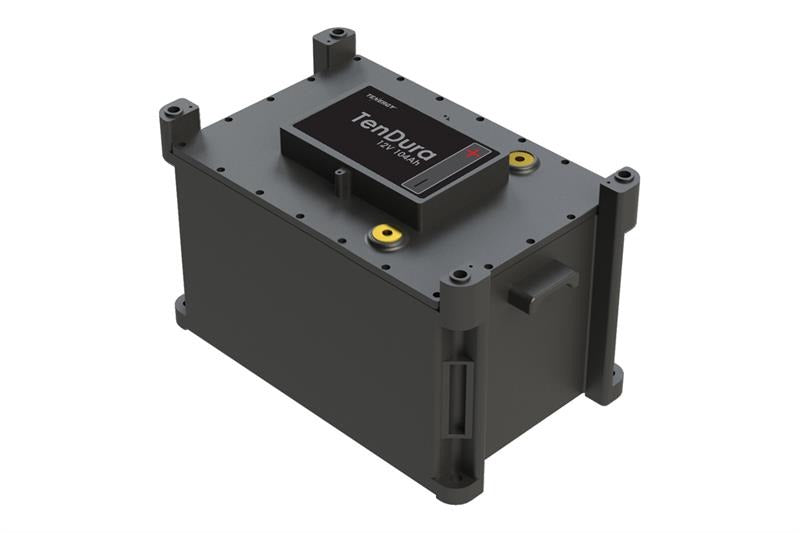

Shop the Tenergy TenDura Multi-Module 12V 1.5KWH,104Ah, Li-ion Intelligent Energy Storage Module. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
product highlights
- Lightweight and compact
- Heavy duty and durable
- High performance and battery life
- Versatility and scalable installation
- Fast charging capability
- Top quality battery cells
Summarized Features and Benefits:

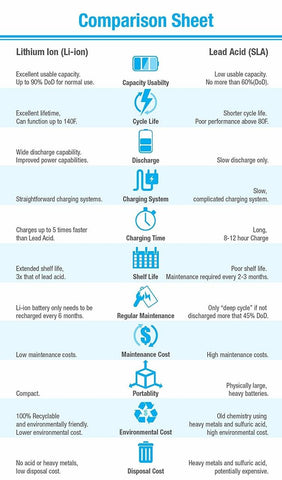

- High energy density in a smaller footprint - 1/4 the size & 1/6 the weight of a comparable Lead Acid battery. Expect reduced transportation costs vs the typical Lead Acid battery.
- Industrial case design is rugged and durable, and easy to stack and bolt together for any commercial requirements. The battery can also function up to 140F to accommodate various environments and applications.
- Up to 3X Extended Shelf Life and up to 5X longer field operating time than a comparable Lead Acid Battery with broader environmental operation
- Designed for ease and flexibility in installation - allows for series or parallel connection. It can be stacked, placed side-by-side, and be bolted together ensuring ease of installation and secure battery attachment.
- Charges up to 5 times faster than comparable Lead Acid battery.
- Compatible charge controllers or charge/ inverters are available from 3rd party vendors.

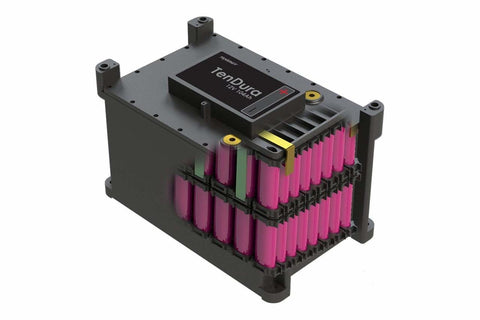

- Engineered with high capacity and top quality Panasonic/Sanyo battery cells, and an integrated Battery Management System to ensure safe optimal performance.
Specifications:
- Max: 16.8V Nominal: 14.8V Minimum 12V
- 104Ah (160 Cell configuration)
- Max. dischargecurrent: 40A
- Peakcurrent: 50A for 30 seconds
- Max. chargecurrent: 25A
- Depthofdischarge: 70%
- Cycles: 3000

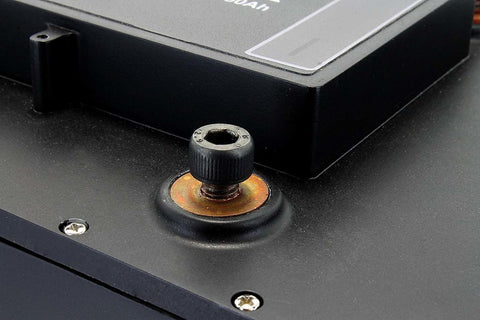

- BoltSize: M8

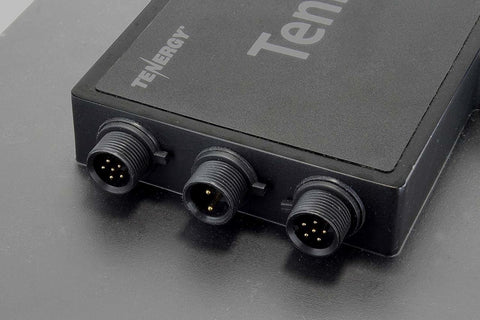

- ConnectorType: IP68 waterproof 6-pin, M14 panel type, cable connector.
- Communication: SMBus
- OperatingTemperature: -20C to 60C Charging 10C to 45C
- DimensionsandWeight: 306mm x 186mm x 185mm 9Kg/20lbs
- Certifications: UN38.3, UL 1642
- LimitedWarranty*: 5 years or 3000 cycles (whichever occurs first)
- EnergyRetention: 60% at 5 years following initial installation date
