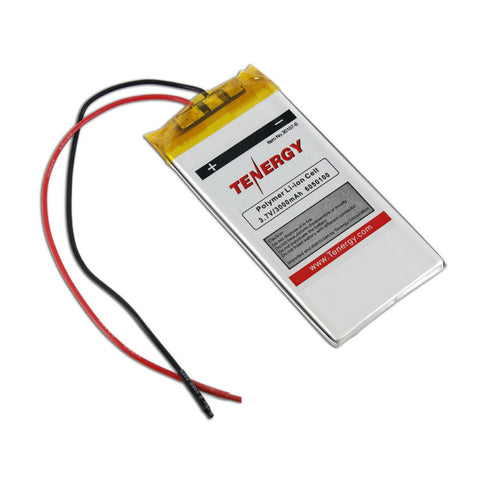

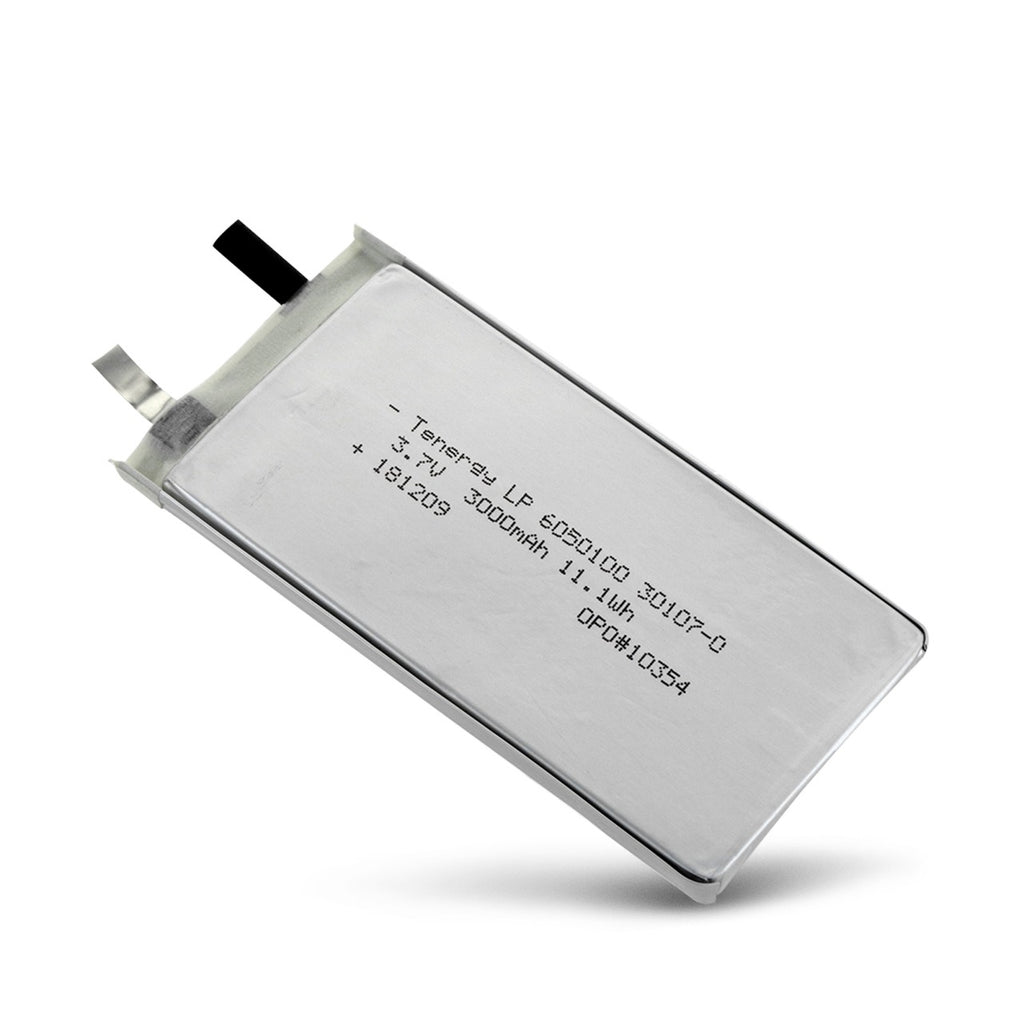

Shop the Tenergy Li-Polymer 3.7V 3000mAh (6050100) Battery. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- Li-polymer single cell battery (6050100)
- Capacity: 3,000mAh
- Voltage: 3.7V
Summarized Features and Benefits
Technical Specification:
- Battery Chemistry: Polymer Li-Ion
- Electrical: 3.7V, 3000mAh
- Model: 6050100
- Continuous Discharge Current: 0.2C (0.6A)
- Max Discharge current: 2C (6A)
- Cycle Life: Up to 500 Times
- Weight: 61g
- Dimension: 102.5 mm x 51.0 mm x 6.0 mm
PCB Option (Specifications):
-
Over Charge Protection
- Over charge detection voltage: 4.25±0.05V
- Over charge detection delay time: 1.0±0.3S
- Over charge release voltage: 4.05±0.05V
-
Over discharge protection
- Over discharge detection voltage:2.5±0.1V
- Over discharge detection delay time:20±6.0mS
- Over discharge release voltage:3.0±0.075V
-
Over current protection
- Over current detection voltage:0.2±0.015V
- Over current detection current: 3.0～6.0A
- Detection delay time:12±4.0mS
- Release condition: Cut load
-
Short protection
- Detection condition: Exterior short circuit
- Detection delay time: 230～500uS
- Release condition: Cut short circuit
-
Interior resistance
- Main loop electrify resistance: VC=4.2V；RSS≤70mΩ
-
Current consumption
- Current consume in normal operation: 4.0μA Type 8.0μA Max
CAUTION: when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled. User should have enough knowledge on Li-Ion rechargeable batteries in charging, discharging and assembly before use.
We are not responsible for any damage caused by misuse or mishandling of these Li-Ion batteries
