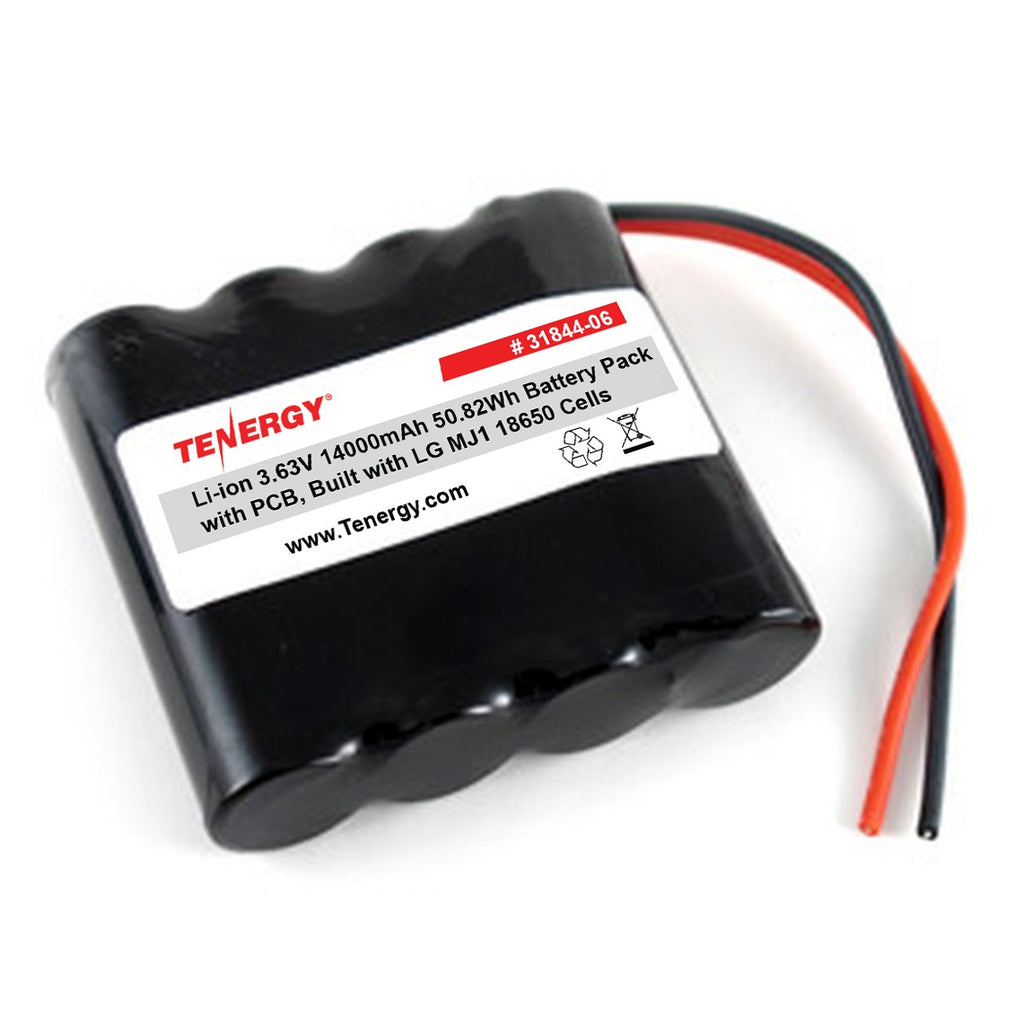

Shop the Tenergy Li-ion 3.63V 14,000mAh Side by Side Rechargeable Battery Pack w/ PCB (1S4P, 50.82Wh, 8.5A Rate ) - Built with LG MJ1 18650 Cells. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V) 3.63
- Capacity (mAh) 14,000
- Max Continuous Discharge Current 8.5A
- Weight 197g
- Dimensions 73 x 68 x 19mm (LxWxT)
- Built with LG MJ1 18650 Cells
- ConnectorBare Leads
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V) 3.63
- Capacity (mAh) 14,000
- Max Continuous Discharge Current 8.5A
- Weight 197g
- Dimensions 73 x 68 x 19mm (LxWxT)
- Built with LG MJ1 18650 Cells
- ConnectorBare Leads
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V) 3.63
- Capacity (mAh) 14,000
- Max Continuous Discharge Current 8.5A
-
Battery Charging Current
- Standard: 2.8A
- Rapid: 7A
- Weight 197g
- Dimensions 73 x 68 x 19mm (LxWxT)
- ConnectorBare Leads
-
Avg. Temperature Ranges for
- Charging32° F~113° F / (0~45°C)
- Discharging -4°F ~144°F / (-20~60°C)
- Storage -4°F~68°F / (-20~20°C)
-
PCB/Pack Protection(for single cell voltages)
- Over Charge Cutoff Voltage: 4.25±0.05
- Over Discharge Cutoff: 2.50±0.1
- Over Current Cutoff (A) 22±4
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01281 | Tenergy TLP-4000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.- users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- it is strongly suggest that you use our Smart Li-ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
