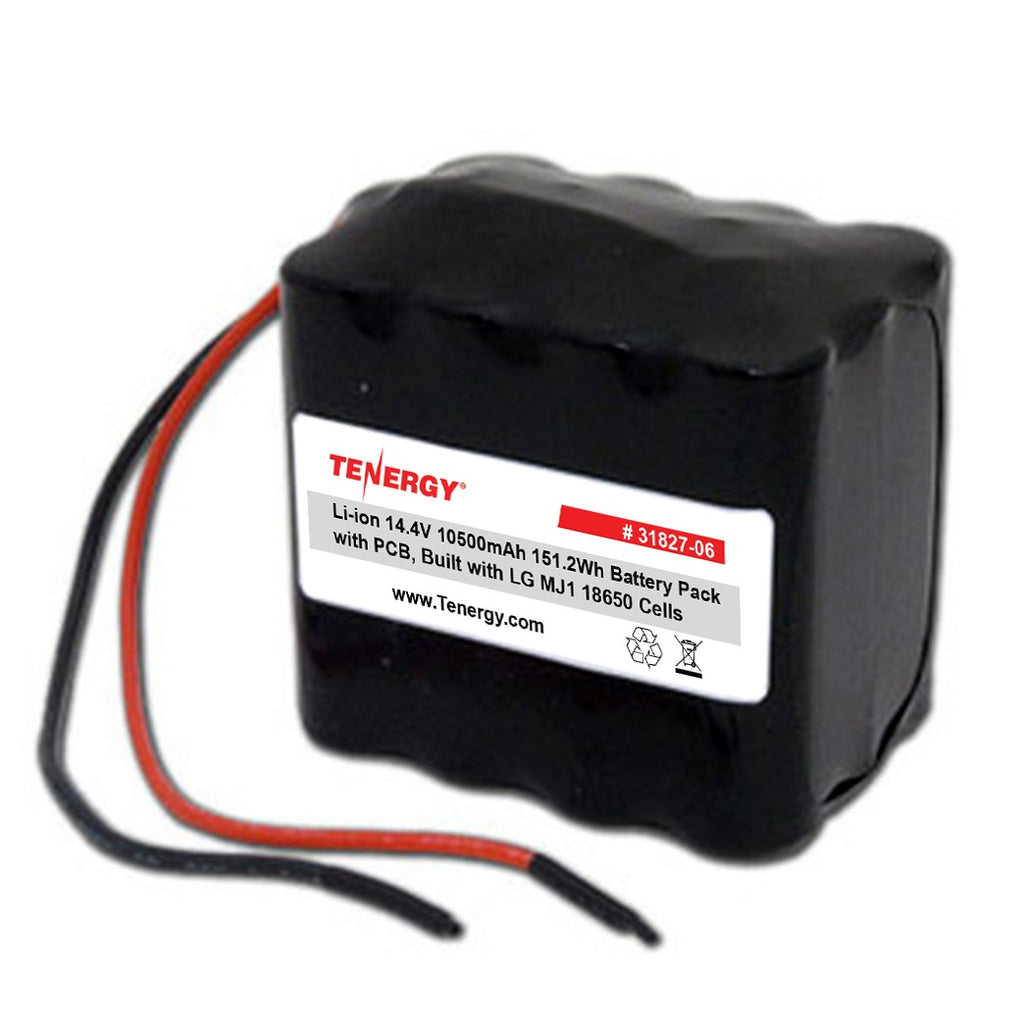

Shop the Tenergy Li-ion 14.4V 10,500mAh Rechargeable Battery Pack w/ PCB (4S3P, 151.2Wh, 10A Rate) - Built with LG MJ1 18650 Cells. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)14.4
- Capacity (mAh) 10500
- Max Continuous Discharge Current 10A
- Weight 602g
- Dimensions75 x 70 x 55mm (LxWxT)
- Built with LG MJ1 18650 Cells
- ConnectorBare Leads
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)14.4
- Capacity (mAh) 10500
- Max Continuous Discharge Current 10A
- Weight 602g
- Dimensions75 x 70 x 55mm (LxWxT)
- Built with LG MJ1 18650 Cells
- ConnectorBare Leads
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V)14.4
- Capacity (mAh) 10500
- Max Continuous Discharge Current 10A
-
Battery Charging Current
- Standard: 2.1A
- Rapid: 5.3A
- Weight 602g
- Dimensions75 x 70 x 55mm (LxWxT)
- ConnectorBare Leads
-
Avg. Temperature Ranges for
- Charging: 32° F~113° F / (0~45°C)
- Discharging: -4°F ~144°F / (-20 - 60°C)
- Storage: -4°F~68°F / (-20~20°C)
-
PCB/Pack Protection
- Over Charge Cutoff Voltage: 4.25±0.025
- Over Discharge Cutoff: 2.5±0.08
- Over Current Cutoff (Ah) 40±5
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01281 | Tenergy TLP-4000 Li-ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
| 01206-01 | Tenergy TLP-3000 Li-ion Battery Pack Charger | 14.4V/14.8V (4S only) | 1.5A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.- users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- it is strongly suggested that you use our Smart Li-ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
