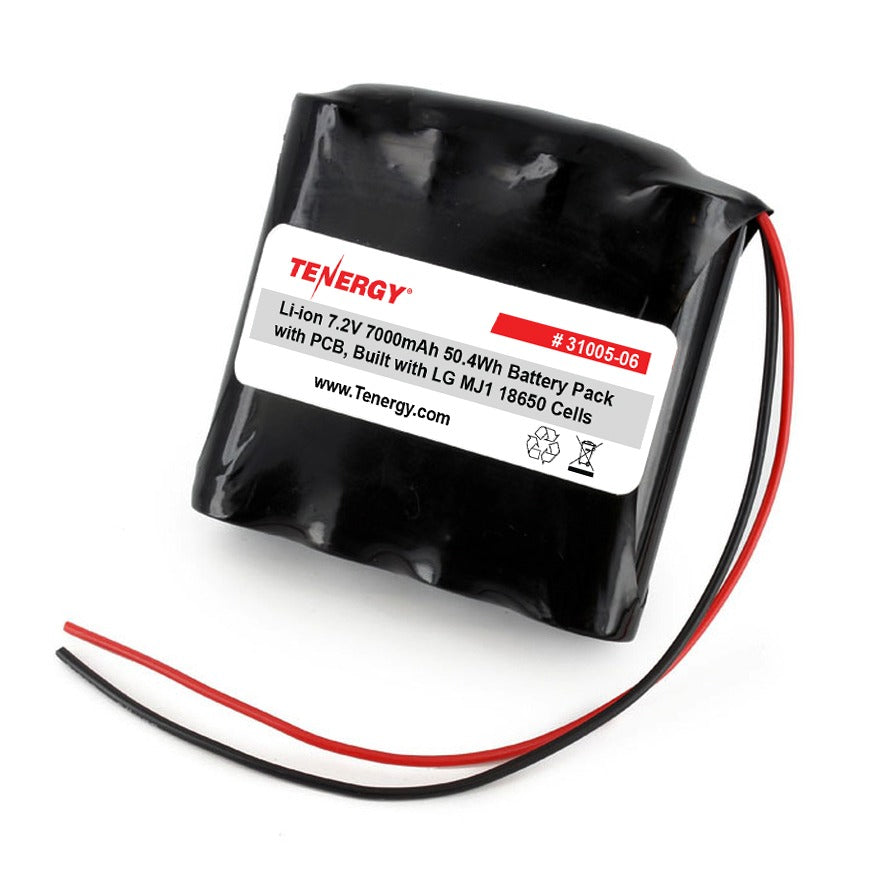

Shop the Tenergy Li-ion 7.2V 7000mAh Rechargeable Battery Pack w/ PCB (2S2P, 50.4Wh, 10A Rate) - Built with LG MJ1 18650 Cells. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V) 7.2
- Capacity (mAh) 7000
- Max Continuous Discharge Current 10A
- Weight 194g
- Dimension 73 x 70 x 20mm (LxWxT)
- Built with LG MJ1 18650 Cells
- ConnectorBare Leads
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V) 7.2
- Capacity (mAh) 7000
- Max Continuous Discharge Current 10A
- Weight 194g
- Dimension 73 x 70 x 20mm (LxWxT)
- Built with LG MJ1 18650 Cells
- ConnectorBare Leads
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V) 7.2
- Capacity (mAh) 7000
- Max Continuous Discharge Current 10A
-
Battery Charging Current
- Standard 1.4A
- Rapid 3.5A
- Weight 194g
- Dimension73 x 70 x 20mm (LxWxT)
- ConnectorBare Leads
-
Avg. Temperature Ranges for:
- Charging32° F~113° F / (0~45°C)
- Discharging -4°F ~144°F / (-20~60°C)
- Storage -4°F~68°F / (-20~20°C)
-
PCB/Pack Protection:
- Overcharge Protection: 4.280±0.025
- Over-discharge Protection: 2.40±0.05
- Over Current Cutoff (A): 22±5
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01281 | Tenergy TLP-4000 Li-Ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- users should have enough knowledge on Li-Ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-Ion battery packs.
- it is strongly suggest that you use our Smart Li-Ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
