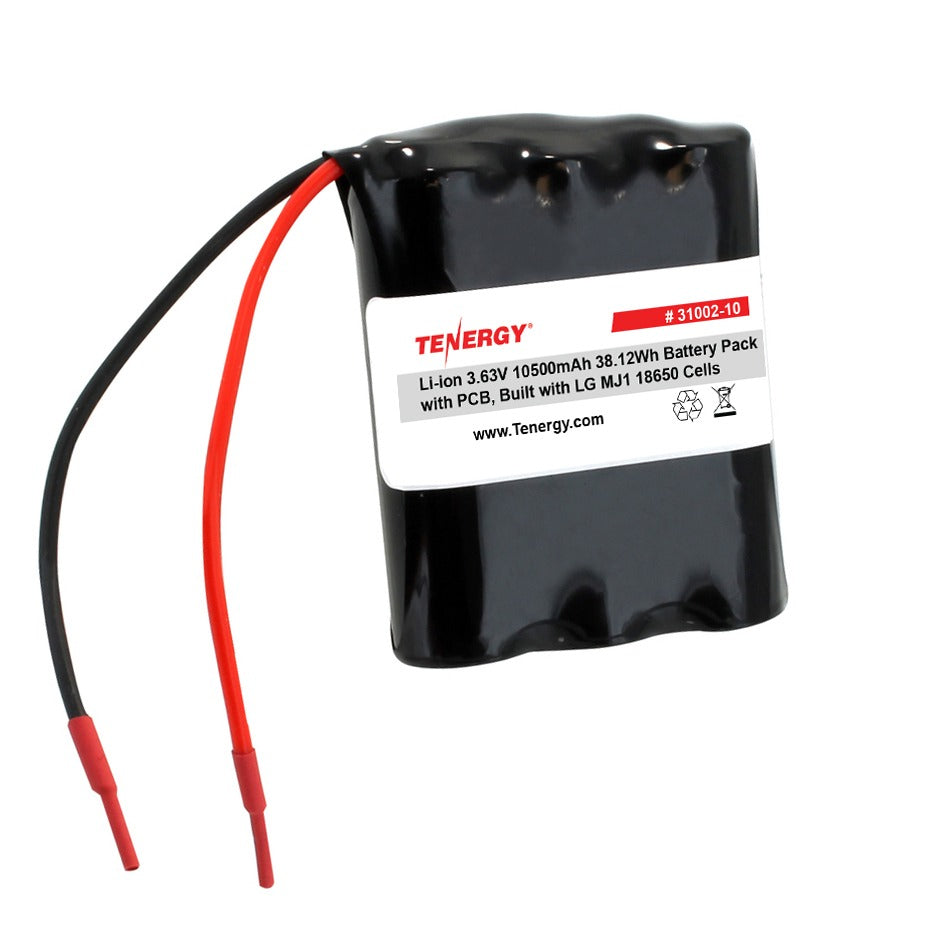

Shop the Tenergy Li-ion 3.63V 10,500mAh Rechargeable Battery Pack w/ PCB (1S3P, 38.12Wh, 8.5A Rate) - Built with LG MJ1 18650 Cells. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)3.63
-
Capacity (mAh) 10,500
- Max Continuous Discharge Current 8.5A
- Weight150g
- Dimensions 73.1 x 55.4 x 19 (LxWxT)
- Built with LG MJ1 18650 Cells
- ConnectorBare Leads
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)3.63
-
Capacity (mAh) 10,500
- Max Continuous Discharge Current 8.5A
- Weight150g
- Dimensions 73.1 x 55.4 x 19 (LxWxT)
- Built with LG MJ1 18650 Cells
- ConnectorBare Leads
Features
- Light weight and higher energy density than any rechargeable battery.
- No memory effect and rechargeable.
- Longer storage life than NiMH battery.
- Built-in IC chip will prevent battery pack from over charge and over discharge and prolongs battery life.
- Perfect for building 3.7V battery pack for bike lighting, RC toy (cars and airplanes), robots, cameras, DVD external battery.
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V)3.63
- Capacity (mAh) 10,500
- Max Continuous Discharge Current 8.5A
-
Battery Charging Current
- Standard:2.1A
- Rapid:5.3A
- Weight150g
- Dimensions 73.1 x 55.4 x 19 (LxWxT)
- ConnectorBare Leads
-
Avg. Temperature Ranges for
- Charging32° F~113° F / (0~45°C)
- Discharging -4°F ~144°F / (-20~60°C)
- Storage -4°F~68°F / (-20~20°C)
-
PCB/Pack Protection
- Over Charge Cutoff Voltage: 4.25±0.025
- Over Discharge Cutoff: 2.50±0.1
- Over Current Cutoff (Ah) 22±4
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01281 | Tenergy TLP-4000 Li-Ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.- users should have enough knowledge on Li-Ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-Ion battery packs.
- it is strongly suggest that you use our Smart Li-Ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
