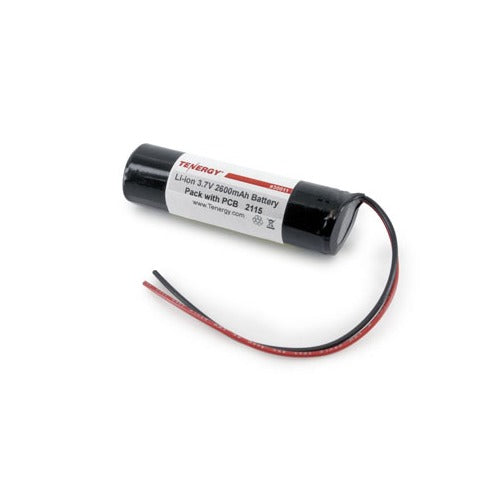

Tenergy Li-ion 3.7V 2600mAh Rechargeable Battery Pack w/ PCB (30011)

Tenergy Li-ion 3.7V 2600mAh Rechargeable Battery Pack w/ PCB (1S1P, 9.62Wh, 3.5A Rate) (30011)

  • Sale
  • $16.25

Shop the Tenergy Li-ion 3.7V 2600mAh Rechargeable Battery Pack w/ PCB (1S1P, 9.62Wh, 3.5A Rate). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.

Product details and specifications

Product Highlights

  • ChemistryLi-ion
  • Nominal Voltage (V)3.7
  • Capacity (mAh)2600
  • Max Continuous Discharge Current3.5A
  • Weight50g
  • Dimension69 x 19mm (LxD)
  • ConnectorBare Leads

Product Highlights

  • ChemistryLi-ion
  • Nominal Voltage (V)3.7
  • Capacity (mAh)2600
  • Max Continuous Discharge Current3.5A
  • Weight50g
  • Dimension69 x 19mm (LxD)
  • ConnectorBare Leads

Technical Specification

  • TypePack
  • ChemistryLi-ion
  • Nominal Voltage (V)3.7
  • Capacity (mAh)2600
  • Max Continuous Discharge Current3.5A
  • Battery Charging Current
    • Standard0.5A
    • Rapid1.3A
  • Weight50g
  • Dimension69 x 19mm (LxD)
  • ConnectorBare Leads
  • Avg. Temperature Ranges for
    • Charging32° F~113° F / (0~45°C)
    • Discharging14°F ~140°F / (-10~60°C)
    • Storage32°F ~86°F / (0~30°C)
  • PCB/Pack Protection(for single cell voltages)
    • Overcharge Protection<4.2V
    • Over-discharge Protection>3.0V
  • Over Current Cutoff (A):6.5 ± 2A

Supported Chargers:

Item Number Model/Description Compatible Packs Charging Current
01348 Tenergy Li-ion 3.7V 1.5A Battery Pack Charger 3.7V (1S) 1.5A
01211 Tenergy TLP-2000 Li-ion Battery Pack Charger 3.7V - 14.8V (1-4S) 0.5A
01281 Tenergy TLP-4000 Li-ion Battery Pack Charger 3.7V - 14.8V (1-4S) 1.0A

CAUTION:

- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- users should have enough knowledge on Li-ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-ion battery packs.
- it is strongly suggest that you use our Smart Li-ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
