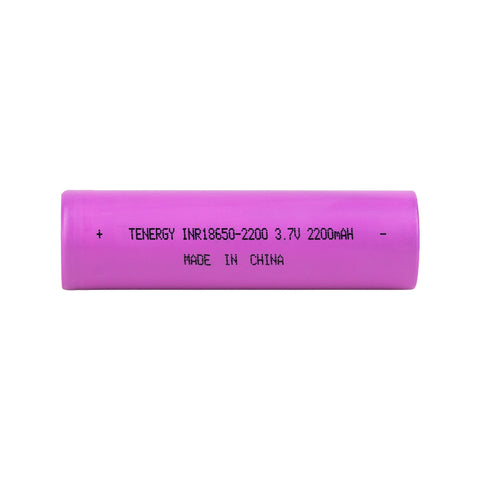

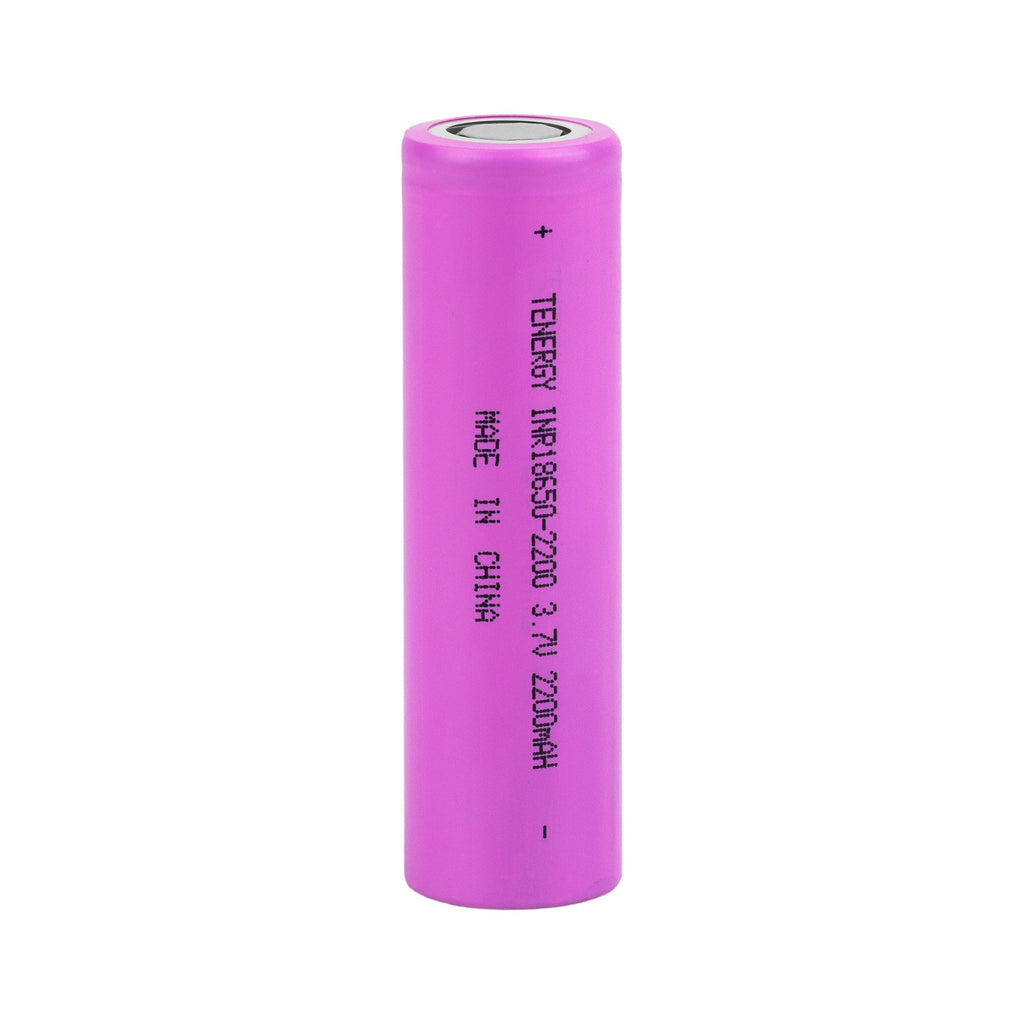

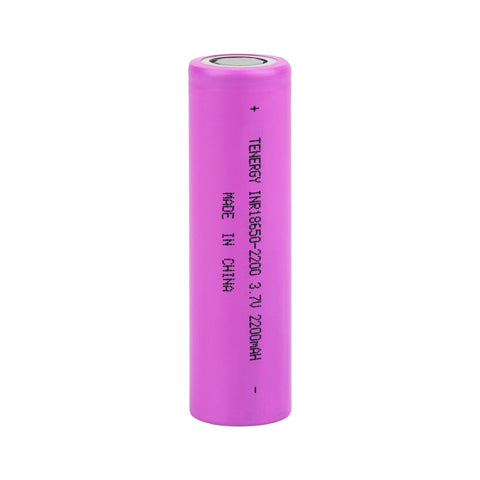

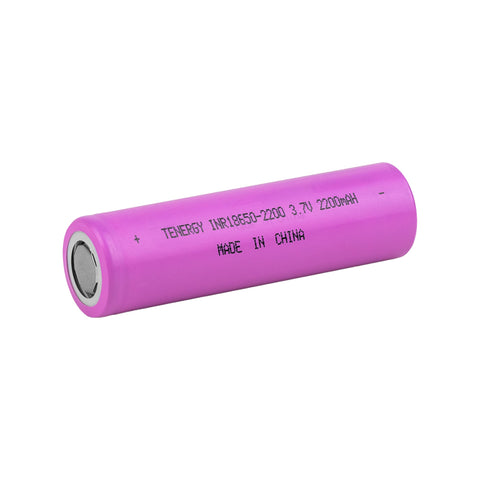

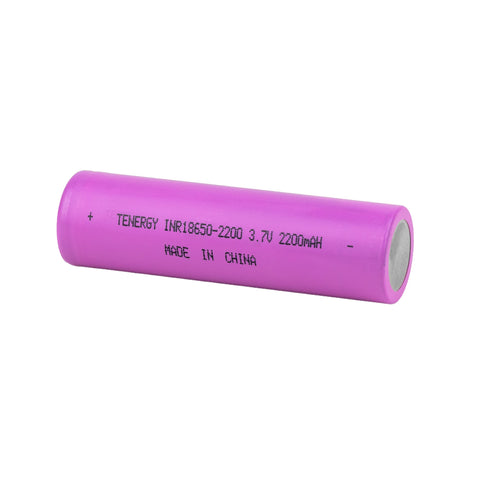

Shop the Tenergy Li-ion 18650 Cylindrical 3.7V 2200mAh Flat Top Rechargeable Battery - UL Listed. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- Nominal Voltage: Average 3.7V.
- Nominal Capacity: Typical 2200mAh.
- Battery tested based on International Electrotechnical Commission (IEC) standard to ensure capacity, quality and life time.
- Lithium-ion 18650 Cylindrical.
- Dimensions: Diameter: 18.2mm, Height: 64.8mm.
Summarized Features and Benefits:
- Li-ion 18650 Flat Top Cylindrical Rechargeable Battery
- 3.7V 2200mAh high capacity
- High energy density and lower weight than other rechargeable battery
- UL Listed.
- Battery tested based on International Electrotechnical Commission (IEC) standard to ensure capacity, quality, and life-span.
Technical Data:
- Chemistry: Li-ion
- Nominal Voltage (V): 3.7V
- Capacity (mAh): 2200
- Max Continuous Discharge Current: 4.4A
- Weight: 46
-
Dimensions:
- Height: 64.8mm
- Diameter: 18.2mm
- Charge Cut-Off Voltage: 4.20 ± 0.05V
- End Voltage: 3.0V
- Internal Impedance: ≤65mΩ
