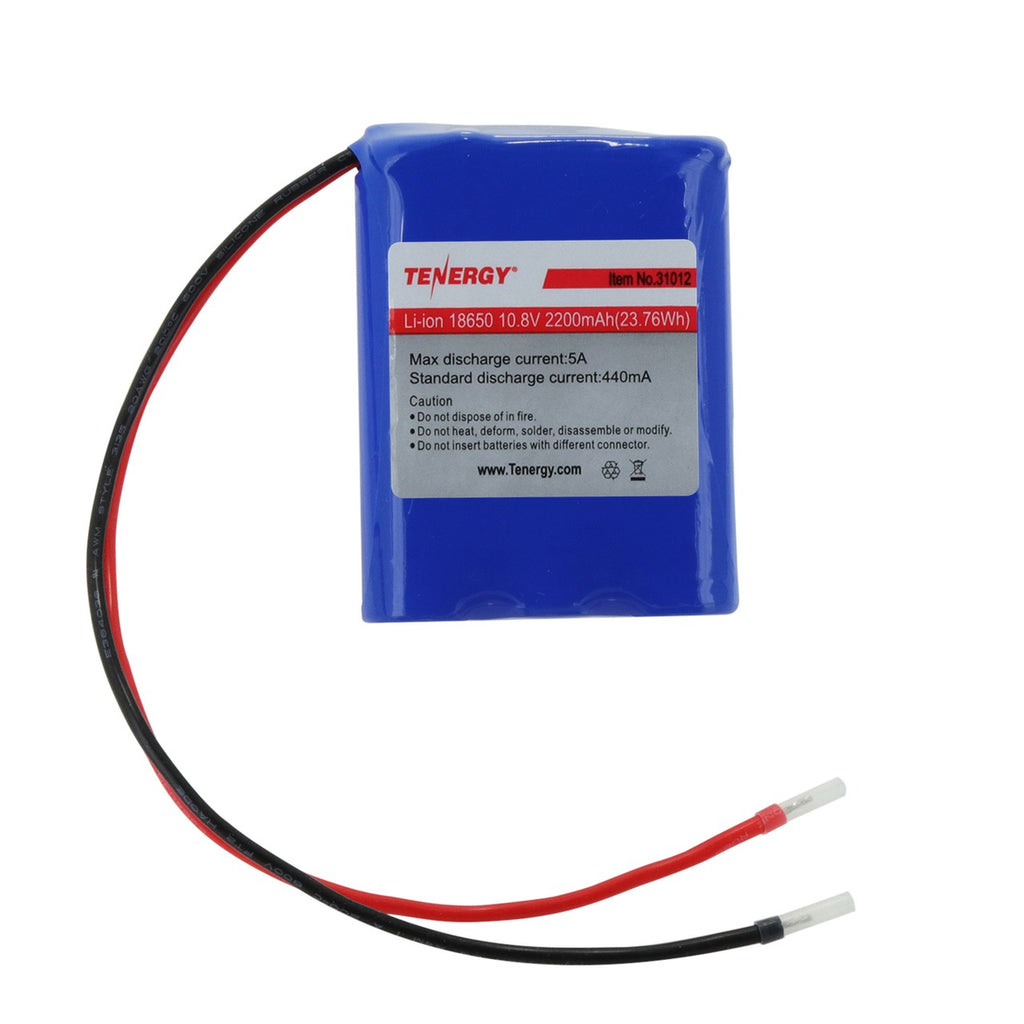

Shop the Tenergy Li-Ion 10.8V 2200mAh Rechargeable Battery Pack w/ PCB (3S1P, 23.76Wh, 4A Rate). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)10.8V
- Capacity (mAh)2200
- Max Continuous Discharge Current4A
- Weight150g
- Dimension73.5 x 56 x 19.5mm (LxWxT)
- ConnectorBare Leads
Product Highlights
- ChemistryLi-ion
- Nominal Voltage (V)10.8V
- Capacity (mAh)2200
- Max Continuous Discharge Current4A
- Weight150g
- Dimension73.5 x 56 x 19.5mm (LxWxT)
- ConnectorBare Leads
output
- TypePack
- ChemistryLi-ion
- Nominal Voltage (V)10.8V
- Capacity (mAh)2200
- Max Continuous Discharge Current4A
-
Battery Charging Current
- Standard0.4A
- Rapid1.1A
- Weight150g
- Dimension 73.5 x 56 x 19.5mm (LxWxT)
- ConnectorBare Leads
Supported Chargers:
| Item Number | Model/Description | Compatible Packs | Charging Current |
| 01211 | Tenergy TLP-2000 Li-Ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 0.5A |
| 01281 | Tenergy TLP-4000 Li-Ion Battery Pack Charger | 3.7V - 14.8V (1-4S) | 1.0A |
| 01340 | Tenergy Li-Ion 11.1V Battery Pack Charger | 11.1V (3S only) | 2.0A |
CAUTION:
- when working with Li-ion cells, they are very sensitive to charging characteristics and may explode if mis-handled.
- users should have enough knowledge on Li-Ion rechargeable batteries in charging, and discharging before use.
- we are not responsible for any damage caused by misuse or mishandling of these Li-Ion battery packs.
- it is strongly suggest that you use our Smart Li-Ion battery chargers to recharge the battery pack
- never use conventional DC adapter to charge the battery module - we are NOT responsible for any damage that is caused by improper charging.
- do not make parallel connection with more than three modules to avoid uneven charge.
