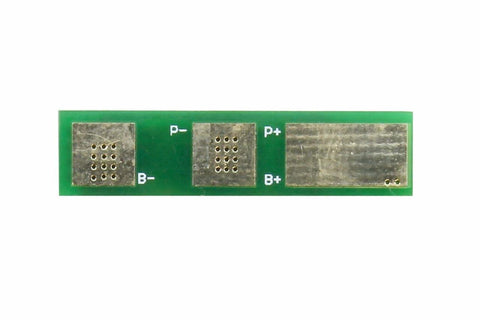

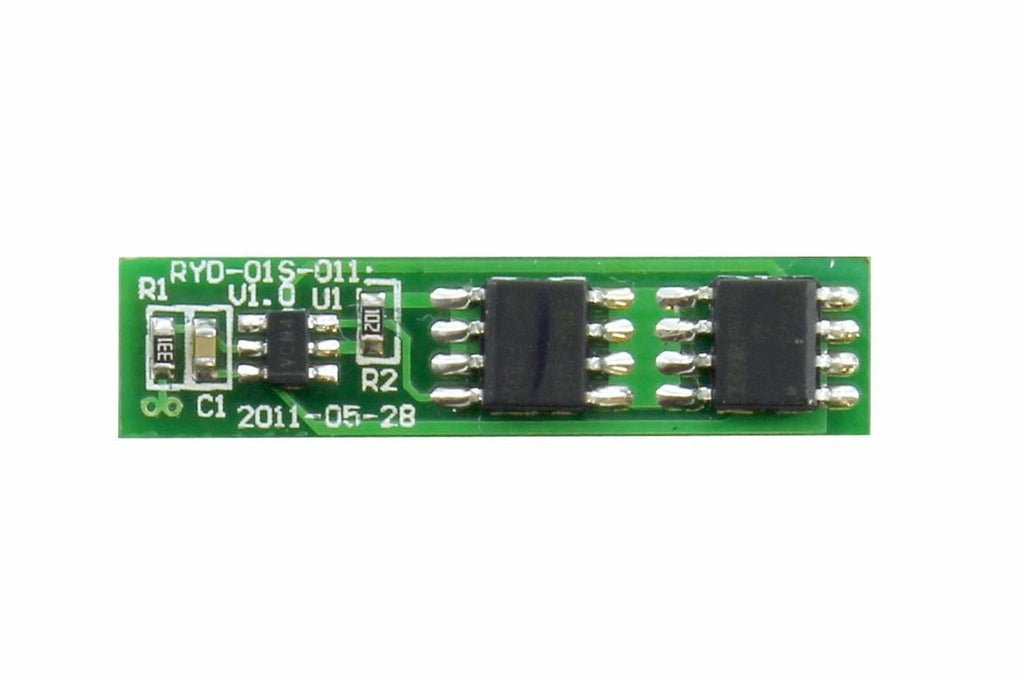

Tenergy 1S Li-ion 8.5A/18A PCB, discharging cut off voltage 2.8V (32195)

  • Sale
  • $9.59

Shop the Tenergy 1S Li-ion 8.5A/18A PCB, discharging cut off voltage 2.8V. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.

Special Order - Non-Cancellable - Non-Returnable - Additional Lead Time May Be Required On This Item

Product details and specifications

product highlights

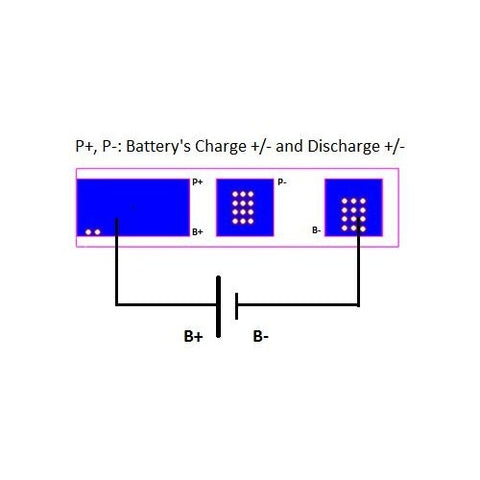

  • Protection Circuit Board Designed for 3.6V/3.7V 1S Li-ion battery pack building
  • Working current: 8.5A
  • Over discharge current cut-off: 18A
  • Over discharge voltage cut-off: 2.8A

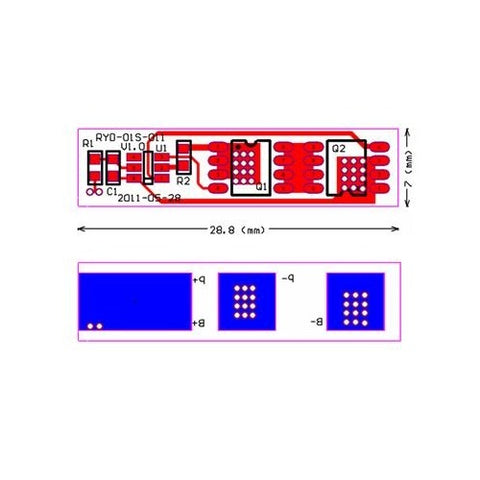

  • Dimensions : 28.8 x 7 x 2.5 mm
  • Protection Circuit Board Designed for 3.6V/3.7V 1S Li-ion battery pack building
  • Working current: 8.5A
  • Over discharge current cut-off: 18A
  • Over discharge voltage cut-off: 2.8A
  • Dimensions : 28.8 x 7 x 2.5 mm

Product Specifications:

Item Content Criterion
Over Charge Protection
  • Over charge detection voltage
  • Over charge detection delay time
  • Over charge release voltage
  • 4.25±0.05V
  • 1.0±0.3s
  • 4.05±0.05V
Over Discharge Protection
  • Over discharge detection voltage
  • Over discharge detection delay time
  • Over discharge releas voltage
  • Rated operational current
  • 2.80±0.10V
  • 20S±6mS
  • 3.00±0.75V
  • ≤8.5A
Over Current Protection
  • Over current detection current
  • Release condition
  • Detection delay time
  • 18.5±4A
  • Cut load
  • 12±4mS
Short Protection
  • Detection condition
  • Protection
  • Release condition
  • Exterior short circuit
  • Have
  • Cut short circuit
Balance
  • Balanced open voltage
  • Balanced release voltage
  • Balanced current
  • /
  • /
  • /
Temperature Protection
  • Operation temperature
  • Recovery temperature
  • /
  • /
Interior Resistance Main loop electrify resistance RSS≤35mΩ
Current Consumption Current consume in normal operation 8μA Max
NTC N/A /
Dimension (L*W*H) 28.8 x 7 x 2.5 mm
