Shop the Tenergy 12.8V 10Ah LiFePO4 Rechargeable Battery + FREE 12.8V 1.5A LiFePO4 Battery Charger (#01303) (DGR-A). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
Product Highlights
- 12V 10Ah lead-acid rechargeable batteries
- High drain, 25A discharge current
- Ultra light weight
- High-temperature working capability
- No memory effect
Product Highlights
- 12V 10Ah lead-acid rechargeable batteries
- High drain, 25A discharge current
- Ultra light weight
- High-temperature working capability
- No memory effect
Product Description:
This is a drop-in replacement for Lead-acid battery. It requires no change to a lead acid battery charging system. It can be placed in scooters, e-Bikes, wheelchairs, or anything that uses a sealed lead acid battery.
LIFEPO4 battery contains no poisonous lead, no acid, and do not create gasses during charge which regular Lead-Acid batteries do. Compared to lead-acid, LIFEPO4 batteries are super light (150mm x 60mm x 95mm), have much lower self-discharge, do not sulfate, and are environmentally friendly - making it the perfect replacement solution for lead acid batteries.

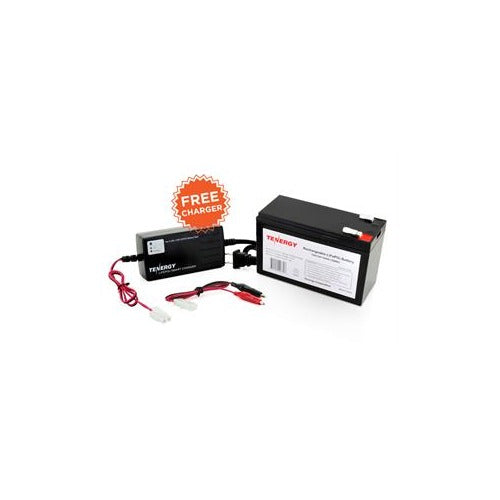

Includes:
- 1 x Tenergy 12.8V (4-Cell) Intelligent 1.5A LiFePO4 Battery Charger (Free)
- 1 x Tenergy 12.8V 10Ah LiFePO4 Rechargeable Battery (DGR-A)
output
Charger Specification:
-
Input
- 100V-240V /50-60Hz AC Power
- Standard USA AC power plug.
- Rated output voltage12.8V
- Output voltage8.0 V DC ~ 14.6V DC
- Suit with battery>1.2Ah 12.8V LiFePO4 4 cells
- Charge current1.5A ± 0.1A
- Pre-charge current0.5A ± 0.05A
- Dimension118mm x 59mm x 36.5mm
- Output voltage8.0 V DC ~ 14.6V DC
- Cut-off current0.2A ± 0.02A
- Rated AC input100~240VAC 50/60Hz
- Input voltage90~264VAC
- Rated input current0.195Arms
- Max. input power28W
- Weight287g
Battery Specification:
- Product Dimension66mm x 96mm x 152mm
- Voltage12V
- Capacity10Ah
- Weight2.67 lbs
- Maximum Discharge Current25A
Charger Caution:
- The charger is designed for indoor use only. Don't leave the charger unattended during charging.
- The charger should be positioned horizontally and work in well ventilated condition, avoid water and keep away from flammable explosive goods.
- Don't cover the charger when charging, ambient temperature shall not be more than 40oC
- Don't touch the plug.
- Don't leave the batteries and chargers on wood surface or carpet.
- Cut off the power supply before connect or disconnect the charger with batteries.
- Don't try to disassemble the charger, High voltage inside, danger!
Caution:
- Never leave charging battery pack unattended
- Keep the charger from heat, fire and/or water
- Never disassemble the product yourself
- Never charge non-rechargeable battery pack, or those more than s LiFePO4 cells
- Use Tenergy brand battery, otherwise, we hold no responsibility for any damage or injury
- Do not use this product when the environmental temperature is over 40°C
- Do not use this product in acid, alkali or corrosive circumstances
- Get this product out of children's reach
*Note: These "Lead-Acid replacement" LiFePO4 batteries are not designed to be connected in series or in parallel when in use. Such configurations exceed the usage parameters the battery components are designed for. Doing so may cause the cells inside to become unbalanced, and impose additional strain on the battery components, leading to battery damage and/or fire.
