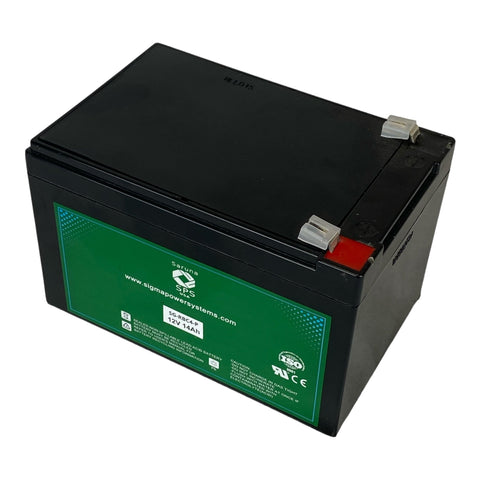

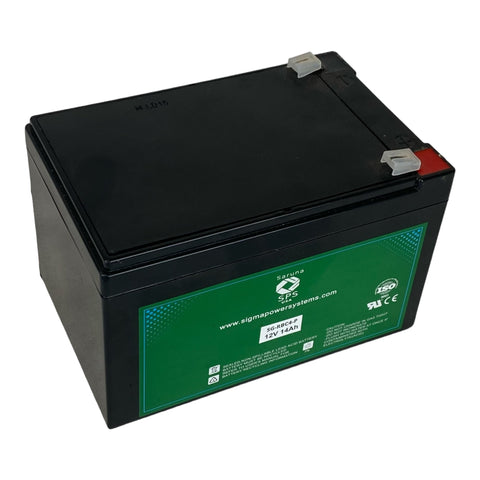

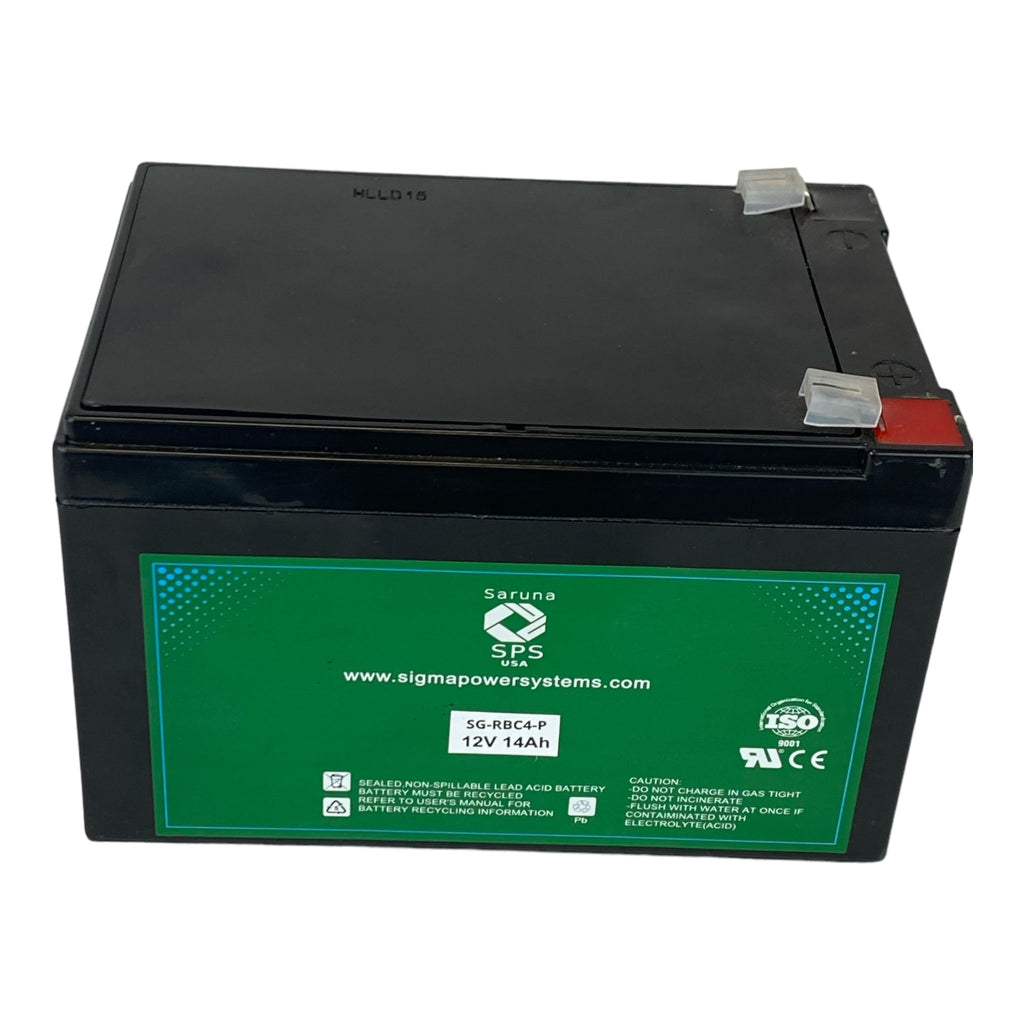

APC BP650SUS RBC4 compatible replacement. This Sigma 14Ah AGM battery is supplied as one 12V replacement for APC BP650SUS UPS equipment using RBC4. Match your original battery and connections before ordering.
RBC4 battery specifications
| APC cartridge reference | RBC4 / APCRBC4 |
|---|---|
| Supplier replacement reference | SG-RBC4P |
| Battery specification reference | SG12140T2 |
| Nominal voltage | 12V |
| Nominal capacity | 14Ah |
| Package quantity | 1 battery |
| Chemistry | Rechargeable AGM sealed lead-acid (SLA) |
| Terminal type | T2/F2, 0.250-inch (6.35 mm) blade |
| Battery dimensions (L × W × case H) | 151 × 98.5 × 95 mm; 101 mm overall height |
| Approximate net battery weight | 4.0 kg, excluding packaging |
Fit and installation
Check the complete UPS model, revision, battery reference, dimensions, terminal width and polarity. This listing supplies the battery shown; reuse suitable original UPS leads and hardware. Follow the UPS manufacturer’s replacement procedure. The UPS is not included.
This high-capacity version uses a 14Ah battery. Capacity alone does not guarantee a specific increase in runtime; backup time depends on load, temperature, battery condition and UPS settings.
Battery technical document
Download SG12140T2 manufacturer specifications (PDF). Dimensions and approximate net weight above follow this battery specification.
Related UPS batteries
Browse APC UPS replacement batteries. For matching help or volume pricing, email Sales@RocketDistributing.com with your UPS model, RBC number, battery-label photos and quantity.
APC is a trademark of Schneider Electric. This is an aftermarket compatible replacement supplied by Sigma Power Systems.
