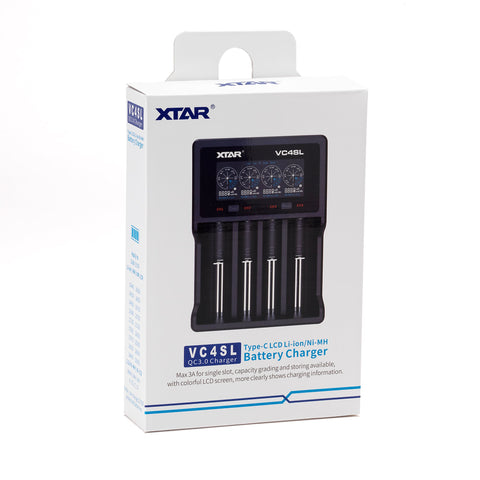

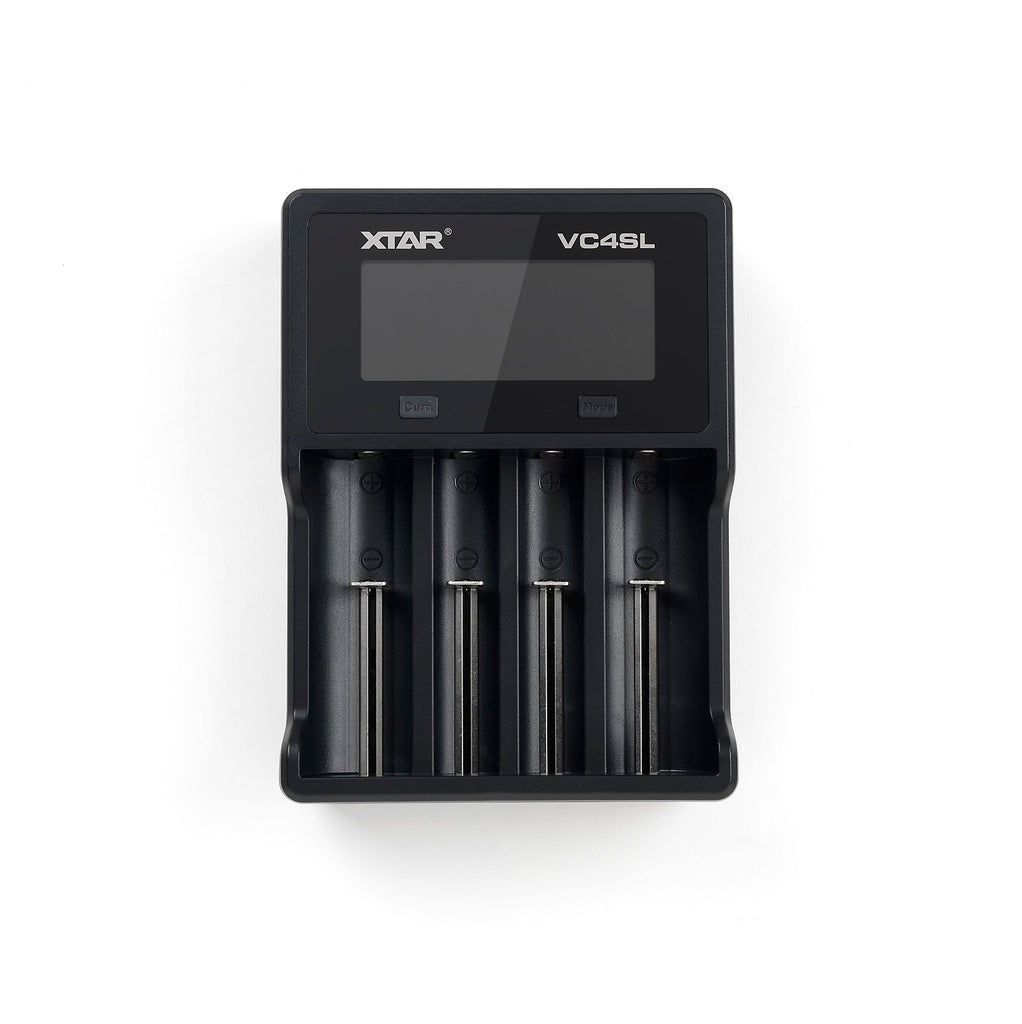

XTAR VC4SL 4 Channel Type-C Battery Charger is available from Rocket Distributing. Check the supported chemistry, charging voltage, battery dimensions and power-input requirements before choosing this charger.
Product specifications
| Brand | XTAR |
|---|---|
| Product reference | XTAR-VC4SL |
| Charging bays | 4 |

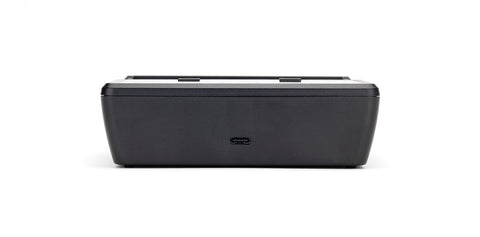

| Input | QC3.0, 5V 3A / 9V 2A, USB-C |
| Charging current | 3A × 1 / 2A × 2 / 1A × 4 / 0.5A × 4 |
| Li-ion charge termination voltage | 4.2V ±0.05V |
| Battery types | 3.6V/3.7V Li-ion and supported 1.2V Ni-MH/Ni-Cd sizes |
| Protected 21700 support | Listed by supplier; confirm the cell’s full length against the charger manual |
Choose the right battery and charging mode
Confirm that the charger supports the battery’s chemistry and required charge termination voltage. Also check the full cell length, diameter and terminal style. Protected cells can be longer than bare cells. Do not charge non-rechargeable batteries.
Browse batteries by size, voltage and protection and compare their specifications with this charger’s documentation.
Technical documents
Order or request quantity pricing
Email Sales@RocketDistributing.com with product reference XTAR-VC4SL, quantity, delivery location and timing. For compatibility help, include the equipment model and battery or charger label.
