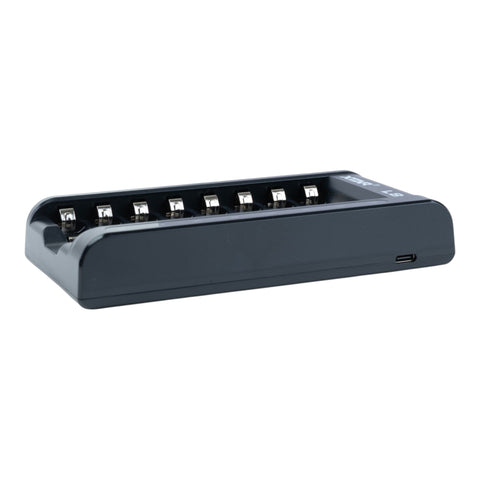

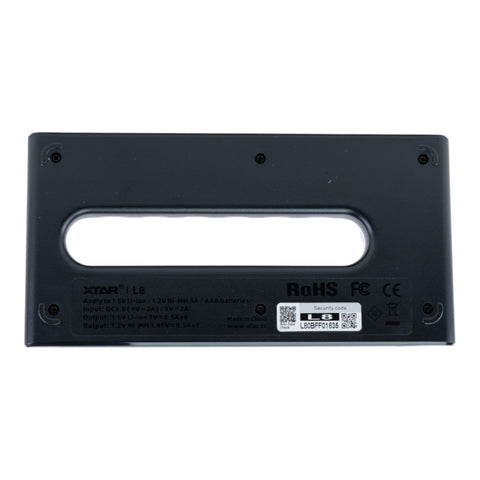

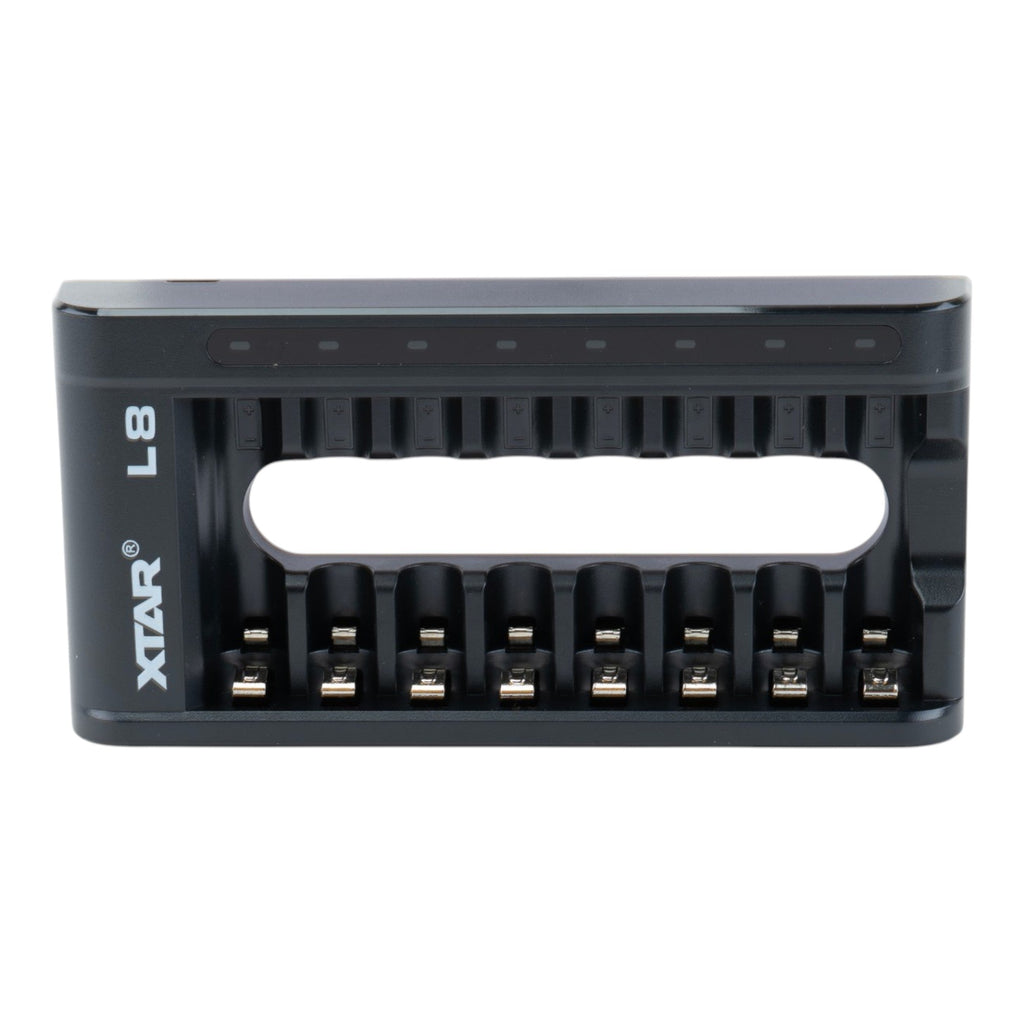

XTAR L8 8 Channel AA/AAA lithium & NiMh Battery Charger is available from Rocket Distributing. Check the supported chemistry, charging voltage, battery dimensions and power-input requirements before choosing this charger.
Product specifications
| Brand | XTAR |
|---|---|
| Product reference | XTAR-L8 |
| Model | L8 |
| Compatible Battery Size | AA / AAA |
| Compatible Battery Type | 1.5V Li-ion and 1.2V Ni-MH |
| Number of Slots | 8 |
| Power Input | DC 5V 2.1A / QC3.0 9V 2A, USB-C |
| Charging Current | 0.5A x 8 (requires QC3.0 18W adapter for full 8-slot speed) |
| Charging Cutoff Voltage (NiMH) | 1.45+/-0.1V |
| Charging Cutoff Current (Li-ion) | 100mA or less |
| Battery Indicator | Red = charging / Green = fully charged (per slot) |
| Over-Discharged Battery Recovery | Yes |
| Smart Battery Recognition | Yes — mis-charge prevention |
| Safety Features | Reverse polarity, over-current, over-voltage, over-charge, short-circuit, auto-stop after full charge |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 153mm (L) x 76.5mm (W) x 27.6mm (H) |
| Weight | 118g |

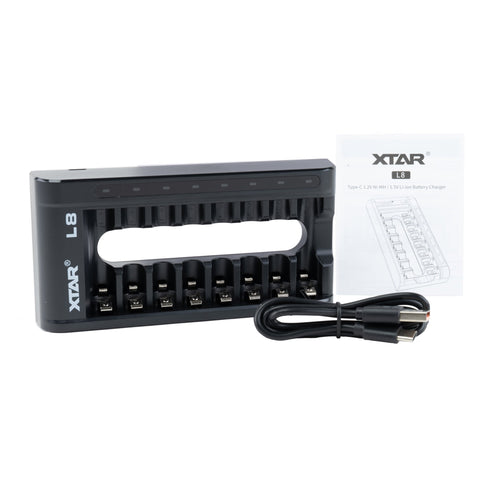

| Package Contents | L8 charger, USB-A to USB-C cable, user manual |
| User Manual | View User Manual |
Choose the right battery and charging mode
Confirm that the charger supports the battery’s chemistry and required charge termination voltage. Also check the full cell length, diameter and terminal style. Protected cells can be longer than bare cells. Do not charge non-rechargeable batteries.
Browse batteries by size, voltage and protection and compare their specifications with this charger’s documentation.
Order or request quantity pricing
Email Sales@RocketDistributing.com with product reference XTAR-L8, quantity, delivery location and timing. For compatibility help, include the equipment model and battery or charger label.
