XTAR L4 Pro 4 Channel AA/AAA lithium & NiMh Smart Charger is available from Rocket Distributing. Check the supported chemistry, charging voltage, battery dimensions and power-input requirements before choosing this charger.
Product specifications
| Brand | XTAR |
|---|---|
| Product reference | XTAR-L4-PRO |
| Model | L4 Pro |
| Compatible Battery Size | AA / AAA |
| Compatible Battery Type | 1.5V Li-ion and 1.2V Ni-MH |
| Number of Slots | 4 |

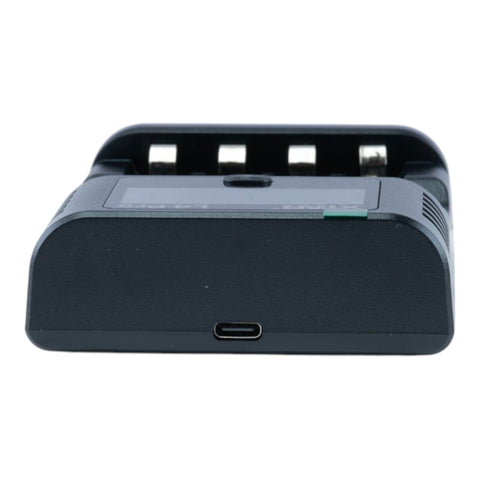

| Power Input | DC 5V 2A, USB-C port |
| Charging Current | 0.5A x 1 / 0.5A x 4 (independent per slot) |
| Activation Current | 200+/-50mA |
| Charging Cutoff (Li-ion) | N/A, 100mA or less |
| Charging Cutoff (NiMH) | 1.45+/-0.1V, N/A |

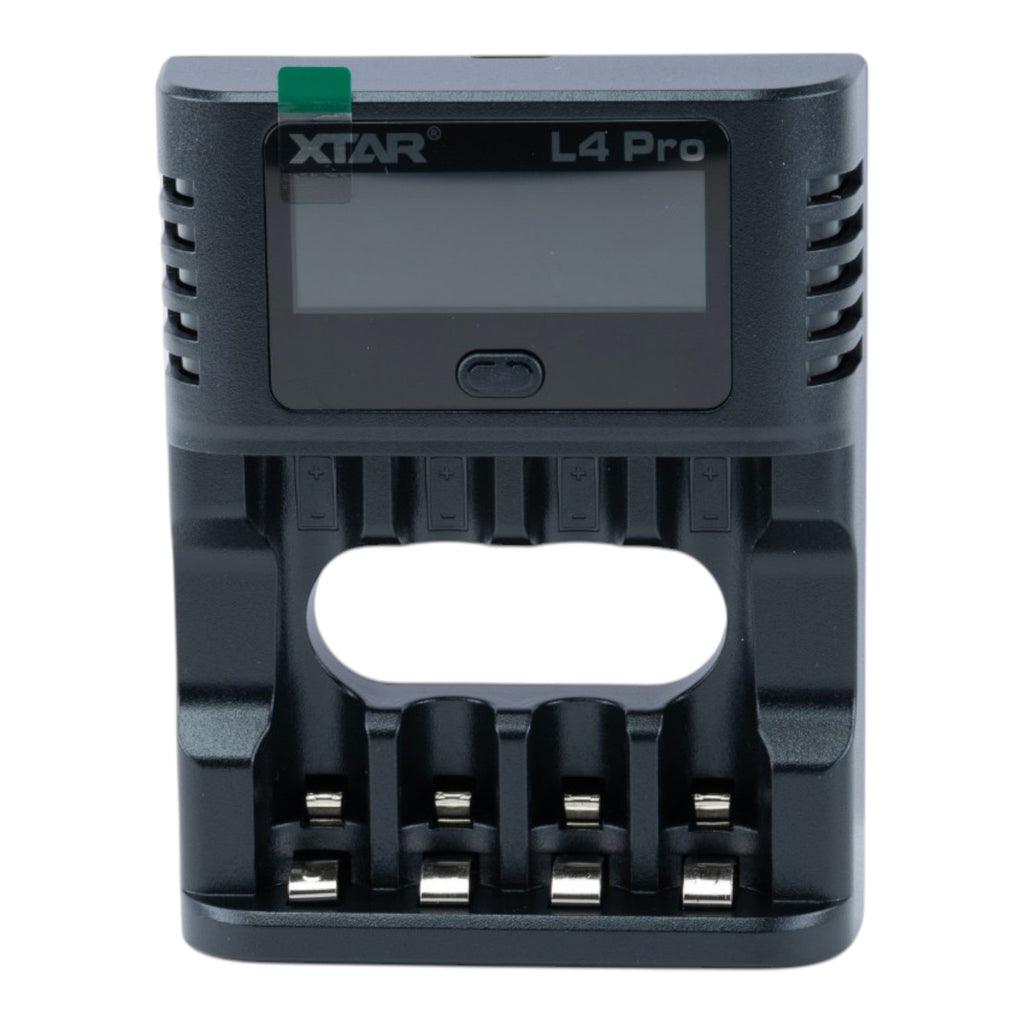

| Display | HD LCD with battery level bar indicators |
| NiMH Refresh Mode | Quick Refresh and Smart Deep Refresh |
| Over-Discharged Battery Recovery | Yes — micro-current activation |
| Housing Material | Fireproof ABS+PC/V0 |
| Safety Features | Over-discharged battery activation, auto-stop after full charge, reverse polarity, over-current, over-voltage, over-charge, short-circuit protection |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 60°C |
| Dimensions | 80mm (L) x 102mm (W) x 27.5mm (H) |
| Weight | 87g |
| User Manual | View User Manual |
Choose the right battery and charging mode
Confirm that the charger supports the battery’s chemistry and required charge termination voltage. Also check the full cell length, diameter and terminal style. Protected cells can be longer than bare cells. Do not charge non-rechargeable batteries.
Browse batteries by size, voltage and protection and compare their specifications with this charger’s documentation.
Technical documents
Order or request quantity pricing
Email Sales@RocketDistributing.com with product reference XTAR-L4-PRO, quantity, delivery location and timing. For compatibility help, include the equipment model and battery or charger label.
