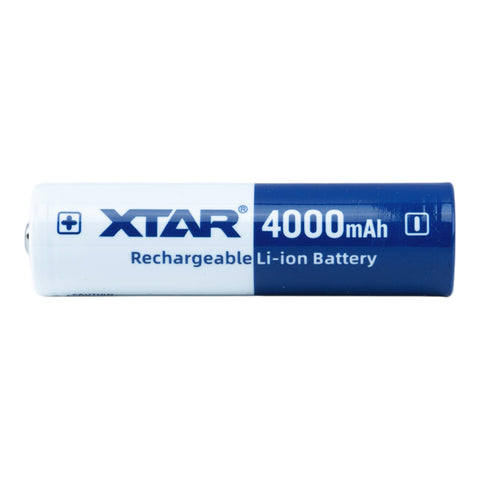

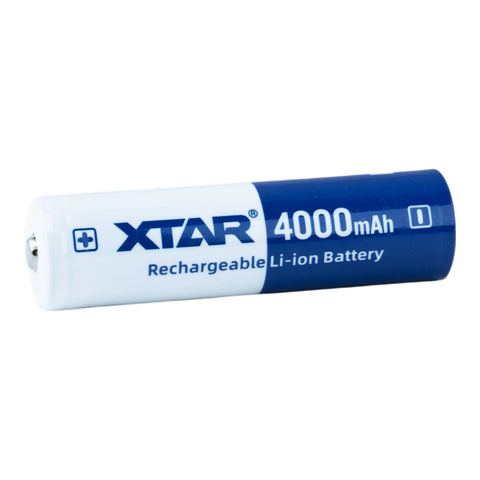

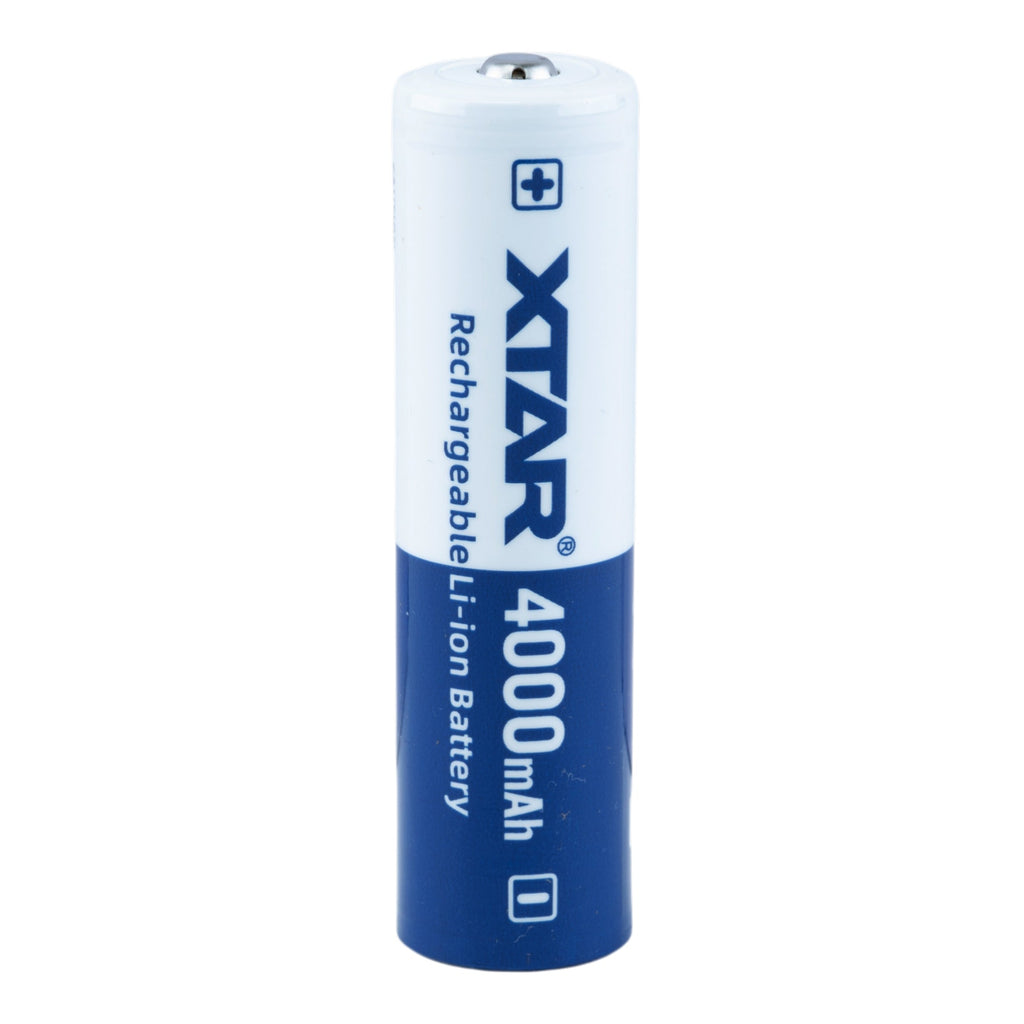

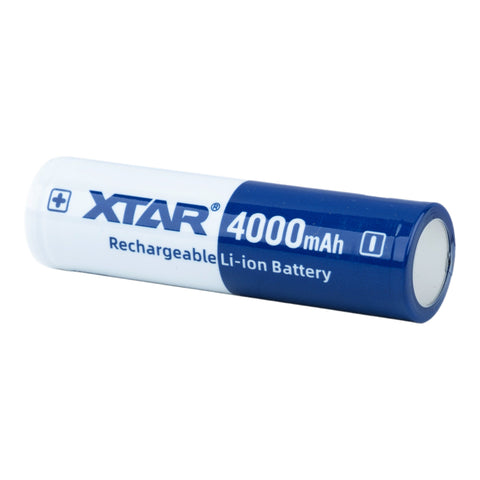

XTAR 18650 4000mAh - Protected Button Top is available from Rocket Distributing. Match the listed size, material and connections to your battery or equipment.
Product specifications
| Brand | XTAR |
|---|---|
| Product reference | XTAR-18650-40-PRO |
| Model | 18650 4000mAh |
| Nominal Capacity | 4000mAh |
| Nominal Voltage | 3.6V |
| Continuous Discharge Rating (Max.) | 10A |
| Protected | Yes |
| Positive Terminal | Button Top |
| Cycles | 600+ |
| Storage Temperature | -20~40℃ (Best ≤25℃) |
| Dimensions | φ18.4±0.3 × H69.2±0.5 mm |
| Net Weight | ≤50g |
Check your application
Confirm dimensions, electrical ratings and connection requirements before installation. Product photos do not establish compatibility with a particular battery pack or device.
Technical documents
Where a document describes the underlying bare cell, its dimensions and electrical limits do not automatically apply to the protected assembly. Match the complete protected battery and its protection-circuit limits to your equipment.
Order or request quantity pricing
Email Sales@RocketDistributing.com with product reference XTAR-18650-40-PRO, quantity, delivery location and timing. For compatibility help, include the equipment model and battery or charger label.
