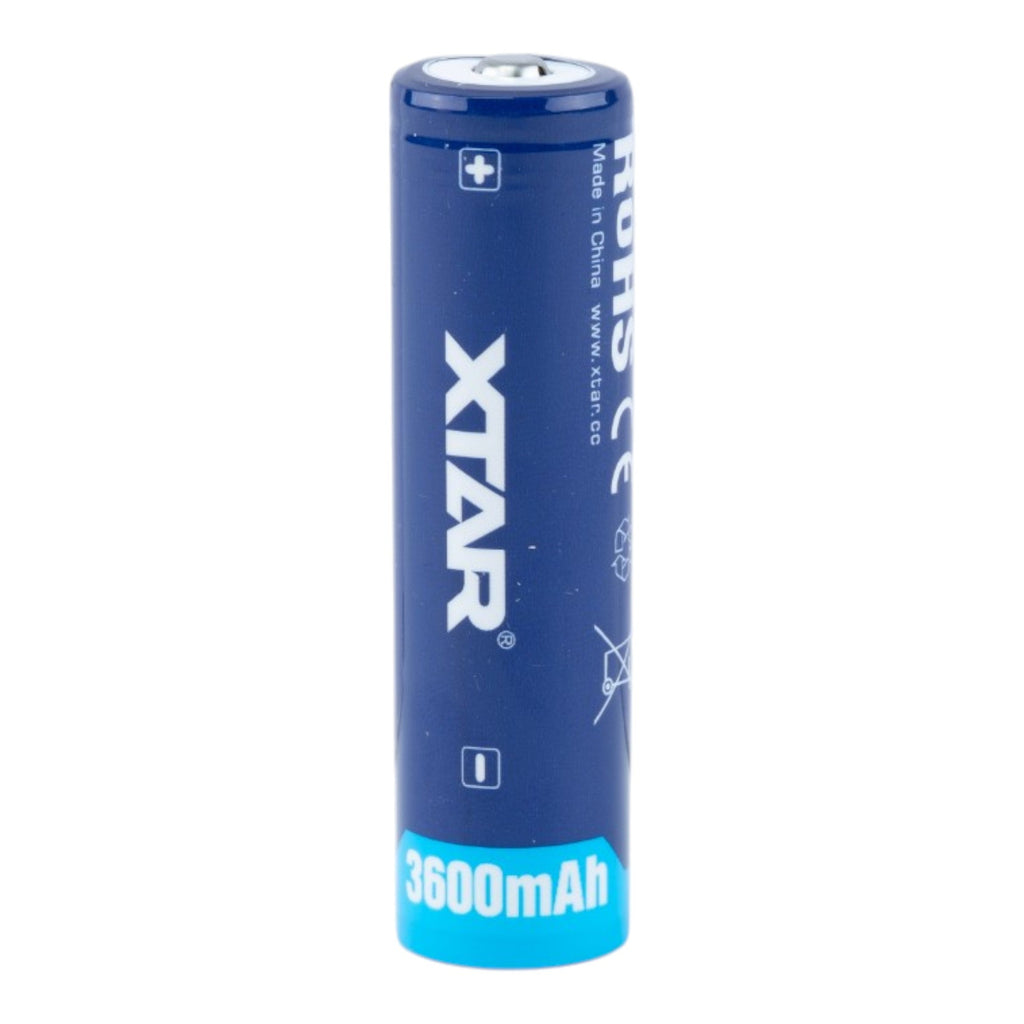

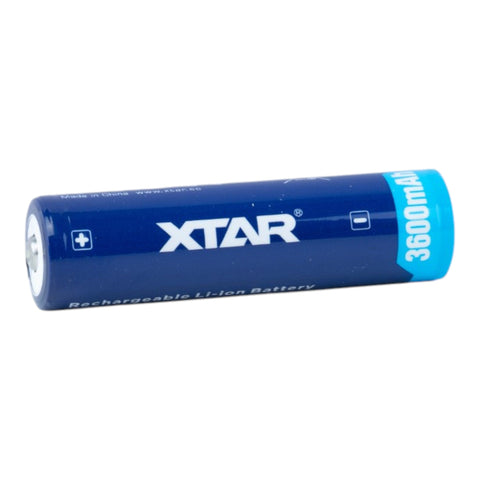

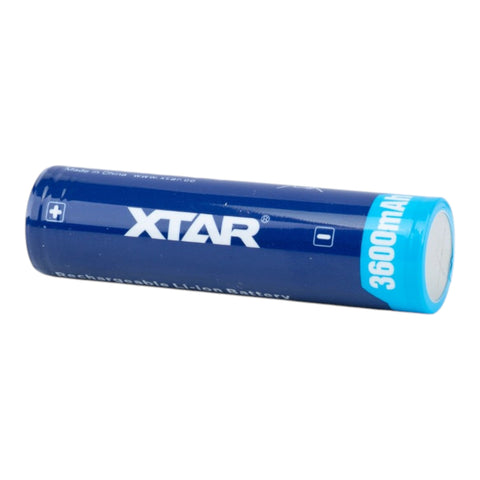

XTAR 18650 3600mAh 10A Battery - Protected Button Top is available from Rocket Distributing. Compare the cell specifications, terminal shape and protection requirements with your device or battery-pack design.
Special Order - Non-Cancellable - Non-Returnable - Additional Lead Time May Be Required On This Item.
Product specifications
| Brand | XTAR |
|---|---|
| Product reference | XTAR-18650-36-PRO |
| Battery Type | 18650 Lithium-Ion |
| Nominal Capacity | 3600mAh |
| Nominal Voltage | 3.6V |
| Max Continuous Discharge | 10A |
| Cycle Life | 500+ |
| Self-Discharge | Low |
| Protected | Yes (PCB) — overcharge, over-discharge, short circuit |
| Battery Top | Button Top |
| Approx. Dimensions | 18.3mm x 69.2mm |
| Approx. Weight | 48g |
| Rechargeable | Yes |
| Button Top Terminal | Positive button top terminal for broad device compatibility — longer than a standard flat top unprotected 18650. Verify fit before purchase. |
Fit, protection and charging
This protected cell includes a protection circuit. Protected assemblies can be longer than bare cells of the same nominal size. Check the complete dimensions and terminal shape against your device.
A matching cell size alone does not establish compatibility. Follow the cell and equipment documentation for charging voltage, current and temperature limits. Do not use damaged cells or carry loose cells with metal objects.
Compare battery chargers, then confirm the exact chemistry, charging voltage and physical fit in the charger manual.
Order or request quantity pricing
Email Sales@RocketDistributing.com with product reference XTAR-18650-36-PRO, quantity, delivery location and timing. For compatibility help, include the equipment model and battery or charger label.
