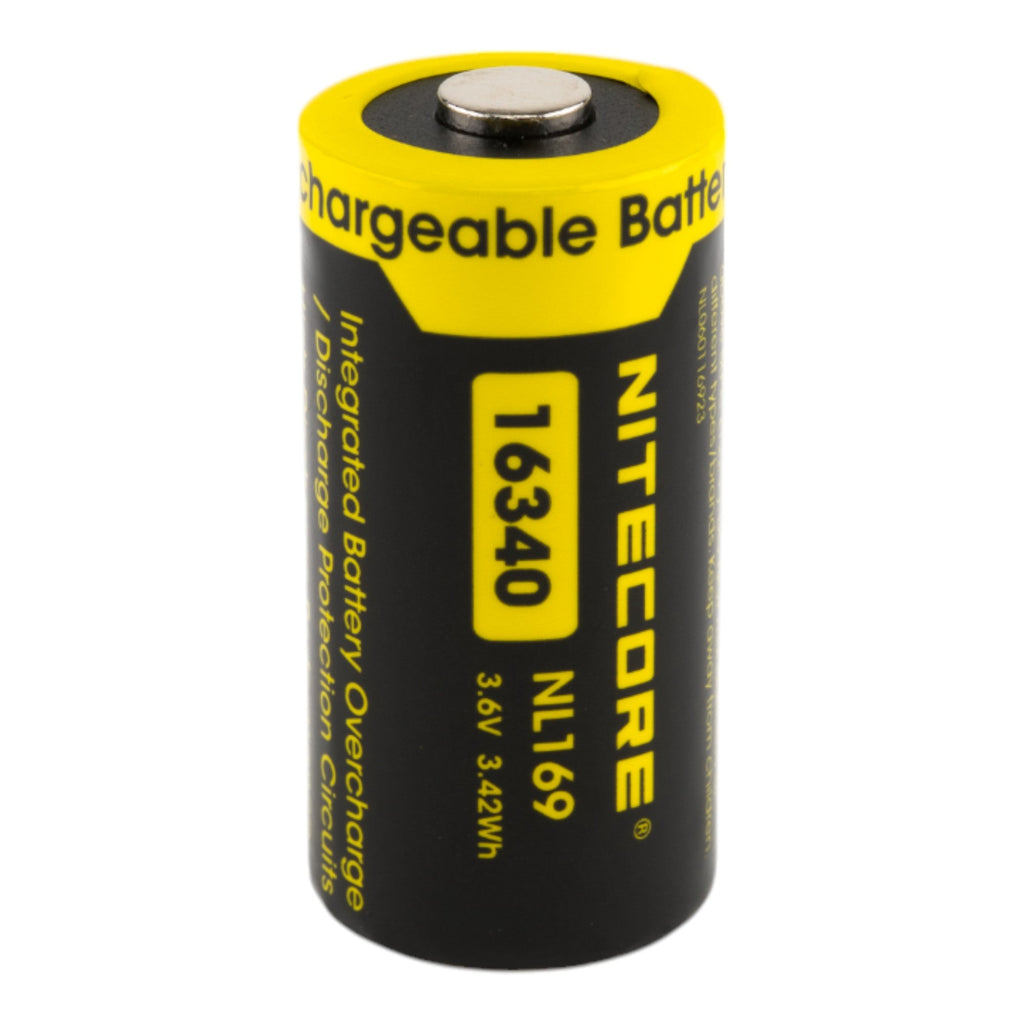

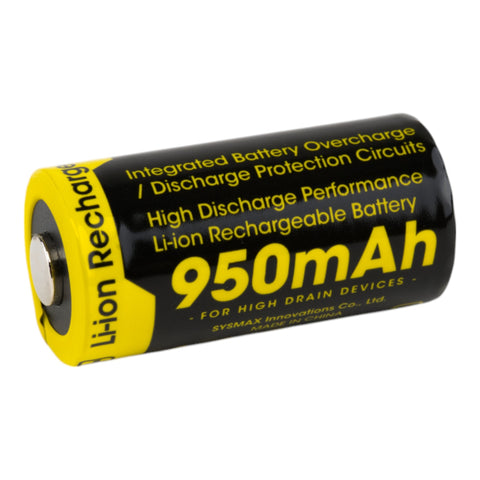

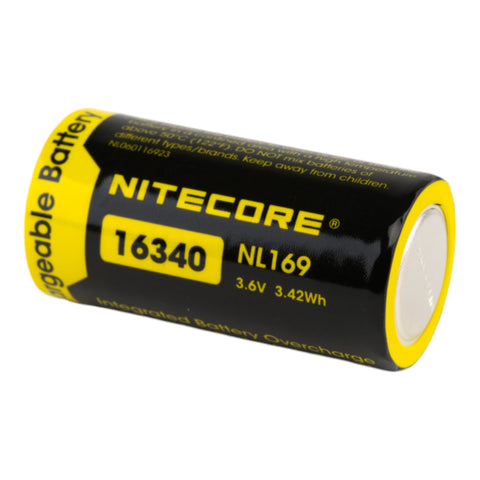

Nitecore NL169 16340 950mAh Battery - Protected Button Top is available from Rocket Distributing. Compare the cell specifications, terminal shape and protection requirements with your device or battery-pack design.
Product specifications
| Brand | Nitecore |
|---|---|
| Product reference | NITE-NL169 |
| Model | NL169 |
| Size | RCR123 / 16340 |
| Positive Terminal | Button Top |
| Nominal Capacity | 950mAh |
| Continuous Discharge Rating (max) | 2A |
| Protected | Yes (PCB) |
| Rechargeable | Yes |
| Approx. Dimensions | 16.5mm x 36.2mm |
| Approx. Weight | 20g |
| High-Capacity 16340 Battery | 950mAh lithium-ion cell for extended performance. |
| Consistent Output | Rated for controlled 2A continuous discharge. |
Fit, protection and charging
This protected cell includes a protection circuit. Protected assemblies can be longer than bare cells of the same nominal size. Check the complete dimensions and terminal shape against your device.
A matching cell size alone does not establish compatibility. Follow the cell and equipment documentation for charging voltage, current and temperature limits. Do not use damaged cells or carry loose cells with metal objects.
Compare battery chargers, then confirm the exact chemistry, charging voltage and physical fit in the charger manual.
Order or request quantity pricing
Email Sales@RocketDistributing.com with product reference NITE-NL169, quantity, delivery location and timing. For compatibility help, include the equipment model and battery or charger label.
