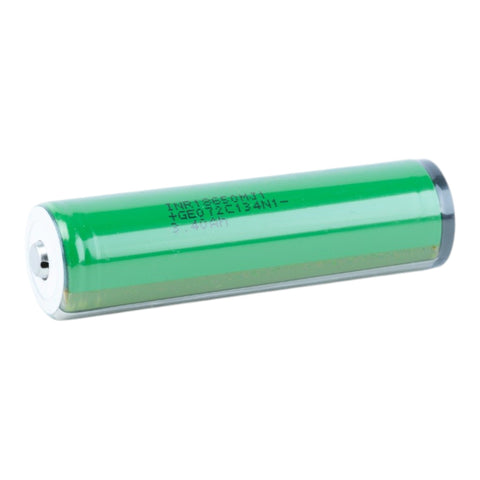

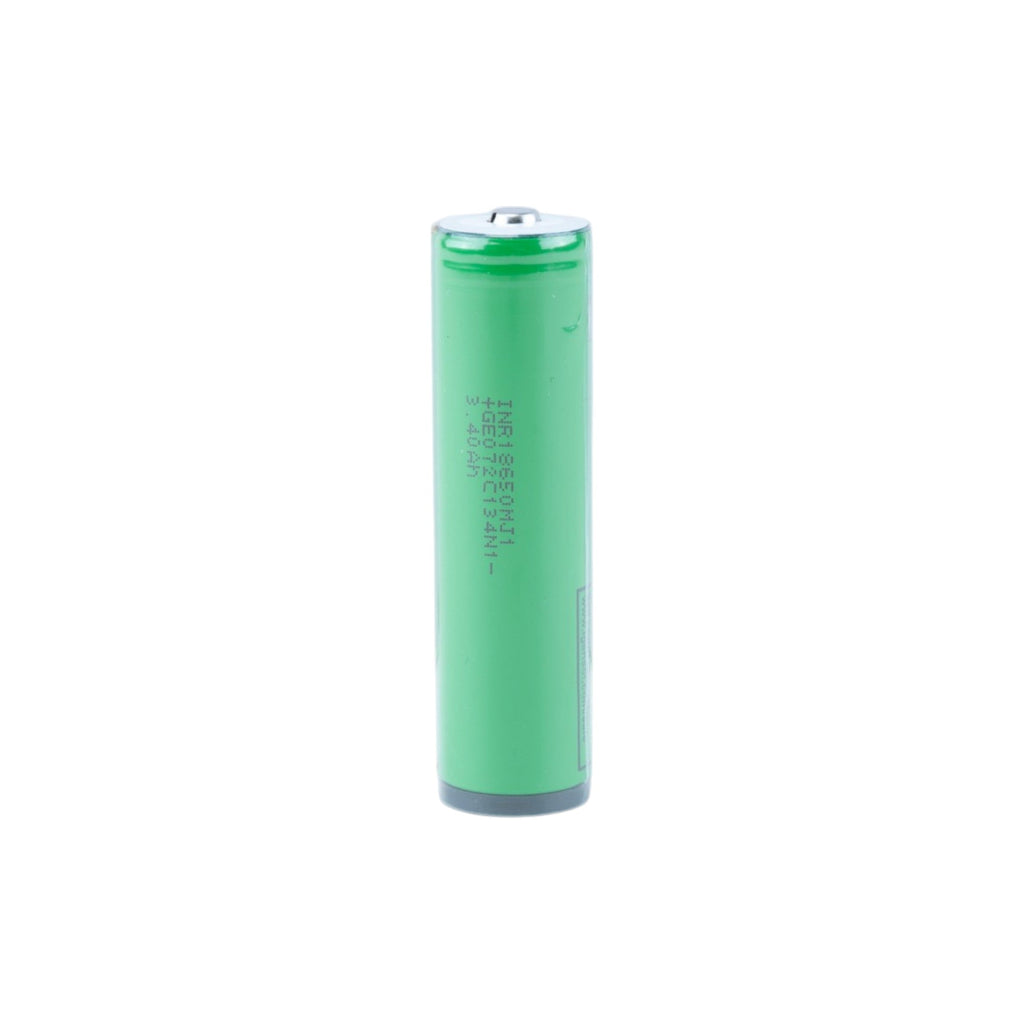

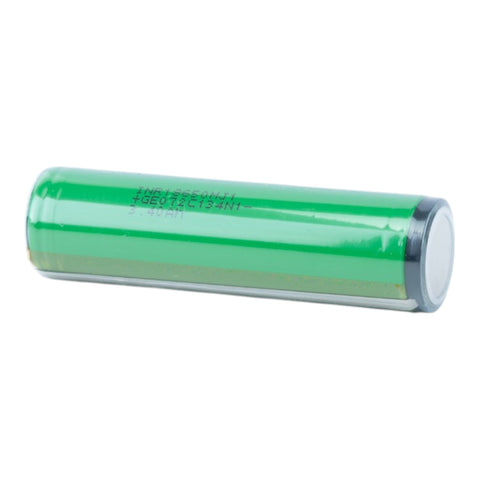

LG MJ1 18650 3500mAh protected button-top battery. This rechargeable lithium-ion battery uses an LG Chem MJ1 cell with a button top and protection circuit added by a third-party manufacturer. It is sold as one battery.
Protected battery specifications
| Base cell | LG Chem MJ1 |
|---|---|
| Product reference | LG-MJ1-PRO |
| Cell format | 18650; protected finished assembly is longer than an unprotected flat-top cell |
| Nominal capacity | 3500mAh |
| Nominal voltage | 3.6V |
| Maximum charge voltage | 4.2V |
| Supplier-listed maximum continuous discharge | 10A; follow the finished battery and equipment operating limits |
| Positive terminal | Button top |
| Protection | Third-party PCB: supplier lists overcharge, over-discharge, over-current and short-circuit protection |
| Package quantity | One battery |
Check protected-cell fit
Use only in equipment that accepts protected button-top 18650 batteries. The added PCB and button top increase the finished length. A device that accepts an unprotected 18650 may not accept this battery. Confirm the finished battery dimensions and contact arrangement against your device manual before ordering; contact us if your compartment has a tight fit.
Charging and handling
Use a lithium-ion charger specified for 4.2V charging and protected button-top cells. Check the charger’s accepted battery length and charge-current limits. PCB protection does not replace the charging controls or protection required by a multi-cell battery-pack design. Do not remove the wrapper or protection circuit. Keep batteries in an insulating case and replace any battery with damaged wrapping or terminals.
Related cells and charging equipment
Browse protected 18650 cells or compare battery chargers. Confirm chemistry, charge voltage, current and physical fit before selecting a charger.
Order or request volume pricing
Email Sales@RocketDistributing.com with reference LG-MJ1-PRO, your device model, required quantity and delivery location.
