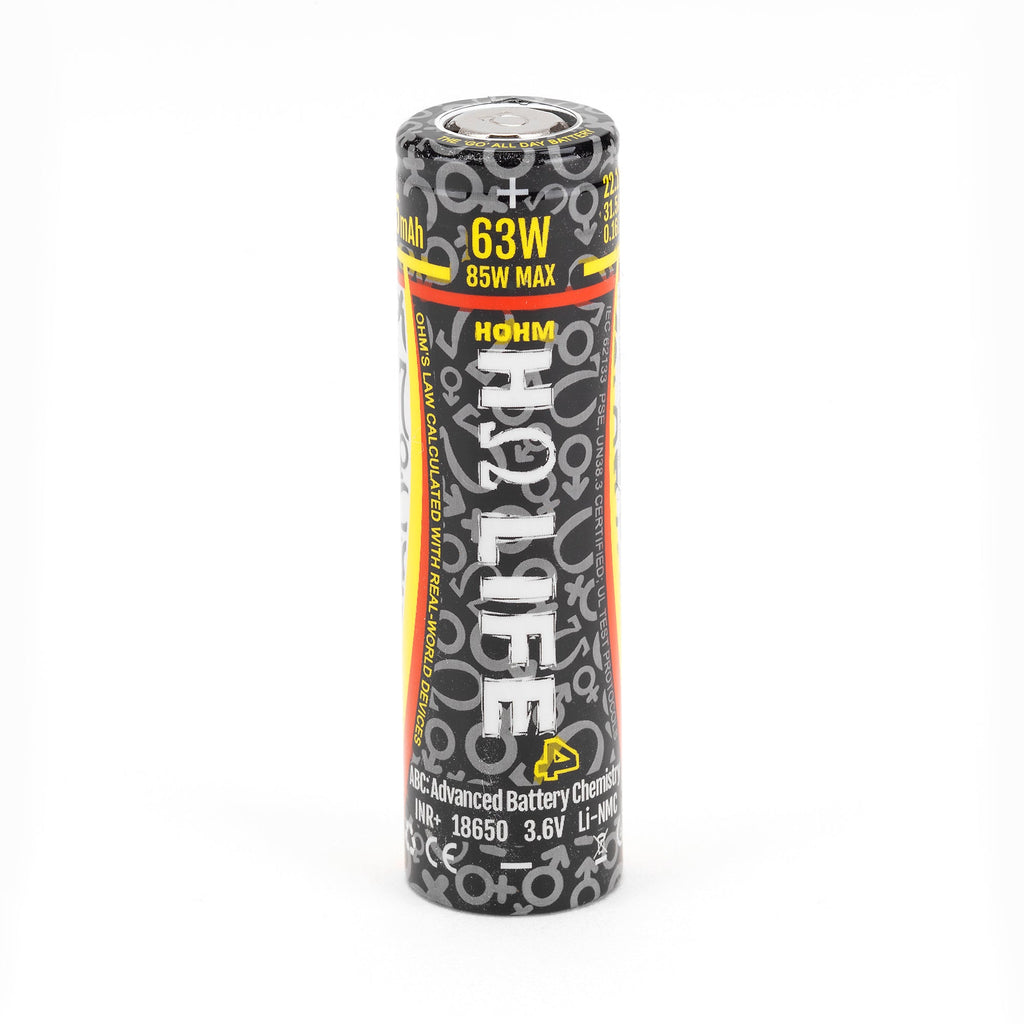

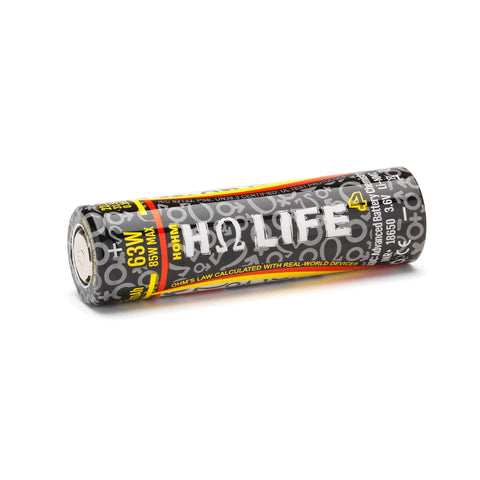

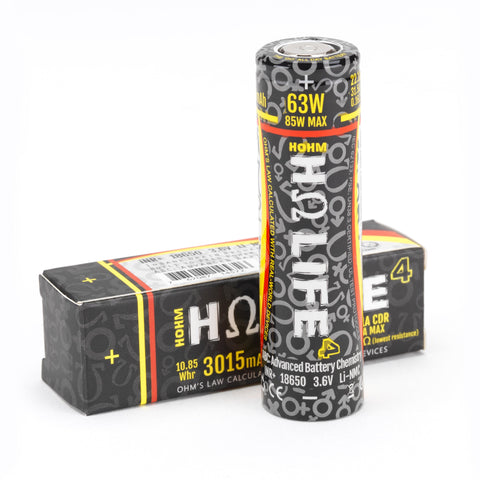

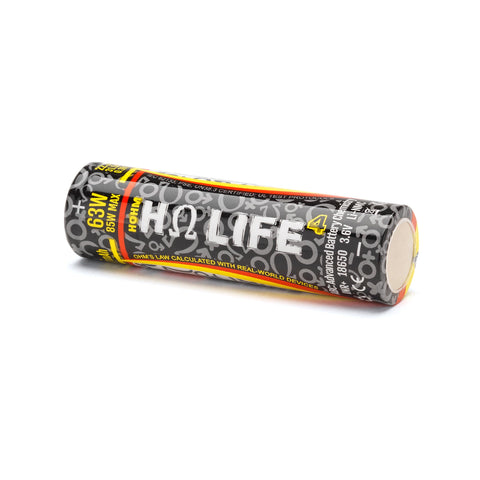

Hohm Tech LIFE4 18650 3015mAh Battery – Unprotected is a rechargeable 3.6V lithium-ion flat-top cell, sold individually. It has no built-in protection circuit and requires appropriate protection in the battery pack or equipment.
Battery specifications
| Manufacturer | Hohm Tech |
|---|---|
| Model | LIFE4 / HTIL4 |
| Cell size | 18650 |
| Nominal capacity | 3015mAh |
| Minimum capacity | 2955mAh |
| Nominal voltage | 3.6V |
| Maximum charge voltage | 4.2V |
| Standard charge | 1.25A constant current, then 4.2V constant voltage to 50mA termination |
| Standard discharge cutoff | 2.5V; use the higher cutoff specified for high-rate discharge |
| Continuous discharge rating | 22.1A with temperature monitoring and 80°C temperature cutoff, per manufacturer specification; higher pulse ratings are not a continuous rating |
| Dimensions | 18.37 ± 0.15mm diameter × 65.0 ± 0.2mm height, per manufacturer sheet |
| Cell weight | 49.9 ± 0.8g |
| Charge temperature | 0°C to 50°C cell surface temperature |
| Discharge temperature | −20°C to 80°C cell surface temperature |
| Terminal | Flat top |
| Protection | Unprotected; external protection required |
| Package quantity | One cell |
Charging, protection and fit
Use a charging system specified for this cell’s lithium-ion chemistry and 4.2V maximum charge voltage. Follow the cell documentation for current, temperature and discharge limits. Battery size alone does not establish compatibility: check the complete cell dimensions, flat-top contact and protection requirements.

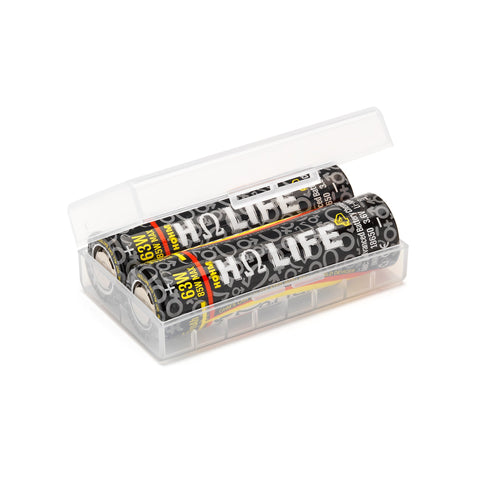

Keep individual cells in an insulating battery case. Do not use a cell with a damaged wrapper or insulator, or carry loose cells with metal objects.
Manufacturer specification sheet
Download Hohm LIFE4 specifications (PDF). Read the full test conditions and operating limits before selecting this cell.
Related cells and charging equipment
Browse 18650 cells or compare battery chargers. Confirm the charger’s chemistry, voltage, current and physical fit in its manual before purchase.
For fit questions or volume pricing, email Sales@RocketDistributing.com with product reference HOHM-18650-LIFE, quantity and equipment requirements.
