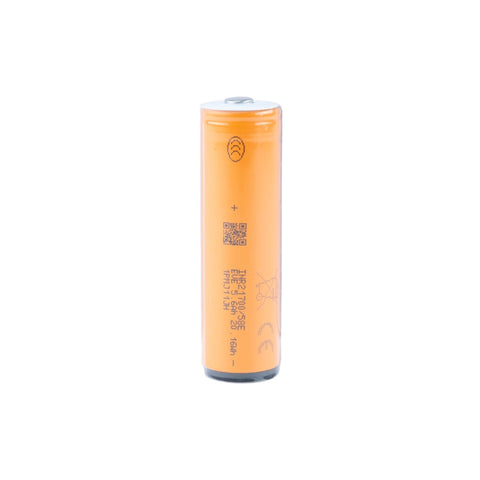

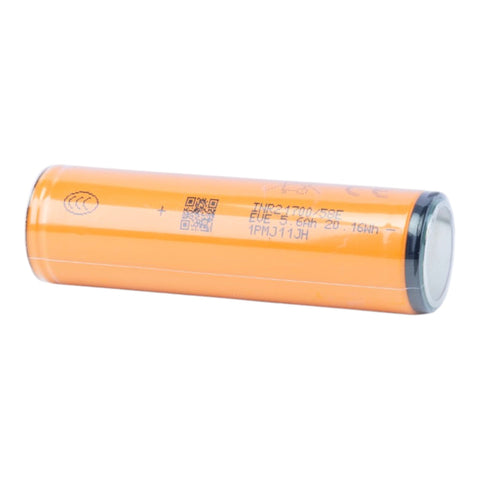

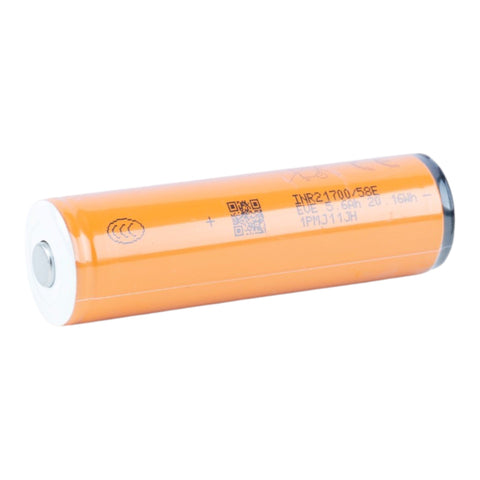

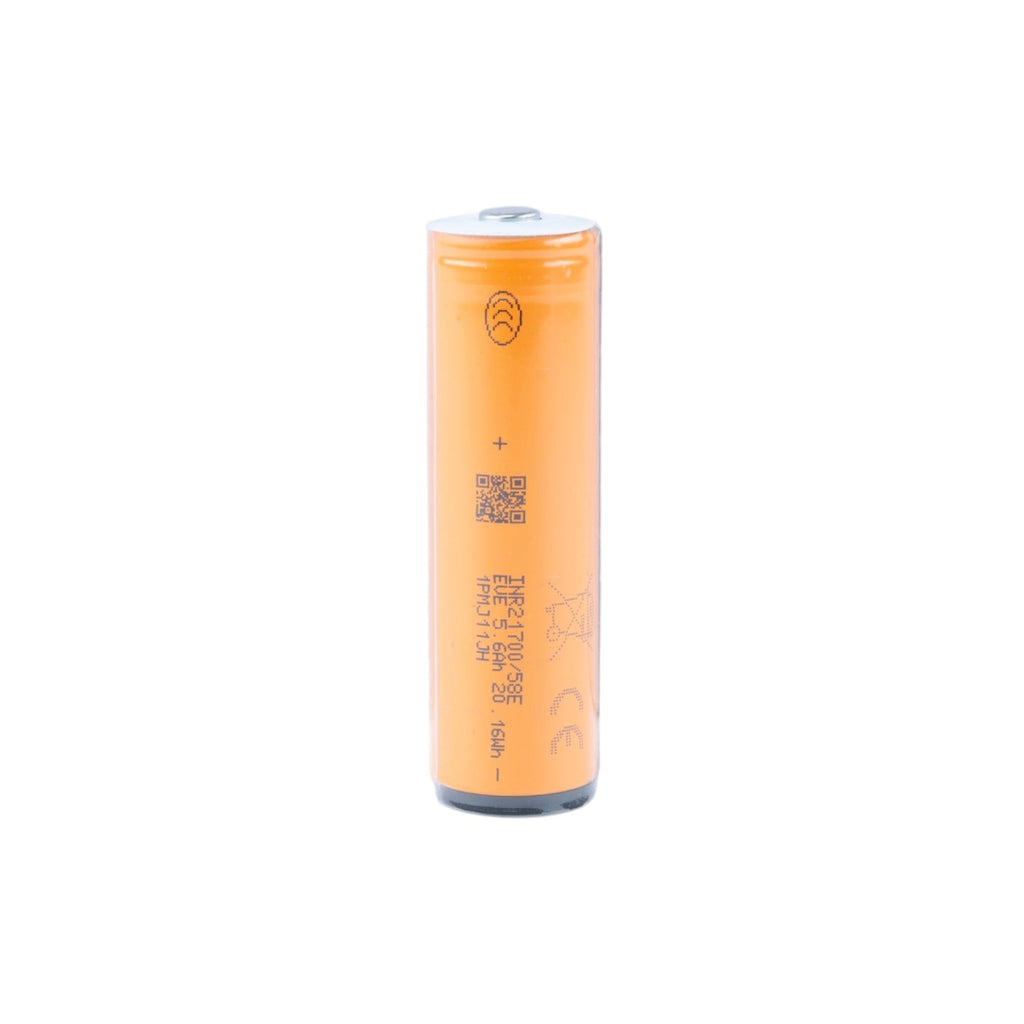

EVE 58E 21700 5700mAh 16.8A Protected Button Top is available from Rocket Distributing. Match the listed size, material and connections to your battery or equipment.
Product specifications
| Brand | EVE Energy |
|---|---|
| Product reference | EVE-58E-PRO |
| Model | INR21700-58E |
| Battery Type | 21700 Lithium-Ion |
| Nominal Capacity | 5700mAh |
| Minimum Capacity | 5600mAh |
| Nominal Voltage | 3.6V |
| Maximum Charge Voltage | 4.20V |
| Discharge Cut-off Voltage | 2.5V |
| Maximum Discharge Current | 16.8A |
| Standard Charge Current | 1.12A (CCCV) |
| Maximum Charge Current | 5.6A |
| Protected | Yes (PCB) — overcharge, over-discharge, over-current, short circuit |
| Battery Top | Button Top |
| Charge Temperature | 0°C to 45°C |
| Discharge Temperature | -20°C to 60°C |
| Approx. Dimensions | 21.50mm x 70.80mm |
| Approx. Weight | ~71g |
| Rechargeable | Yes |
| Button Top Terminal | Positive button top configuration ensures broad compatibility with devices designed for button top 21700 cells — note that this cell is physically longer than a standard flat top unprotected 21700 battery due to the added PCB and button top terminal. |
Check your application
Confirm dimensions, electrical ratings and connection requirements before installation. Product photos do not establish compatibility with a particular battery pack or device.
Technical documents
Where a document describes the underlying bare cell, its dimensions and electrical limits do not automatically apply to the protected assembly. Match the complete protected battery and its protection-circuit limits to your equipment.
Order or request quantity pricing
Email Sales@RocketDistributing.com with product reference EVE-58E-PRO, quantity, delivery location and timing. For compatibility help, include the equipment model and battery or charger label.
