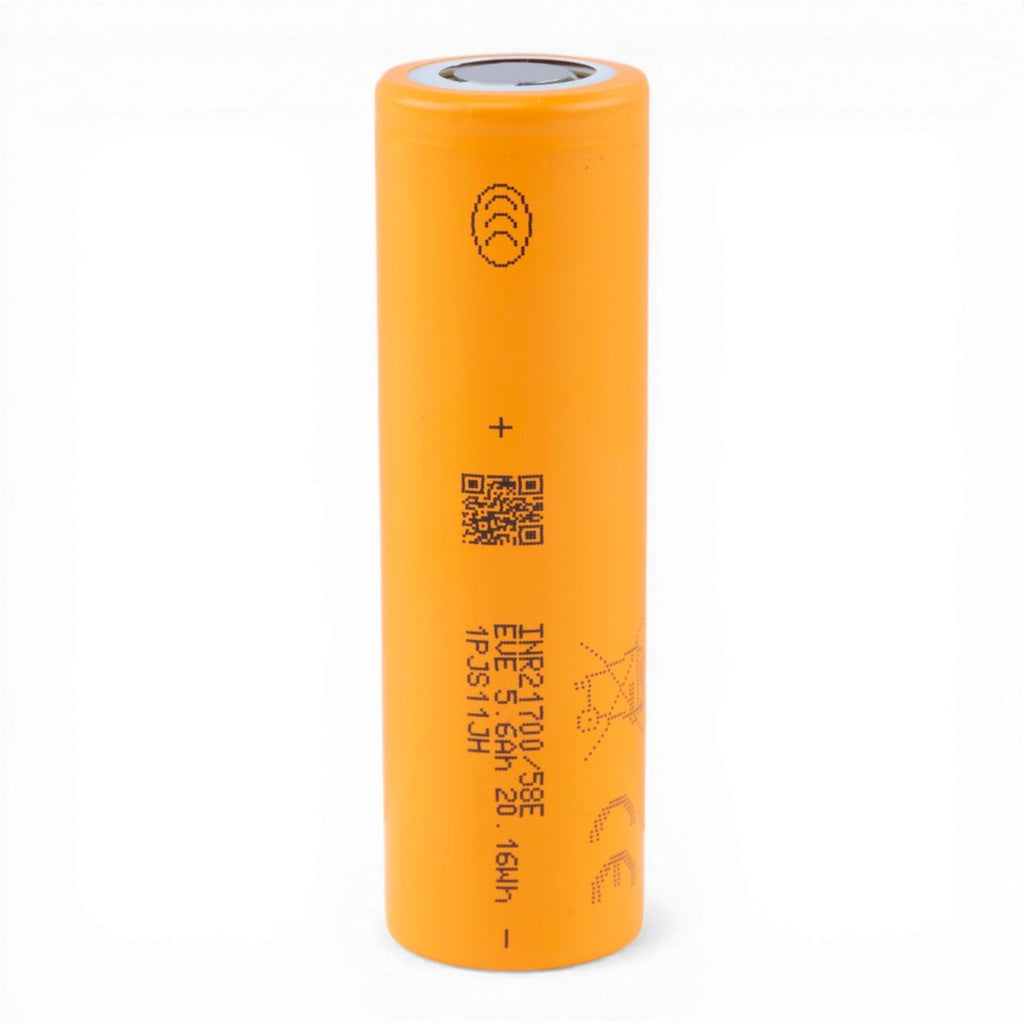

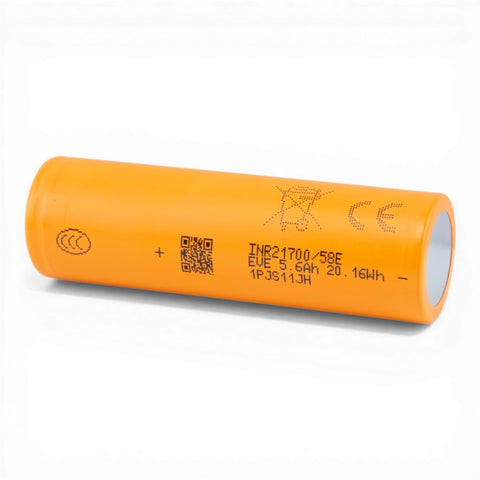

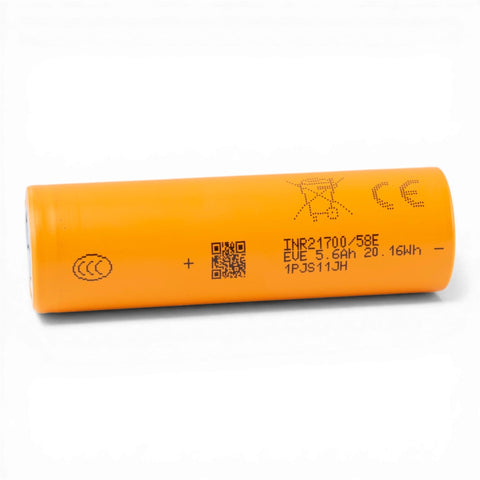

EVE 58E 21700 5700mAh 16.8A Battery is available from Rocket Distributing. Compare the cell specifications, terminal shape and protection requirements with your device or battery-pack design.
Product specifications
| Brand | EVE Energy |
|---|---|
| Product reference | EVE-58E |
| Model | INR21700-58E |
| Battery Type | Lithium-Ion Rechargeable Cell |
| Nominal Capacity | 5700mAh |
| Minimum Capacity | 5600mAh |
| Nominal Voltage | 3.6V |
| Maximum Charge Voltage | 4.20V |
| Discharge Cut-off Voltage | 2.5V |
| Maximum Discharge Current | 16.8A (not the cycle-life test condition); follow manufacturer temperature limits |
| Standard Charge Current | 1.12A |
| Maximum Charge Current | 5.6A |
| Rechargeable | Yes |
| Protected | No, Unprotected Cell |
| Approx. Dimensions | 21.50 ± 0.15mm diameter × 70.80 ± 0.15mm height |
| Approx. Weight | 71 ± 2g |
| Operating Temperature | Charge: 0–45°C / Discharge: −20–60°C |
Fit, protection and charging
This is an unprotected cell. It requires appropriate protection in the equipment or battery pack. It is intended for suitable applications designed to manage charging, discharge current and cell voltage.
A matching cell size alone does not establish compatibility. Follow the cell and equipment documentation for charging voltage, current and temperature limits. Do not use damaged cells or carry loose cells with metal objects.
Compare battery chargers, then confirm the exact chemistry, charging voltage and physical fit in the charger manual.
Technical documents
Order or request quantity pricing
Email Sales@RocketDistributing.com with product reference EVE-58E, quantity, delivery location and timing. For compatibility help, include the equipment model and battery or charger label.
