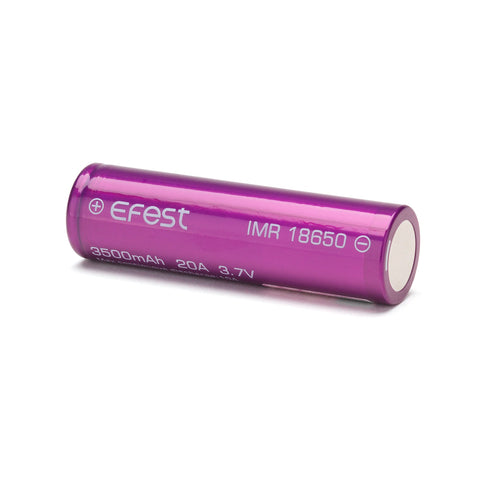

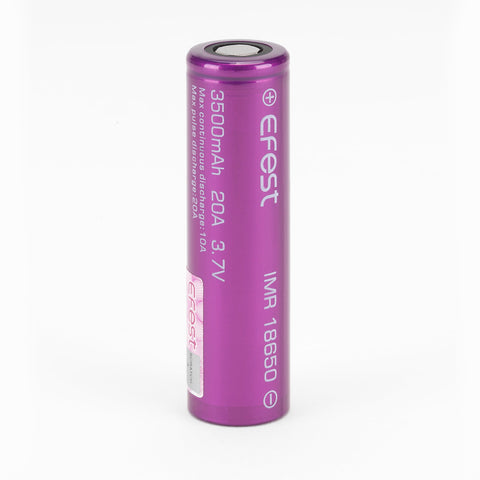

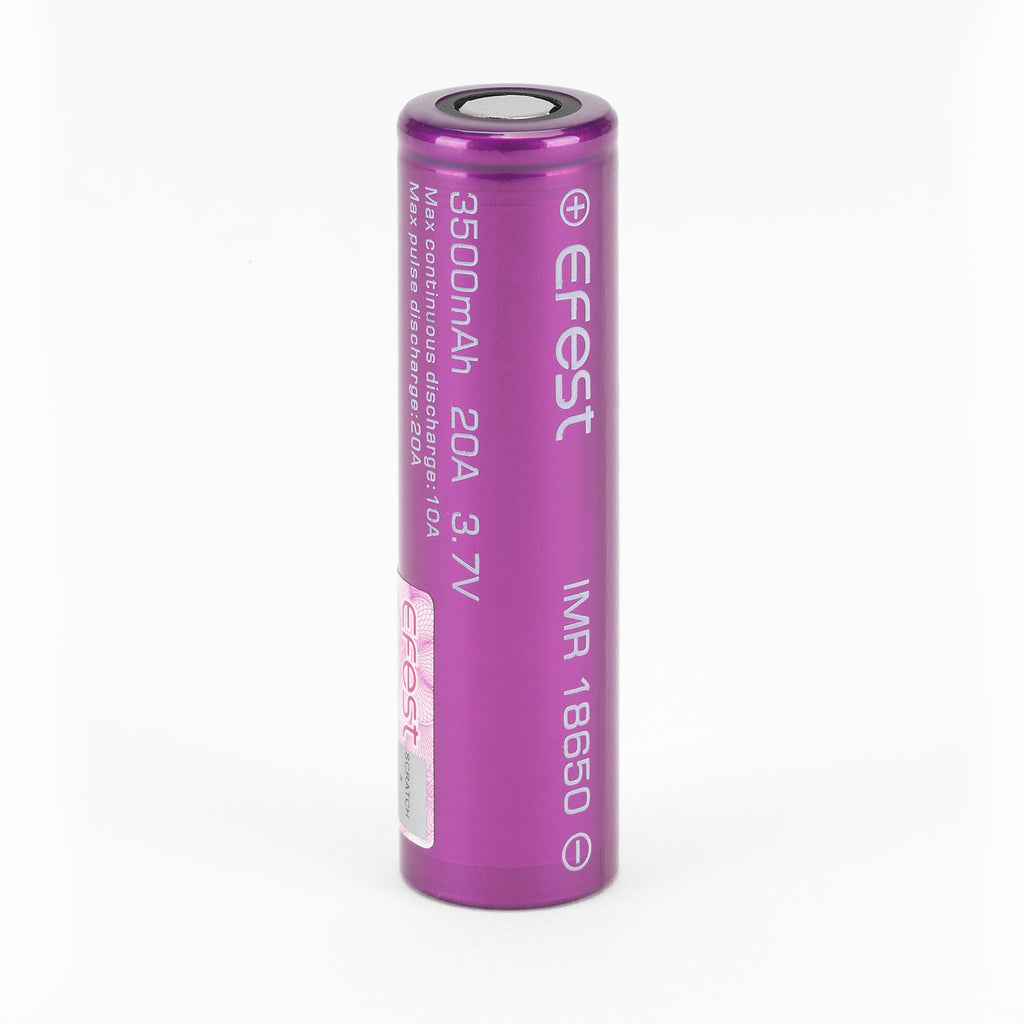

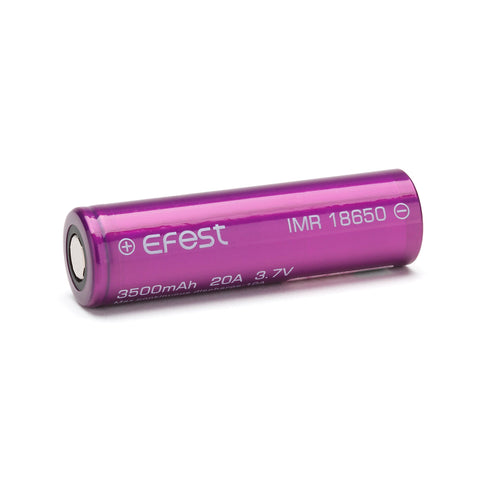

Efest 18650 3500mAh Battery is available from Rocket Distributing. Compare the cell specifications, terminal shape and protection requirements with your device or battery-pack design.
Product specifications
| Brand | Efest |
|---|---|
| Product reference | EFEST-18650-35 |
| Model | IMR18650V1 |
| Size | 18650 |
| Positive Terminal | Flat Top |
| Nominal Capacity | 3500mAh |
| Continuous Discharge Rating | 10A |
| Nominal Voltage | 3.7V |
| Maximum Voltage | 4.2V |
| Cut-Off Voltage | 2.5V |
| Protected | No (Unprotected) |
| Rechargeable | Yes |
| Approx. Dimensions | 18.25mm × 65.25mm |
| Approx. Weight | 46.4g |
Fit, protection and charging
This is an unprotected cell. It requires appropriate protection in the equipment or battery pack. It is intended for suitable applications designed to manage charging, discharge current and cell voltage.
A matching cell size alone does not establish compatibility. Follow the cell and equipment documentation for charging voltage, current and temperature limits. Do not use damaged cells or carry loose cells with metal objects.
Compare battery chargers, then confirm the exact chemistry, charging voltage and physical fit in the charger manual.
Order or request quantity pricing
Email Sales@RocketDistributing.com with product reference EFEST-18650-35, quantity, delivery location and timing. For compatibility help, include the equipment model and battery or charger label.
