Shop the Protection Circuit Module [PCB] For 9.6V(3S) LiFePO4 Battery Pack. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.

Product details and specifications

product highlights

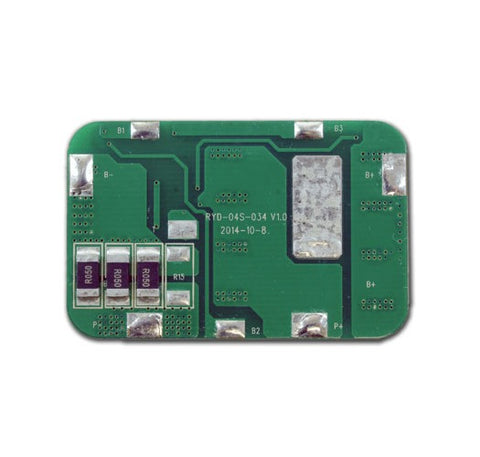

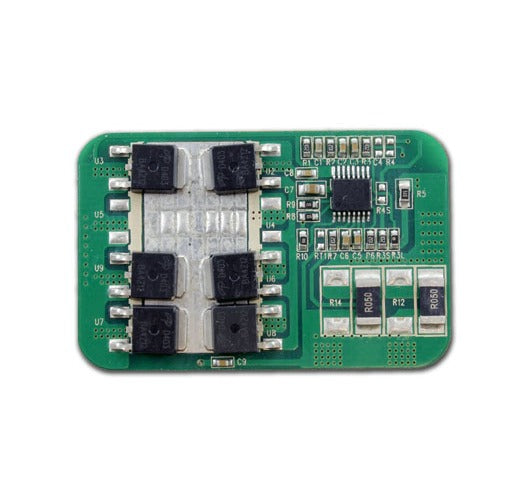

Connections:

  • B3：Connected to the second battery's positive terminal
  • B2：Connected to the first battery's positive terminal
  • B1：No connected
  • B+：Connected to the third battery's positive terminal
  • B-：Connected to the first battery's negative terminal
  • P+：Connected to the battery's output or the charger's positive terminal
  • P-：Connected to the battery's output or the charger's negative terminal

Product Specifications:

Item Content Criterion
Over Charge Protection
  • Over charge detection voltage
  • Over charge detection delay time
  • Over charge release voltage
  • 3.90V±0.025V
  • 1.0±0.5s
  • 3.80V±0.05V
Over Discharge Protection
  • Over discharge detection voltage
  • Over discharge detection delay time
  • Over discharge release voltage
  • Rated Operational Current
  • 2.3±0.08V
  • 100±50ms
  • 2.7V±0.1V
  • ≤15A
Over Current Protection
  • Over Current Detection Current
  • Detection Delay Time
  • 30±5A
  • 10±5ms
Short Circuit Protection
  • Short Protection
  • Release condition
  • Exterior shot circuit
  • Cut short circuit
Resistance Main loop electrify resistance ≤55mΩ
Current Consumption Current consume in normal operation 50.0μA Max
Size 50 x 32 x 4mm
