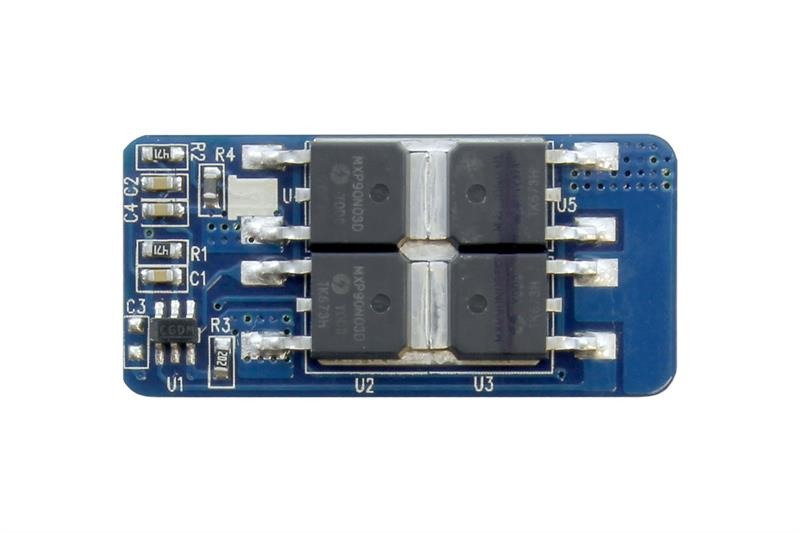

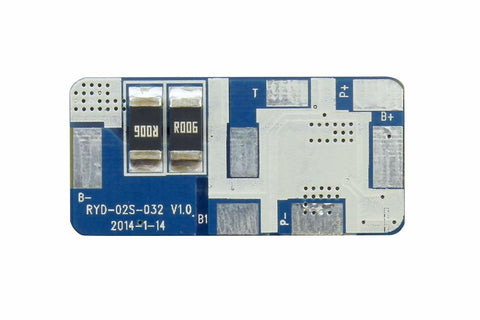

Protection Circuit Module [PCB] for 7.2V/7.4V (2S) Li-ion Battery Pack (Working 10A, Cutoff 22A, NTC) (32175)

  • Sale
  • $22.99

Shop the Protection Circuit Module [PCB] for 7.2V/7.4V (2S) Li-ion Battery Pack (Working 10A, Cutoff 22A, NTC). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.

Product details and specifications

product highlights

  • Protection Circuit Board for 7.2V/7.4V (2 Series) Li-ion battery pack
  • Automatic 22A cutoff Working 10A
  • Prevents 7.2V/7.4V Li-ion from over-charging or over-discharging
  • Designed for 7.2V/7.4V Li-ion battery pack building
  • Dimensions : 34 x 16 x 4.5 mm
  • Protection Circuit Board for 7.2V/7.4V (2 Series) Li-ion battery pack
  • Automatic 22A cutoff Working 10A
  • Prevents 7.2V/7.4V Li-ion from over-charging or over-discharging
  • Designed for 7.2V/7.4V Li-ion battery pack building
  • Dimensions : 34 x 16 x 4.5 mm

Product Specifications:

Item Content Criterion
Over Charge Protection
  • Over charge detection voltage
  • Over charge detection delay time
  • Over charge release voltage
  • 4.280±0.025V
  • 1.0±0.2s
  • 4.130±0.05V
Over Discharge Protection
  • Over discharge detection voltage
  • Over discharge detection delay time
  • Over discharge releas voltage
  • Rated operational current
  • 2.40±0.050V
  • 128S±26mS
  • 2.90±0.10V
  • ≤10A
Over Current Protection
  • Over current detection current
  • Release condition
  • Detection delay time
  • 22±5A
  • Cut load
  • 8±4mS
Short Protection
  • Detection condition
  • Protection
  • Release condition
  • Exterior short circuit
  • Have
  • Cut short circuit
Balance
  • Balanced open voltage
  • Balanced release voltage
  • Balanced current
  • /
  • /
  • /
Temperature Protection
  • Operation temperature
  • Recovery temperature
  • /
  • /
Interior Resistance Main loop electrify resistance RSS≤25mΩ
Current Consumption Current consume in normal operation 10μA Max
NTC 10kOhm 3380 1% NTC 25℃ 10K±1%

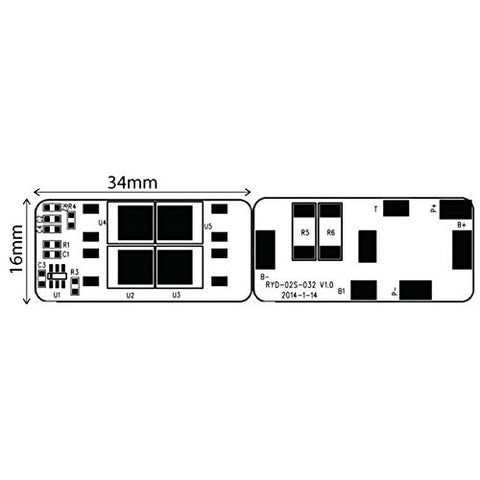

Dimension (L*W*H) 34 x 16 x 4.5 mm
