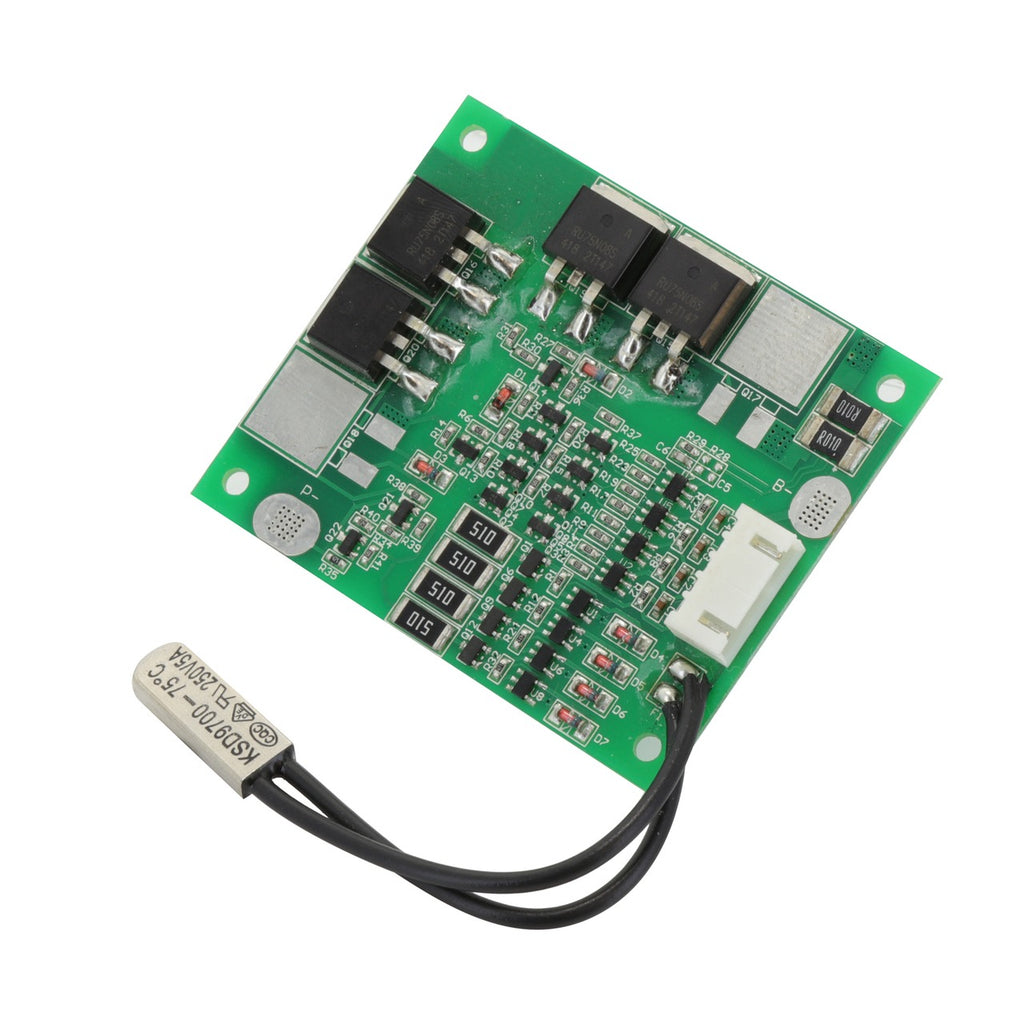

Protection Circuit Module (PCB) for 4S 14.8V Li-ion Battery (32128)

Protection Circuit Module (PCB) for 4S 14.8V Li-ion Battery Packs 10A Working Current (32128)

  • Sale
  • $28.99

Shop the Protection Circuit Module (PCB) for 4S 14.8V Li-ion Battery Packs 10A Working Current. Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.

Product details and specifications

Product Highlights

  • Charging Voltage: 14.8V
  • Maximal continuous charging current: 10A
  • Maximal continuous discharging current: 10A
  • Current consumption: ≤200μA

Product Specifications:

Item Content Criterion
Over Charge Protection
  • Over charge detection voltage
  • Over charge detection delay time
  • Over charge release voltage
  • 4.31V
  • 1.2S
  • 4.17V
Over Discharge Protection
  • Over discharge detection voltage
  • Over discharge detection delay time
  • Over discharge release voltage
  • 2.3V
  • 158mS
  • 2.4V
Over Current Protection
  • Over current detection voltage
  • Over current detection current
  • Release Condition
  • Detection delay time
  • 0.1V
  • 20A
  • Cut load, automatically recover
  • 10mS
Short Protection
  • Detection Condition
  • Release condition
  • Detection delay time
  • Exterior Short Circuit
  • Cut load, automatically recover
  • 9.8mS
Resistance
  • Inner Resistance
  • ≤20mΩ
Balance
  •  Balance voltage for single cell
  •  Balance current for single cell
  • 4.55V
  • 90mA
Temperature
  • Operation temperature
  • Storage temperature range
  • -40~+75°C
  • -40~+75°C
Remarks

Charge, Discharge from Same Port

P+=B+=Charge+/Discharge+
P-=Charge-/Discharge-
Dimension (L *W * T) 64mm x 54mm x 8.2mm
