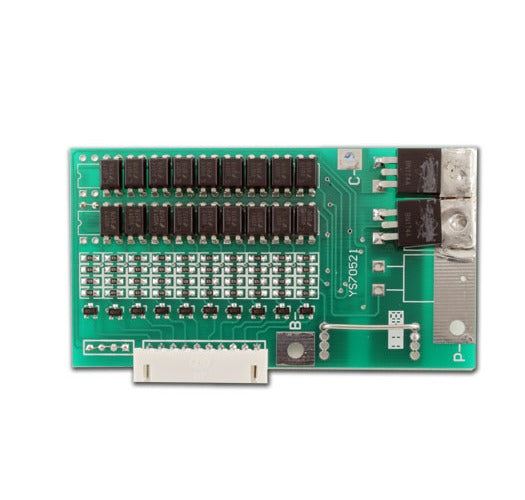

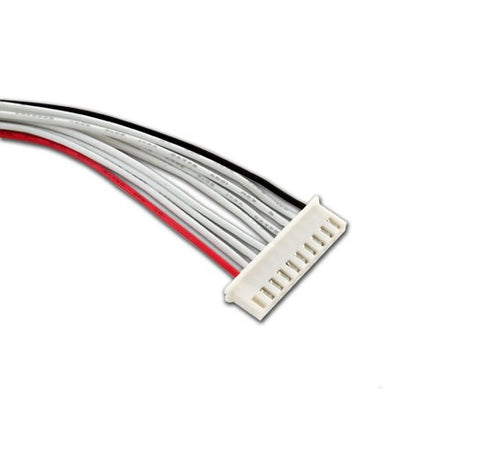

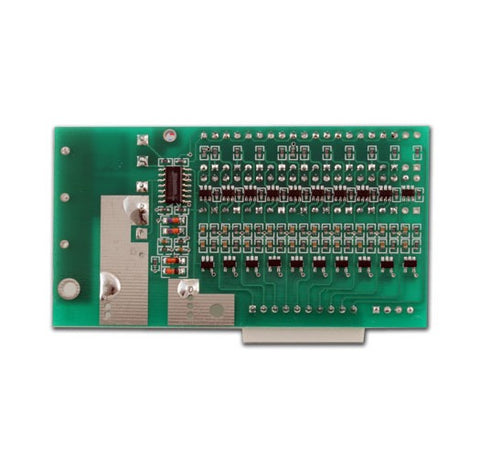

Protection Circuit Module [PCB] for 33.3V (9S) Li-ion Battery Pack (Working 5A, Cutoff 10A) (32130)

Shop the Protection Circuit Module [PCB] for 33.3V (9S) Li-ion Battery Pack (Working 5A, Cutoff 10A). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.

Product details and specifications

product highlights

• Apply for 9 cells Li-ion / Li-polymer batery pack protection.
• Internally trimmed charge and discharge voltage limits.
• Discharge current limit detection.
• Low current standby mode when cells are discharged.
• High quality and high yield: 100% tested before shipment.
• Compatible with both Li-ion and Li-Polymer cells.

• Apply for 9 cells Li-ion / Li-polymer batery pack protection.
• Internally trimmed charge and discharge voltage limits.
• Discharge current limit detection.
• Low current standby mode when cells are discharged.
• High quality and high yield: 100% tested before shipment.
• Compatible with both Li-ion and Li-Polymer cells.

Specifications:

• Item: 9 series balancing guard shield
• Over charge protection V: 4.25±0.025
• Over discharge voltage V: 2.90±0.05
• Over discharge recovery V: Cut load or charge
• Charging current A: <4
• Normal working current A: 5
• Over current protection A: 10
• Internal resistance m/ohm: <20
• Charging balancing current mA: 80
• Charging balancing voltage V: 4.2
• Over charge postpone time mS: 1±0.5
• Over discharge postpone time mS: 100±50
• Short circuit protection: yes
• Temperature protection ˚C: 70 (connection reserved)
• Temperature characteristic: ±1.0mv/˚C
• Working temperature ˚C: -10~+60
• Storage temperature ˚C: -30~+85
• Power loss uA: <180、normal Vn=3.6v; <20、Under-voltage Vn≤2.8v loaded
• Size: 86 x 48 x 10 mm
