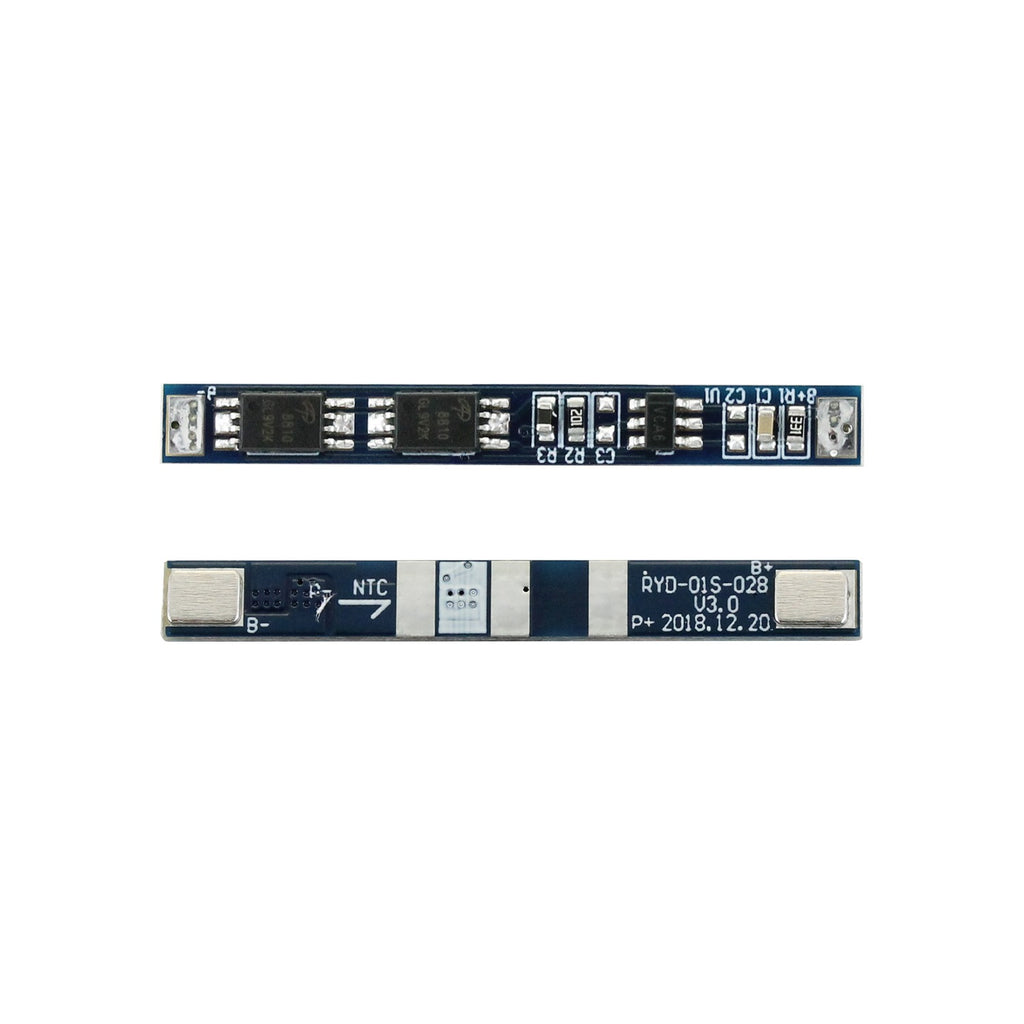

Protection Circuit Module [PCB] for 3.7V (1S) Li-ion Battery (32190)

Protection Circuit Module [PCB] for 3.7V (1S) Li-ion Battery Pack (Working 6A, Cut-off 9A, w/ NTC) (32190)

Sale
Regular price $8.49

Shop the Protection Circuit Module [PCB] for 3.7V (1S) Li-ion Battery Pack (Working 6A, Cut-off 9A, w/ NTC). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.

Product details and specifications

product highlights

Protection Circuit Board for 3.7V Li-ion and Li-polymer battery pack
Compatible with any Li-ion and Li-Polymer Packs with 1S configurations
Working current 6A, Cut-off 11±2A
Prevents battery pack from over-charging, over-discharging, and over-current

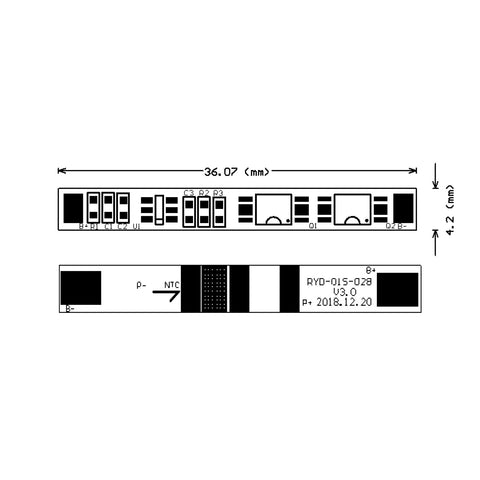

Dimension (L x W x H) 36.7 x 4.2 x 2.15mm

Product Specifications:

Item	Content	Criterion
Over Charge Protection	Over charge detection voltage Over charge detection delay time Over charge release voltage	4.25±0.05V 1.0±0.3s 4.05±0.05V
Over Discharge Protection	Over discharge detection voltage Over discharge detection delay time Over discharge release voltage Rated operational current	2.50±0.10V 20±6ms 3.00±0.075V 6.0A
Over Current Protection	Over current detection current Over current detection voltage Release condition Detection delay time	11±2A 0.2±0.015V Cut load 12±4ms
Short Protection	Detection condition Detection delay time Release condition	Exterior short circuit 230~500µs Cut short circuit
Balance	Balanced open voltage Balanced release voltage Balanced current	/ / /
Temperature Protection	Operation temperature Recovery temperature	/ /
Interior Resistance	Main loop electrify resistance	RSS≤30mΩ
Current Consumption	Current consume in normal operation	8μA Max
NTC	R-0603-10kΩ-B3435±1%NTC -40°C to 150°C	10K
Dimension (LWH)	F:364.21 mm
