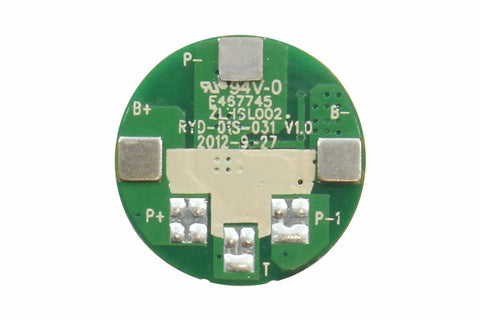

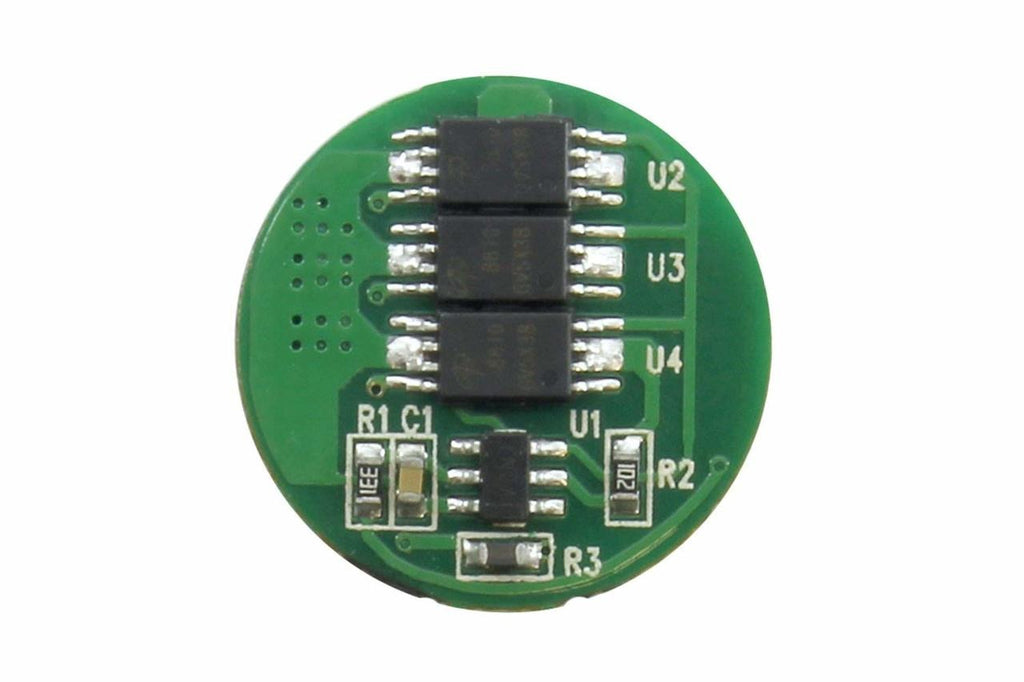

Protection Circuit Module [PCB] for 3.6V/3.7V (1S) Li-ion Battery Pack (Working 9A, Cutoff 13A, Round shape) (32173)

  • Sale
  • $11.99

Shop the Protection Circuit Module [PCB] for 3.6V/3.7V (1S) Li-ion Battery Pack (Working 9A, Cutoff 13A, Round shape). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.

Special Order - Non-Cancellable - Non-Returnable - Additional Lead Time May Be Required On This Item

Product details and specifications

product highlights

  • Protection Circuit Board for 3.6V/3.7V (1S) Li-ion battery pack
  • Automatic 13A cutoff Working 9A
  • Prevents 3.6V/3.7V (1S) Li-ion from over-charging or over-discharging
  • Designed for 3.6V/3.7V (1S) Li-ion battery pack building
  • Dimensions : 17.5 x 17.5 x 2.5 mm
  • Protection Circuit Board for 3.6V/3.7V (1S) Li-ion battery pack
  • Automatic 13A cutoff Working 9A
  • Prevents 3.6V/3.7V (1S) Li-ion from over-charging or over-discharging
  • Designed for 3.6V/3.7V (1S) Li-ion battery pack building
  • Dimensions : 17.5 x 17.5 x 2.5 mm

Product Specifications:

Item Content Criterion
Over Charge Protection
  • Over charge detection voltage
  • Over charge detection delay time
  • Over charge release voltage
  • 4.280±0.025V
  • 1.0±0.3s
  • 4.080±0.03V
Over Discharge Protection
  • Over discharge detection voltage
  • Over discharge detection delay time
  • Over discharge releas voltage
  • Rated operational current
  • 2.90±0.0730V
  • 20S±6mS
  • 3.10±0.078V
  • ≤9A
Over Current Protection
  • Over current detection current
  • Release condition
  • Cut load
  • Detection delay time
  • 13±3A
  • Cut load
  • 12±4mS
Short Protection
  • Detection condition
  • Protection
  • Release condition
  • Exterior short circuit
  • Have
  • Cut short circuit
Balance
  • Balanced open voltage
  • Balanced release voltage
  • Balanced current
  • /
  • /
  • /
Temperature Protection
  • Operation temperature
  • Recovery temperature
  • /
  • /
Interior Resistance Main loop electrify resistance RSS≤50mΩ
Current Consumption Current consume in normal operation 8μA Max
NTC 10kOhm 3380 1% NTC 25℃ 10K±1%

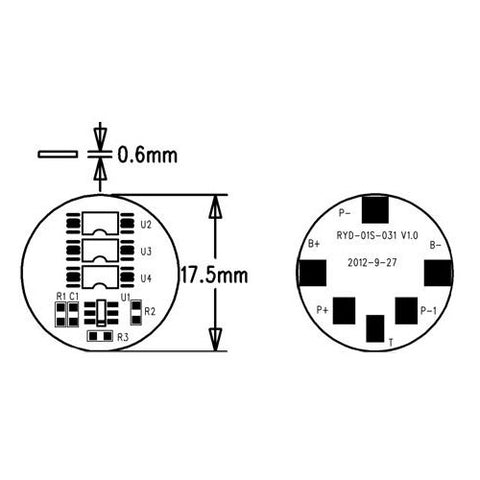

Dimension (L*W*H) 17.5 x 17.5 x 2.5 mm
