Protection Circuit Module [PCB] for 3.6V/3.7V (1S) Li-ion (32003)

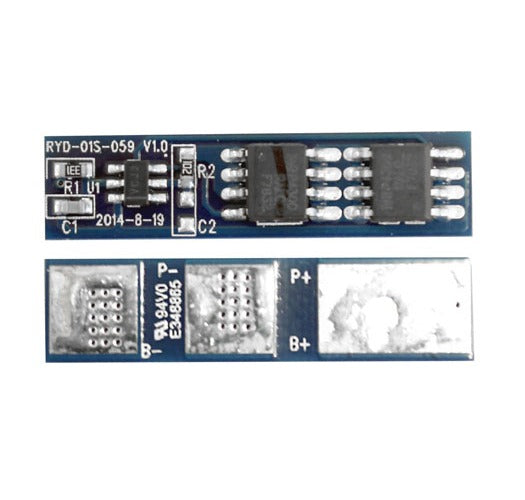

Protection Circuit Module [PCB] for 3.6V/3.7V (1S) Li-ion Battery Pack (Working 5A, Cutoff 15A) (32003)

  • Sale
  • $13.19

Shop the Protection Circuit Module [PCB] for 3.6V/3.7V (1S) Li-ion Battery Pack (Working 5A, Cutoff 15A). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.

Special Order - Non-Cancellable - Non-Returnable - Additional Lead Time May Be Required On This Item

Product details and specifications

product highlights

  • Protection Circuit Board for 3.7V Li-ion and Li-polymer battery pack.
  • Prevents 3.7V Li-ion or Li-polymer battery from over-charging, over-discharging,and from discharging current more than 15A.
  • Designed for 3.7V Li-ion or Li-Polymer battery.
  • Dimension (L x W x H) 28 x 7 x 2.45 mm.
  • Compatible with both Li-ion and Li-Polymer cells.
  • Protection Circuit Board for 3.7V Li-ion and Li-polymer battery pack.
  • Prevents 3.7V Li-ion or Li-polymer battery from over-charging, over-discharging,and from discharging current more than 15A.
  • Designed for 3.7V Li-ion or Li-Polymer battery.
  • Dimension (L x W x H) 28 x 7 x 2.45 mm.
  • Compatible with both Li-ion and Li-Polymer cells.

Product Specifications:

Item Content Criterion
Over Charge Protection
  • Over charge detection voltage
  • Over charge detection delay time
  • Over charge release voltage
  • 4.25±0.025V
  • /
  • 4.05±0.05V
Over Discharge Protection
  • Over discharge detection voltage
  • Over discharge detection delay time
  • Over discharge releas voltage
  • Rated operational current
  • 2.5±0.063V
  • /
  • 3.0±0.075V
  • ≤5A
Over Current Protection
  • Over current detection current
  • Release condition
  • Detection delay time
  • 15±3A
  • Cut load
  • 8~16ms
Short Protection
  • Detection condition
  • Protection
  • Release condition
  • Exterior short circuit
  • /
  • Cut short circuit
Balance
  • Balanced open voltage
  • Balanced release voltage
  • Balanced current
  • /
  • /
  • /
Temperature Protection
  • Operation temperature
  • Recovery temperature
  • /
  • /
Interior Resistance Main loop electrify resistance RSS≤30mΩ
Current Consumption Current consume in normal operation 8μA Max
NTC 10kOhm 3380 1% NTC /
Dimension (L*W*H) 28 x 7 x 2.45 mm
