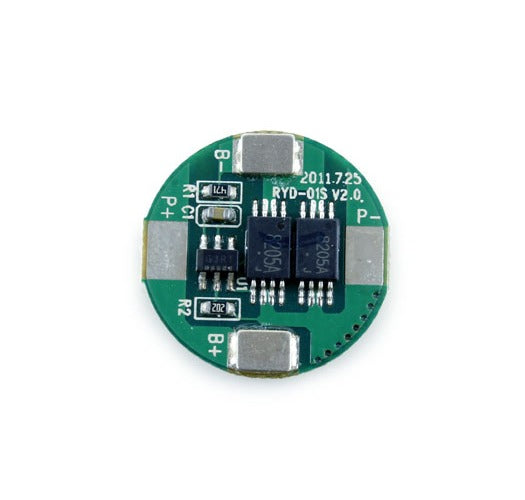

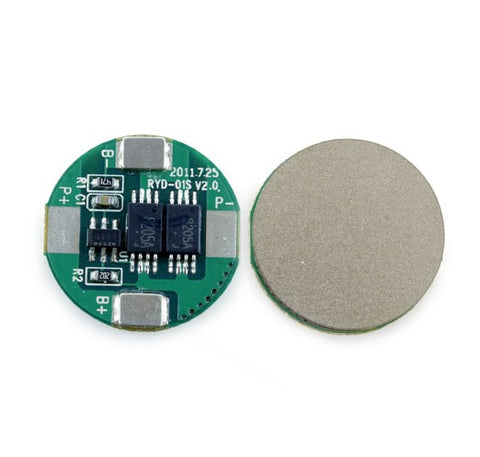

Protection Circuit Module [PCB] for 3.6V/3.7V (1S) Li-ion (32002)

Protection Circuit Module [PCB] for 3.6V/3.7V (1S) Li-ion Battery Pack (Working 3.5A, Cutoff 6.5A) (32002)

Sale
Regular price $7.49

Shop the Protection Circuit Module [PCB] for 3.6V/3.7V (1S) Li-ion Battery Pack (Working 3.5A, Cutoff 6.5A). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.

Product details and specifications

product highlights

Protection Circuit (PCB) for 3.7V Li-ion Battery.
Over charge detection voltage: 4.275±0.025V.
Over charge release voltage: 4.075±0.025V.
Over current detection current: 6.5±2A.
Detection delay time: 7.2～11.0ms

Protection Circuit (PCB) for 3.7V Li-ion Battery.
Over charge detection voltage: 4.275±0.025V.
Over charge release voltage: 4.075±0.025V.
Over current detection current: 6.5±2A.
Detection delay time: 7.2～11.0ms

Product Specifications:

Item	Content	Criterion
Over Charge Protection	Over charge detection voltage Over charge detection delay time Over charge release voltage	4.275±0.025V / 4.075±0.025V
Over Discharge Protection	Over discharge detection voltage Over discharge detection delay time Over discharge releas voltage Rated operational current	2.5±0.05V / 2.9±0.05V ≤3.5A
Over Current Protection	Over current detection current Release condition Detection delay time	6.5±2A Cut load 7.2～11.0ms
Short Protection	Detection condition Protection Release condition	Exterior short circuit / Cut short circuit
Balance	Balanced open voltage Balanced release voltage Balanced current	/ / /
Temperature Protection	Operation temperature Recovery temperature	/ /
Interior Resistance	Main loop electrify resistance	Rss≤65mΩ
Current Consumption	Current consume in normal operation	8μA Max
NTC	10kOhm 3380 1% NTC	/
Dimension (LWH)	R17.3 x 2.5mm
