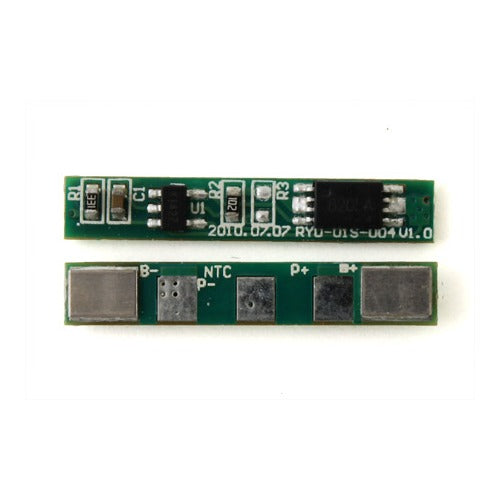

Protection Circuit Module [PCB] for 3.6V/3.7V (1S) Li-ion (32135)

Protection Circuit Module [PCB] for 3.6V/3.7V (1S) Li-ion Battery Pack (Working 1.5A, Cutoff 1.96A) (32135)

  • Sale
  • $5.99

Shop the Protection Circuit Module [PCB] for 3.6V/3.7V (1S) Li-ion Battery Pack (Working 1.5A, Cutoff 1.96A). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.

Product details and specifications

product highlights

  • 3.6V/3.7V Charge voltage
  • Overcharge protection and over discharge protection
  • Short Cut Protection
  • Dimension size: 24mm x 4mm x 1.9mm
  • 3.6V/3.7V Charge voltage
  • Overcharge protection and over discharge protection
  • Short Cut Protection
  • Dimension size: 24mm x 4mm x 1.9mm

Product Specifications:

Item Content Criterion
Over Charge Protection
  • Over charge detection voltage
  • Over charge detection delay time
  • Over charge release voltage
  • 4.28±0.005V
  • 0.275±0.1S
  • /
Over Discharge Protection
  • Over discharge detection voltage
  • Over discharge detection delay time
  • Over discharge releas voltage
  • Rated operational current
  • 2.9±0.1V
  • 20±6.0mS
  • /
  • 1.5A
Over Current Protection
  • Over current detection current
  • Release condition
  • Detection delay time
  • 1.6～2.5A（1.96A）
  • Cut load
  • 12±4mS
Short Protection
  • Detection condition
  • Protection
  • Release condition
  • Exterior short circuit
  • /
  • Cut short circuit
Balance
  • Balanced open voltage
  • Balanced release voltage
  • Balanced current
  • /
  • /
  • /
Temperature Protection
  • Operation temperature
  • Recovery temperature
  • /
  • /
Interior Resistance Main loop electrify resistance Rss≤55mΩ
Current Consumption Current consume in normal operation 8μA Max
NTC 10kOhm 3380 1% NTC Built-in
Dimension (L*W*H) 24mm x 4mm x 1.9mm
