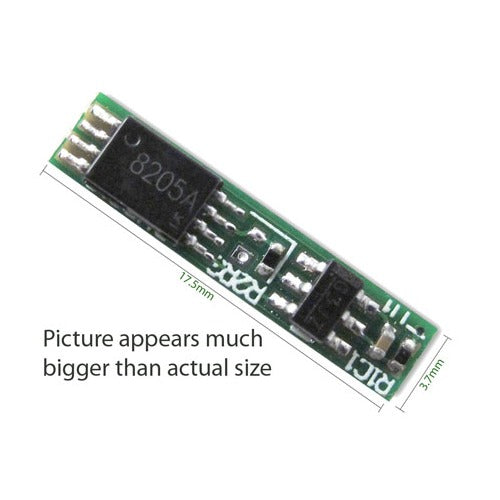

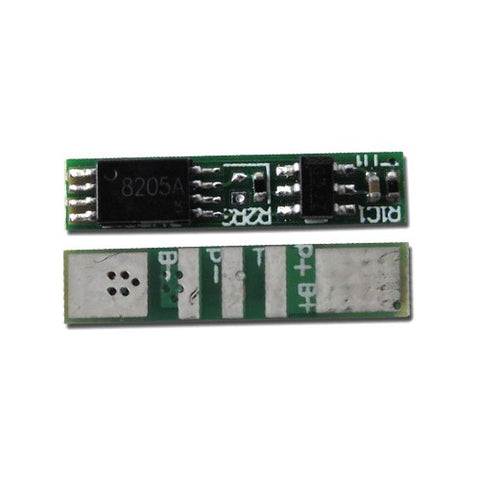

Protection Circuit Module [PCB] for 3.6V/3.7V (1S) Li-ion Battery Pack (Cutoff 1.5A) (32088)

  • Sale
  • $7.19

Shop the Protection Circuit Module [PCB] for 3.6V/3.7V (1S) Li-ion Battery Pack (Cutoff 1.5A). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.

Special Order - Non-Cancellable - Non-Returnable - Additional Lead Time May Be Required On This Item

Product details and specifications

product highlights

Product Specifications:

Item Content Criterion
Over Charge Protection
  • Over charge detection voltage
  • Over charge detection delay time
  • Over charge release voltage
  • 4.28±0.025V
  • /
  • 4.08±0.025V
Over Discharge Protection
  • Over discharge detection voltage
  • Over discharge detection delay time
  • Over discharge releas voltage
  • Rated operational current
  • 3.0±0.05V
  • /
  • 3.0±0.05V
  • ≤1.5A
Over Current Protection
  • Over current detection current
  • Release condition
  • Detection delay time
  • 1.5~2.5A
  • Cut load
  • 7.2～11.0ms
Short Protection
  • Detection condition
  • Protection
  • Release condition
  • Exterior short circuit
  • /
  • Cut short circuit
Balance
  • Balanced open voltage
  • Balanced release voltage
  • Balanced current
  • /
  • /
  • /
Temperature Protection
  • Operation temperature
  • Recovery temperature
  • /
  • /
Interior Resistance Main loop electrify resistance Rss≤65mΩ
Current Consumption Current consume in normal operation 8μA Max
NTC 10kOhm 3380 1% NTC Built-in
Dimension (L*W*H) 16mm x 3.5mm x 2.0mm
