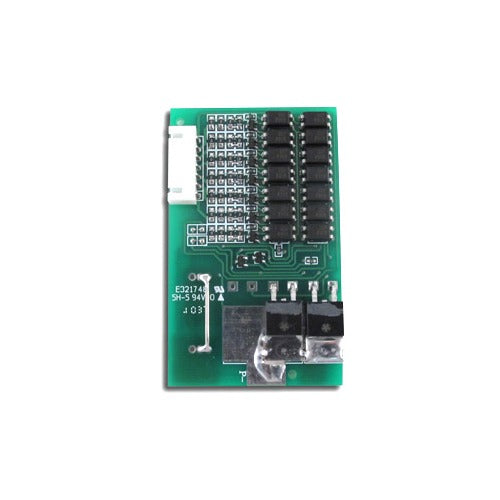

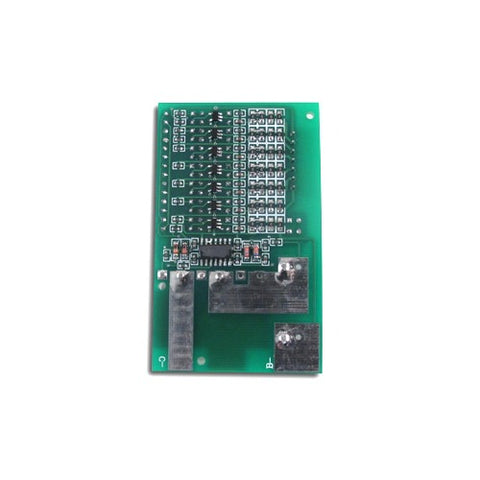

Protection Circuit Module [PCB] for 25.9V (7S) Li-ion Battery Pack (Working 6A, Cutoff 10A, #32117) (32117)

Shop the Protection Circuit Module [PCB] for 25.9V (7S) Li-ion Battery Pack (Working 6A, Cutoff 10A, #32117). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.

Product details and specifications

product highlights

• Applies to 7 cells Li-ion/Li-polymer battery pack protection
• Internally Trimmed Charge and Discharge Voltage Limits
• Discharge Current Limit Detection
• High Quality and High Yield: 100% Tested before Shipment

• Applies to 7 cells Li-ion/Li-polymer battery pack protection
• Internally Trimmed Charge and Discharge Voltage Limits
• Discharge Current Limit Detection
• High Quality and High Yield: 100% Tested before Shipment

Product Specifications:

• Item: 7 series balancing guard shield
• Over charge protection V: 4.25±0.25
• Over discharge voltage V: 2.5±0.05
• Over discharge recovery V: Cut load or charge
• Charging current A: 5
• Normal working current A: 6
• Over current protection A: 10
• Internal resistance m/ohm: <20
• Charging balancing current mA: 60
• Charging balancing voltage V: 4.20±0.02
• Over charge postpone time S: 1.0
• Over discharge postpone time mS: 125
• Short circuit protection: yes
