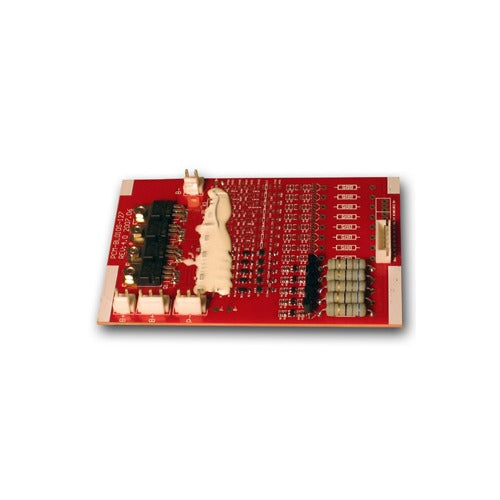

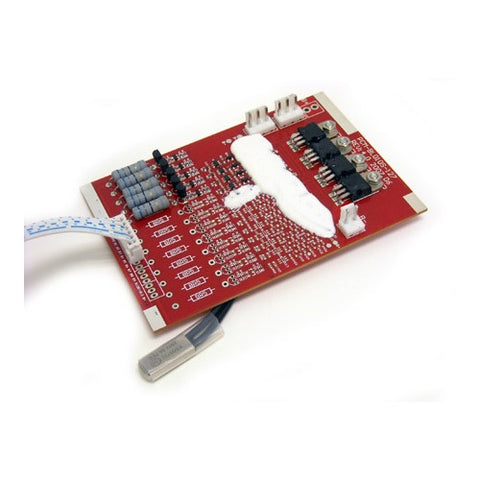

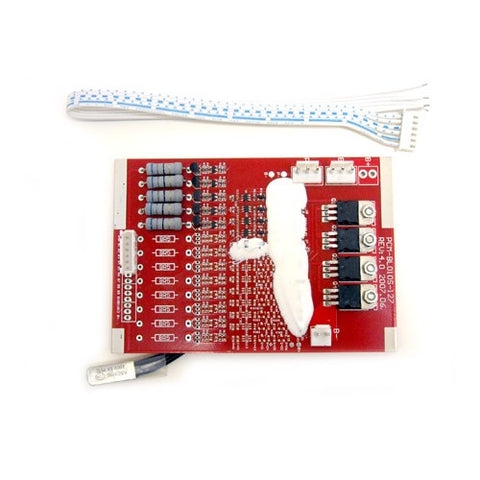

Protection Circuit Module [PCB] for 18.5V (5S) Li-ion Battery Pack (Cutoff 15A) (32014)

  • Sale
  • $45.99

Shop the Protection Circuit Module [PCB] for 18.5V (5S) Li-ion Battery Pack (Cutoff 15A). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.

Product details and specifications

product highlights

  • Applies to 5 cells Li-ion/Li-polymer battery pack protection
  • Internally Trimmed Charge and Discharge Voltage Limits
  • Discharge Current Limit Detection
  • High Quality and High Yield: 100% Tested before Shipment
  • Working Voltage: 8.5V
  • Maximal Working Current: 15A
  • Dimension: 115mm x 81mm x 15mm
  • Weight: 61g
  • Applies to 5 cells Li-ion/Li-polymer battery pack protection
  • Internally Trimmed Charge and Discharge Voltage Limits
  • Discharge Current Limit Detection
  • High Quality and High Yield: 100% Tested before Shipment
  • Working Voltage: 8.5V
  • Maximal Working Current: 15A
  • Dimension: 115mm x 81mm x 15mm
  • Weight: 61g

Product Specifications:

No. Items Min Type Max Unit
1 Charging voltage 21.1 21.25 V
2 Charging current 15 A
3 Discharging current 12 15 A
4 Current consumption 300 uA
5 Balance current for single cell 55 60 65 mA
6 Blance voltage for single cell 4.18 4.2 4.22 V
7 Overcharge detection voltage for single cell 4.3 4.325 4.3 V
8 Overcharge detection delay time 0.96 1.2 1.4 s
9 Overdischarge detection voltage for single cell 2.4 2.5 2.6 V
10 Overdischarge detection delay time 115 144 173 ms
11 Short circuit protection Exterior short circuit
12 Protection circuitry resistance 15 20 mΩ
13 Operating Temperature Range -40 85 C
14 Storage Temperature Range -40 125 C
