Shop the Protection Circuit Module [PCB] for 14.4V/14.8V (4S) Li-ion Battery Packs (Working 10A, Cutoff 40A). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
product highlights
- PCM designed for 14.4V/14.8V (4S) Li-ion battery pack.
- Prevents cell from over-charging and over-discharging.
- Continuous working current at 10A.
- Cut-off current at 40A.
- PCM designed for 14.4V/14.8V (4S) Li-ion battery pack.
- Prevents cell from over-charging and over-discharging.
- Continuous working current at 10A.
- Cut-off current at 40A.
Product Specifications:
| Item | Content | Criterion |
|---|---|---|
| Over Charge Protection |
|
|
| Over Discharge Protection |
|
|
| Over Current Protection |
|
|
| Short Protection |
|
|
| Balance |
|
|
| Temperature Protection |
|
|
| Interior Resistance | Main loop electrify resistance | RSS≤50mΩ |
| Current Consumption | Current consume in normal operation | 50μA Max |
| NTC | N/A | / |

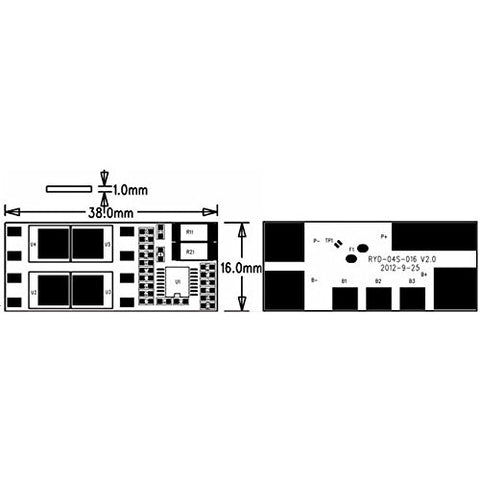

| Dimension(L*W*H) | 38 x 16 x 4 mm |
