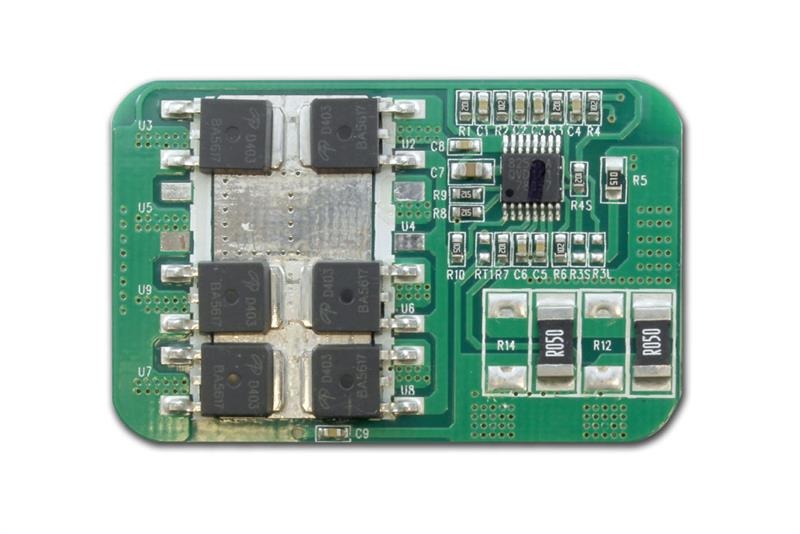

Protection Circuit Module [PCB] For 12.8V (4S) LiFePO4 Battery Pack (30A limit) (32029)

  • Sale
  • $35.99

Shop the Protection Circuit Module [PCB] For 12.8V (4S) LiFePO4 Battery Pack (30A limit). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.

Product details and specifications

product highlights

  • Function of over charge protection: once voltage of any battery in the group gets higher than the over charge protection point, charge cuts off to ensure all batteries work within the over charge protection point.
  • Function of over discharge: once voltage of any battery in the group gets lower than the over charge protection point, discharge cuts off to ensure all batteries work beyond the over charge protection point.
  • Function of over current: during the discharge process of battery group, once discharge current gets over the set over current protection point, output cuts off to ensure battery group works within the safe limit of current.
  • Function of short circuit protection: once battery group's output port appears the condition of short circuit, it cuts off to ensure battery group not to be damaged because of short circuit.
  • Function of voltage balancing: in the late charging period of battery group, voltage difference that appears during the using process of each battery could get balancing revised to ensure battery group's capacitance.
  • Specified Types: 4S LFP PCM
  • Function of over charge protection: once voltage of any battery in the group gets higher than the over charge protection point, charge cuts off to ensure all batteries work within the over charge protection point.
  • Function of over discharge: once voltage of any battery in the group gets lower than the over charge protection point, discharge cuts off to ensure all batteries work beyond the over charge protection point.
  • Function of over current: during the discharge process of battery group, once discharge current gets over the set over current protection point, output cuts off to ensure battery group works within the safe limit of current.
  • Function of short circuit protection: once battery group's output port appears the condition of short circuit, it cuts off to ensure battery group not to be damaged because of short circuit.
  • Function of voltage balancing: in the late charging period of battery group, voltage difference that appears during the using process of each battery could get balancing revised to ensure battery group's capacitance.
  • Specified Types: 4S LFP PCM

Product Specifications:

Item Content Criterion
Over Charge Protection
  • Over charge detection voltage
  • Over charge release voltage
  • Over charge detection delay time
  • 3.90±0.025V
  • 3.80±0.05V
  • 1.0±0.5s
Over Discharge Protection
  • Over discharge detection voltage
  • Over discharge detection delay time
  • Over discharge release voltage
  • Rated Operational Current
  • 2.3±0.08V
  • 100±50ms
  • 2.7±0.1V
  • ≤15A
Over Current Protection
  • Over Current Detection Current
  • Detection Delay Time
  • 30±5A
  • 10±5ms
Short Circuit Protection
  • Detection condition
  • Release condition
  • Exterior shot circuit
  • Cut short circuit
Interior resistance Main loop electrify resistance RDS≤55mΩ
Current Consumption Current consume in normal operation 50.0μA Max
Dimension (mm) 50*32*4mm

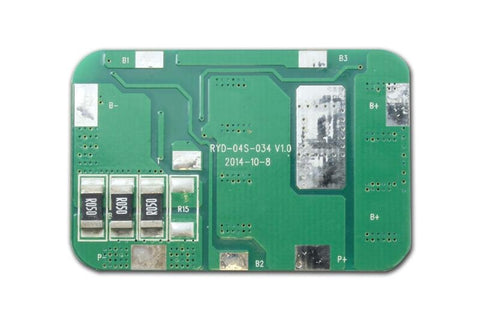

Connections:

  • B3：Connected to the third battery’s positive terminal
  • B2：Connected to the second battery’s positive terminal
  • B1：Connected to the first battery’s positive terminal
  • B+：Connected to the fourth battery’s positive terminal
  • B-：Connected to the battery’s negative terminal
  • P+：Connected to the battery’s output or the charger’s positive terminal
  • P-：Connected to the battery’s output or the charger’s negative terminal
  • T：No connected
