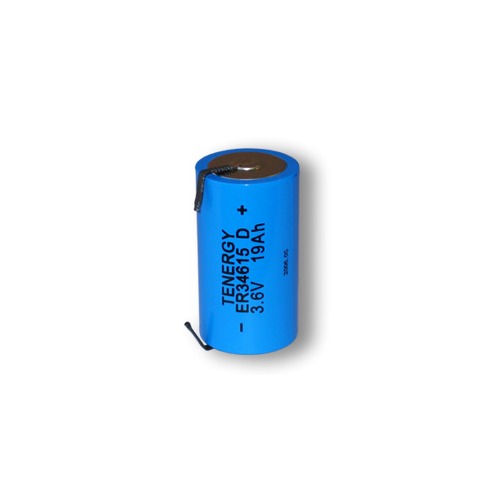

Shop the Primary High Energy Lithium Thionyl chloride Battery: D Size 3.6V 19 Ah (ER34615, SAFT LSH20 ) (non Rechargeable) (DGR). Review the manufacturer description and specifications below to confirm voltage, capacity, dimensions, connector and compatibility for your application.
Product details and specifications
product highlight
- Ultra High Energy Density D sized Primary Lithium Thionyl Chloride battery
- Perfect battery choice for powering wireless alarm, security systems, industrial meters, memory backup for computers, night vision equipment and other devices need long-lasting batteries.
- Lithium Thionyl Chloride battery technology provides the highest energy density, three times higher than Alkaline (Zinc Manganese Dioxide) batteries.
- Widest operating temperature range of -76F to + 185 F, ideal for rough security, industrial and field applications
- Ultra low self discharge at less than 1% per year at +68F, enabling an effective shelf life of 10 years.
- Non-flammable electrolyte.
- Compatible with Saft LS 33600 Lithium cell
- UL Recognized --- BBCV2.MH48285.
- Passed UN transportation tests (T1-T8).
Summarized Features and Benefits:
- Ultra High Energy Density D sized Primary Lithium Thionyl Chloride battery
- Perfect battery choice for powering wireless alarm, security systems, industrial meters, memory backup for computers, night vision equipment and other devices need long-lasting batteries.
- Lithium Thionyl Chloride battery technology provides the highest energy density, three times higher than Alkaline (Zinc Manganese Dioxide) batteries.
- Widest operating temperature range of -76F to + 185 F, ideal for rough security, industrial and field applications
- Ultra low self discharge at less than 1% per year at +68F, enabling an effective shelf life of 10 years.
- Non-flammable electrolyte.
- Compatible with Saft LS 33600 Lithium cell
- UL Recognized --- BBCV2.MH48285.
- Passed UN transportation tests (T1-T8).
Key Technical Data
- Chemistry Lithium-thionyl Chloride (Li-SOCl2) technology
- Nominal capacity: 19 Ah ( 19,000 mAh)
- Open circuit voltage (at +20C +68F) 3.66V
- Nominal voltage (at 1mA +20C +68F) 3.6V
- Max. Continuous current 200mA Max
- Pulse current Up to 400mA
- Storage (recommended) +30C +86 F max
- Operating temperature range -55C / +85C
- Diameter (max) 34.2mm(1.4 in)
- Height (max) 61.5mm(2.46 in)
- Typical weight 110g (3.6 oz)
Primary Applications For:
- Radio communication equipments and other military electronics
- Building alarms, monitoring and security systems
- Industrial and residential metering systems
- Emergency location transmitters and Beacons
- Global Positioning Systems (GPS)
- Computer or server memory back up
- LED lighting devices
- Sonobuoys
- Compatibale with and replaces SAFT LSH20 battery with over 40% more energy
Use Warning:
- This battery is a non-rechargeable battery. DO NOT CHARGE THE BATTERY!
- Do not use if the battery casing is damaged.
- Please discharge the battery for a few minutes with 100mA.
- Don't use different models of battery in series.
- This is not a high drain battery, please don't use it for the applications with discharging current > 200 mA!
- The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
